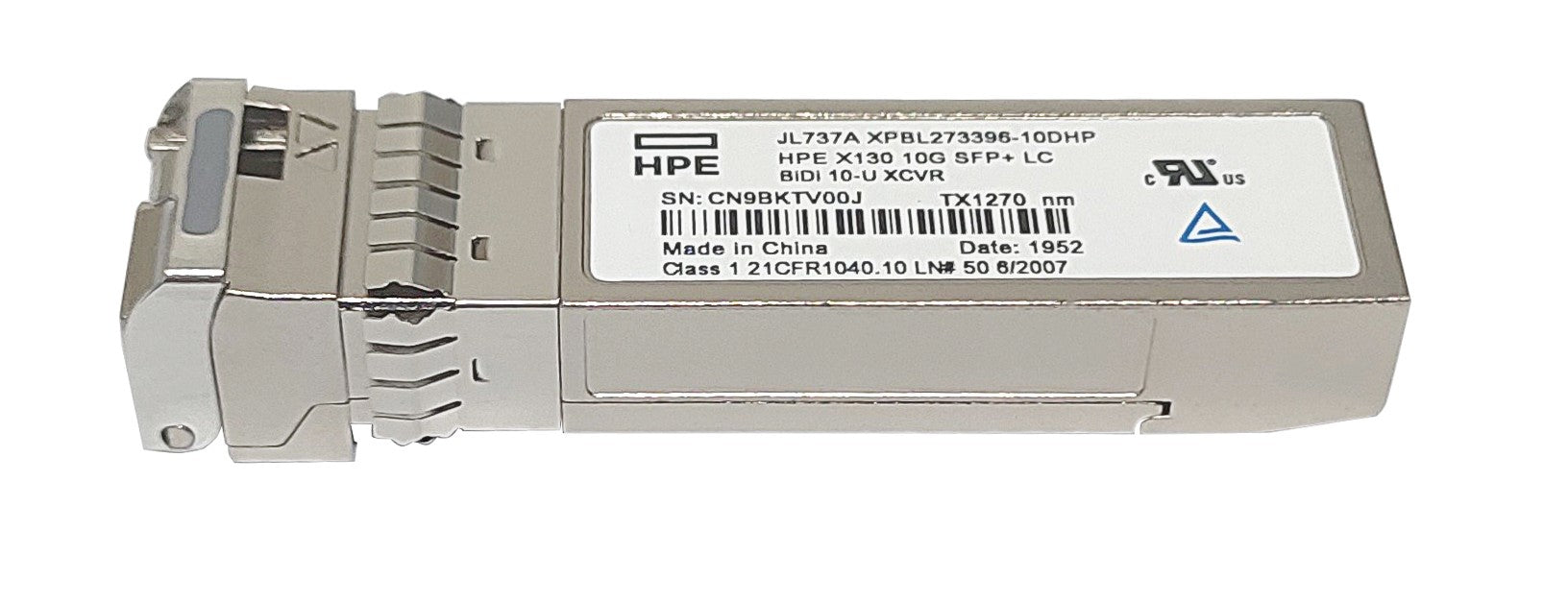

• Silver metallic Aruba JL737A 10G SFP+ BiDi transceiver with white label showing specs and serial number
1 1

Aruba

Aruba JL737A | X130 10G SFP+ BiDi Transceiver, 10km, Uplink 1270/1330nm

JL737A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The X130 10G SFP+ BiDi transceiver carries 10 Gbps over a single strand of single-mode fibre up to 10 km, using an LC simplex connector. It is the Uplink variant, transmitting at 1270 nm and receiving at 1330 nm. It suits campus backbone and metro uplinks where fibre strand count must be kept low and a single-fibre 10G link is needed.

The module uses the hot-pluggable SFP+ form factor with a 10.3125 Gbps data rate and 9/125 um single-mode fibre. It complies with IEEE 802.3 10GBASE-BR10 and the SFP+ MSA, and includes Digital Diagnostic Monitoring (DDM/DOM) for real-time performance tracking. It draws power from the host switch port and needs no licence or subscription.

BiDi links work in pairs. This Uplink module must be matched with the JL738A Downlink module (TX 1330 nm / RX 1270 nm) at the far end. It is listed as compatible with the HPE FlexFabric 12900 Switch Series and Comware-based FlexFabric platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Bidirectional (BiDi) transmission over a single fibre strand using WDM
- LC simplex connector reduces fibre infrastructure requirements
- Hot-pluggable SFP+ form factor
- Uplink variant that pairs with the JL738A Downlink module (TX 1330 nm / RX 1270 nm)
- Digital Diagnostic Monitoring (DDM/DOM) for real-time performance tracking
- SFP+ MSA and IEEE 802.3 10GBASE-BR10 compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP+ (Small Form-factor Pluggable Plus)
- Data rate: 10.3125 Gbps
- Connector type: LC simplex
- Wavelength: TX 1270 nm / RX 1330 nm (Uplink variant)
- Fibre type: Single-mode fibre (SMF) 9/125 um
- Maximum distance: 10 km
- Standard: IEEE 802.3 10GBASE-BR10
- Power consumption: under 1.5 W
- Operating temperature: 0 to 70 C (commercial)
- Diagnostics: Digital Diagnostic Monitoring (DDM/DOM)
- Weight: 100 g (0.22 lb)
- Compliance: SFP+ MSA, IEEE 802.3 10GBASE-BR10, RoHS, REACH, CE, FCC

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. It works as a standard SFP+ module and requires no licence or subscription.

Q: Which module do I need at the other end of the link?
A: The JL738A Downlink module (TX 1330 nm / RX 1270 nm). BiDi modules work in matched pairs, so the JL737A Uplink must connect to a JL738A.

Q: How is it powered?
A: It draws power from the host switch port through the SFP+ supply. It uses under 1.5 W and does not provide PoE.

Q: What fibre and connector does it use?
A: It uses a single strand of 9/125 um single-mode fibre with an LC simplex connector, over distances up to 10 km.

Q: Which switches is it compatible with?
A: It is listed as compatible with the HPE FlexFabric 12900 Switch Series and Comware-based FlexFabric platforms. Check the HPE QuickSpecs for the full supported-platform list.
