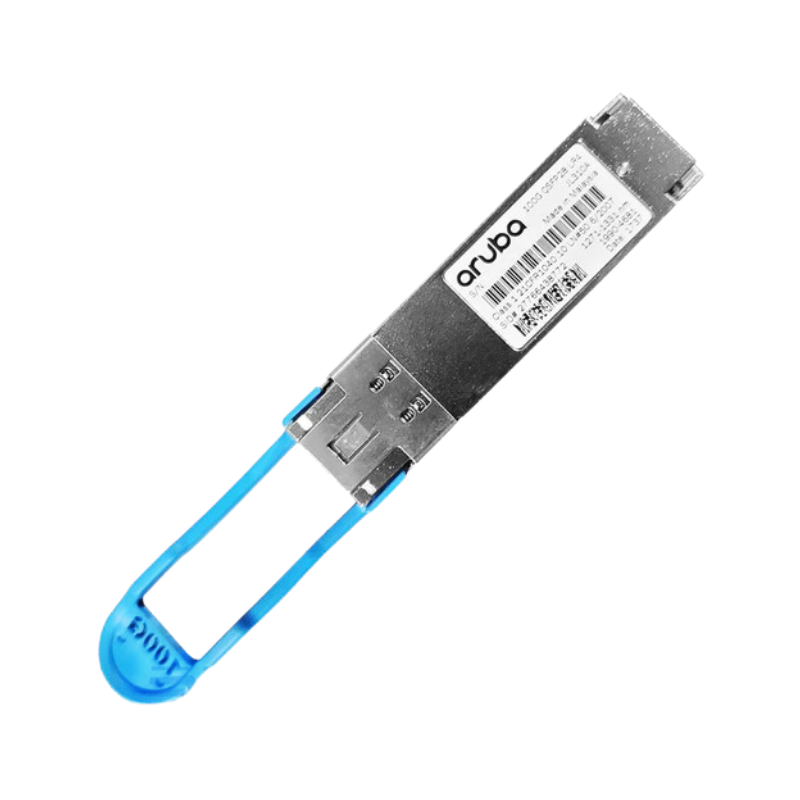

Aruba JL310A | 100G | QSFP28 | 100GBASE-LR4 SMF | 1295-1309 nm LAN-WDM | 10 km | LC duplex

Aruba JL310A | 100G | QSFP28 | 100GBASE-LR4 SMF | 1295-1309 nm LAN-WDM | 10 km | LC duplex

SKU:JL310A

Regular price $47,577.92 AUD
Regular price
$47,577.92 AUD
$47,577.92 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Title

Description

Long-reach 100G QSFP28 LR4 transceiver for duplex single-mode fiber with LC connectors, enabling 100GbE up to 10 km. Uses LAN-WDM wavelengths with integrated multiplexing and digital diagnostics. Ideal for campus backbones and metro access interconnects.

Features

- 100GBASE-LR4 for long-reach links up to 10 km
- LC duplex interface over standard SMF
- LAN-WDM wavelengths with integrated mux/demux
- Hot-swappable QSFP28 with DOM
- Ideal for campus and metro aggregation uplinks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can this LR4 be used with CWDM4 optics?
A: No. LR4 (LAN-WDM) is a different wavelength grid and link budget from CWDM4 and is not interoperable.

Q: Does it require FEC?
A: LR4 links up to 10 km typically do not require FEC; consult your platform’s recommendations.

Q: Can I break out a single LR4 into 4x25G optics?
A: No. LR4 is multiplexed over duplex SMF and does not support optical breakout.

Q: Which fiber type should I use?
A: Use standard single-mode fiber (G.652) with LC duplex connectors.

Q: Is DOM supported for monitoring?
A: Yes, DOM provides real-time monitoring of optical parameters and temperature.

Technical Specifications

- Data rate: 100 Gbps Ethernet
- Standard: 100GBASE-LR4
- Form factor: QSFP28
- Wavelengths (LAN-WDM): ~1295, 1300, 1304, 1309 nm
- Fiber/cable: G.652 single-mode, 2-strand
- Connector: LC duplex
- Reach: up to 10 km on SMF
- Optical architecture: 4x25G CWDM/LAN-WDM multiplexed
- Digital diagnostics (DDM/DOM): supported
- Hot-swappable: yes
- Use cases: campus core, metro access, data center interconnect
