Aruba

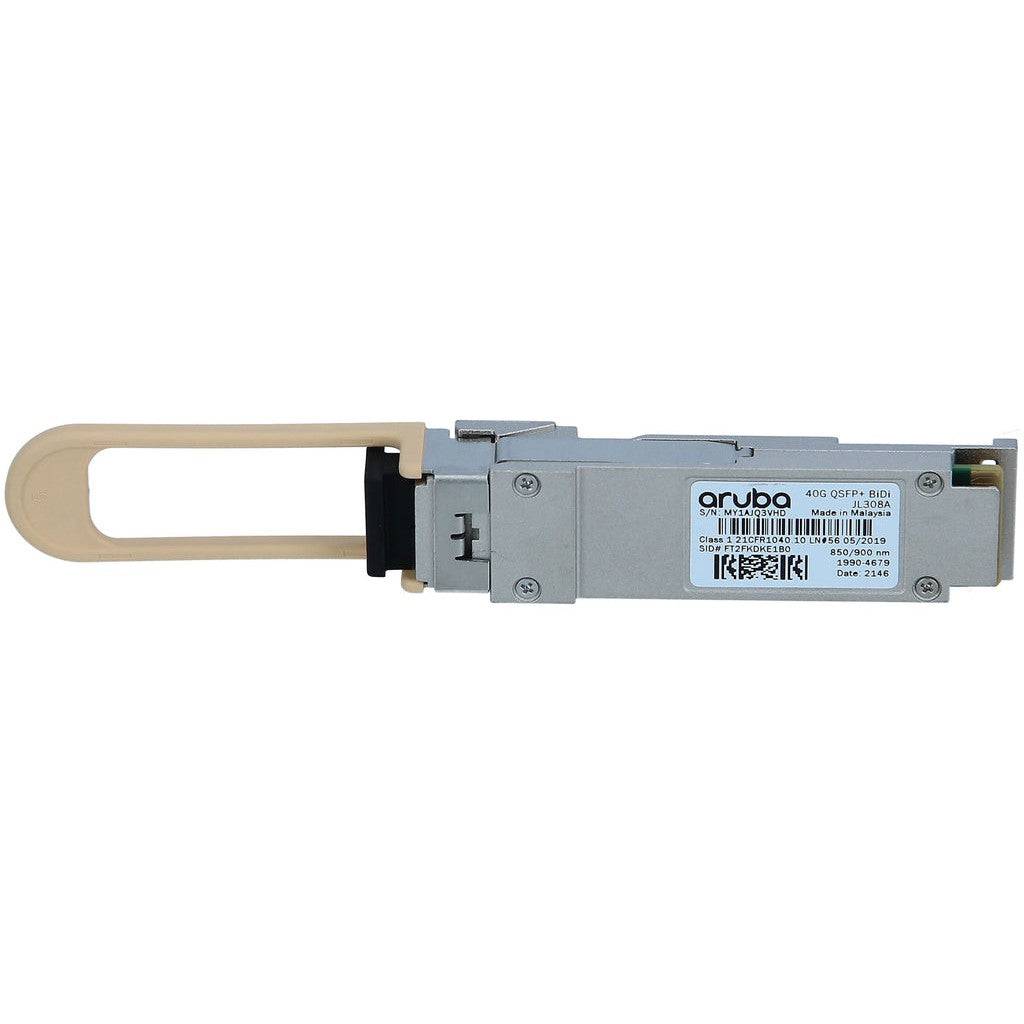

Aruba JL308A | 40G | QSFP+ | BiDi MMF | ~850 nm | 150 m (OM4), 100 m (OM3) | LC duplex

Aruba JL308A | 40G | QSFP+ | BiDi MMF | ~850 nm | 150 m (OM4), 100 m (OM3) | LC duplex

SKU:JL308A

Regular price $1,566.95 AUD
Regular price
$1,566.95 AUD
$1,566.95 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Title

Description

Compact 40G QSFP+ BiDi transceiver for duplex multimode fiber, enabling 40GbE over two strands with LC connectors instead of parallel MPO. Ideal for upgrading from 10G duplex plant while reducing fiber usage and patch-panel complexity. Hot-swappable with real-time digital diagnostics for simplified operations.

Features

- 40G over existing duplex MMF with LC, avoiding MPO infrastructure
- Up to 150 m on OM4 and 100 m on OM3
- Hot-swappable QSFP+ with DOM for simplified monitoring
- Cost-effective fiber utilization via bidirectional optics
- Standards-based QSFP+ MSA mechanical footprint

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Do I need MPO cabling for this 40G module?
A: No. This BiDi QSFP+ uses duplex LC on OM3/OM4 multimode fiber, not MPO.

Q: What distance can I expect on OM3 vs OM4?
A: Up to 100 m on OM3 and up to 150 m on OM4 under typical conditions.

Q: Is it interoperable with SR4 modules?
A: No. It must link to a matching 40G BiDi module at the far end.

Q: Does it support DOM/DDL readings?
A: Yes, digital diagnostics/DOM are supported for monitoring optical power and temperature.

Q: Can I break this out to 4x10G?
A: No. BiDi operates over duplex fiber and is not designed for 4x10G parallel breakout.

Technical Specifications

- Data rate: 40 Gbps Ethernet
- Form factor: QSFP+
- Optical type: Shortwave BiDi over MMF
- Wavelengths: Bidirectional in the ~850 nm window
- Fiber/cable: OM3/OM4 multimode, 2-strand
- Connector: LC duplex
- Reach: up to 150 m (OM4), up to 100 m (OM3)
- Lanes: 2 wavelengths over duplex fiber (BiDi), no parallel fibers required
- Digital diagnostics (DDM/DOM): supported
- Hot-swappable: yes
- Typical applications: 40GbE links over existing duplex MMF plant
- Compliance: QSFP+ MSA
