Aruba

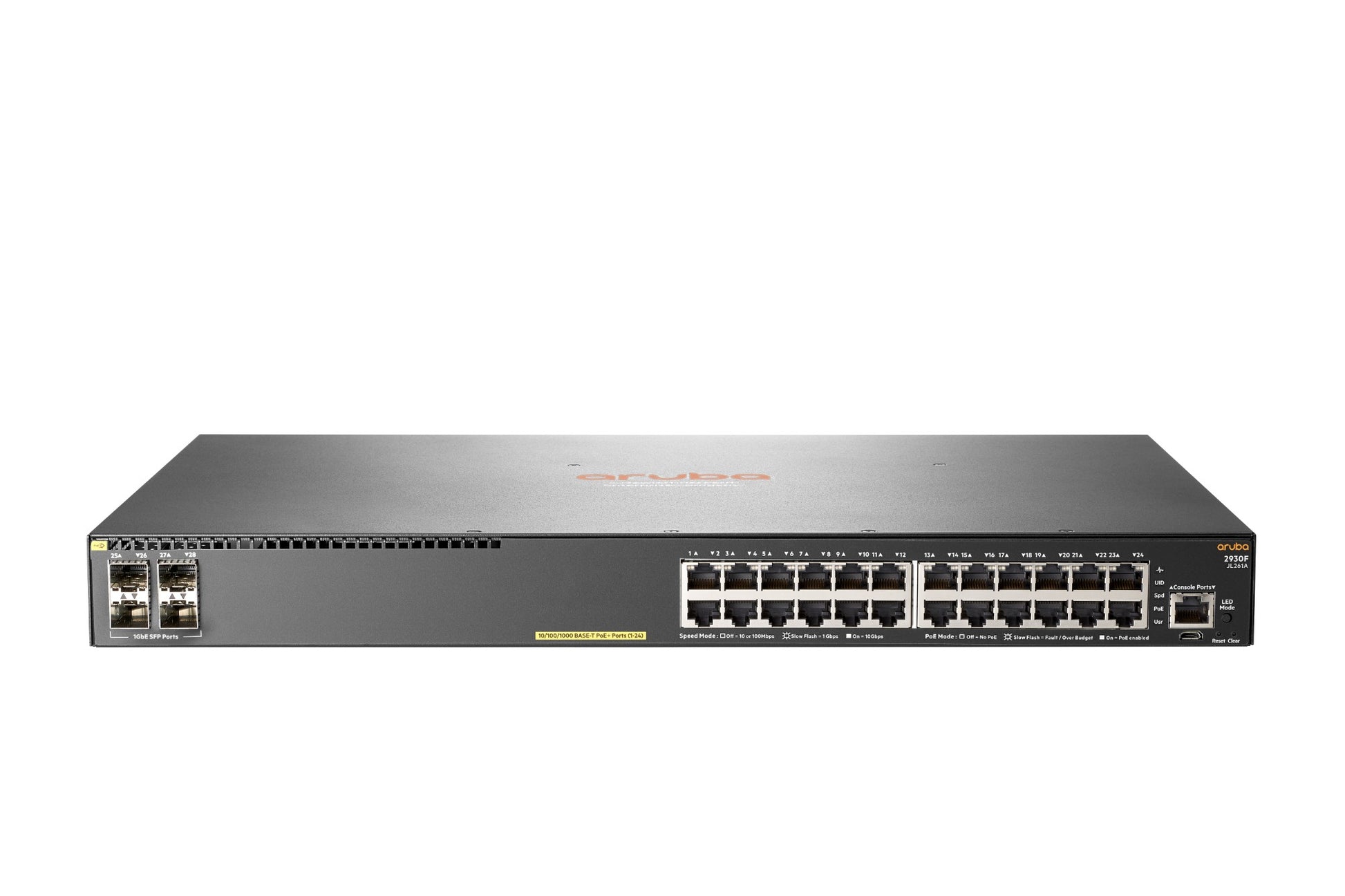

Aruba JL261A#ABG | 24x 1G | PoE+ (802.3at) ~370W | 4x 1G SFP uplinks | L3 static/RIP, standard (no subscription)

Aruba JL261A#ABG | 24x 1G | PoE+ (802.3at) ~370W | 4x 1G SFP uplinks | L3 static/RIP, standard (no subscription)

SKU:JL261A#ABG

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

Managed Layer 3 Gigabit access switch with 24 PoE+ ports to power endpoints and 4x 1G SFP uplinks for fiber. Delivers VLANs, QoS, and security with straightforward GUI/CLI and optional cloud management.

Features

- PoE+ power for APs, IP phones, and cameras
- Resilient access switching with integrated L3 routing
- Fiber-ready 1G SFP uplinks
- Comprehensive security and policy enforcement
- High-quality QoS for voice and video services
- Easy setup and lifecycle management, including zero-touch
- Energy-efficient design to reduce operational costs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is PoE+ supported on all access ports?
A: Yes, PoE+ (802.3at) is available on the access ports, subject to the overall ~370W power budget.

Q: Does it support 10G uplinks?
A: No, the four uplink slots are 1G SFP only.

Q: What Layer 3 functions are included?
A: Static routes and RIP/RIPng for inter-VLAN routing are included without additional licensing.

Q: How can I manage the switch?
A: Through Web GUI, SSH CLI, SNMP, REST API, and optionally via cloud-based Central or on-prem management.

Q: Can this model be physically stacked?
A: No physical VSF stacking on the 4x 1G SFP variants.

Technical Specifications

- Ports: 24x RJ-45 10/100/1000BASE-T (auto-negotiation, auto-MDI/MDI-X)
- Uplinks: 4x SFP 1GbE (1000BASE-X)
- Optics support: 1G SFP SR/LX; typical wavelengths 850/1310 nm; reach SR up to 550 m (OM3), LX up to 10 km (SMF); LC duplex connectors
- PoE: 802.3af/at PoE+ on access ports; total budget ~370W; up to 30W per port (class 0–4)
- Layer 3: IPv4/IPv6 static routing, RIP/RIPng; inter-VLAN routing
- Layer 2: 802.1Q VLANs (up to 4K), MSTP/RSTP/STP, LACP, LLDP/LLDP-MED
- Security: 802.1X, MAC auth, WebAuth, RADIUS/TACACS+, DHCP snooping, RA Guard, dynamic ARP inspection, ACLs
- QoS: 8 hardware queues, DSCP/802.1p, rate limiting, traffic shaping
- Management: Web GUI, CLI (SSH), SNMP v1/v2c/v3, REST API; zero-touch provisioning; optional cloud management via Central/AirWave
- Monitoring: sFlow, port mirroring, event/syslog
- Jumbo frames: up to 9K
- Energy: IEEE 802.3az Energy Efficient Ethernet, auto power-down on idle ports
- Hardware: 1U rack-mountable; internal AC PoE power supply; variable-speed fans
- Stacking: Hardware VSF stacking not supported on 4x 1G SFP variants
