Description

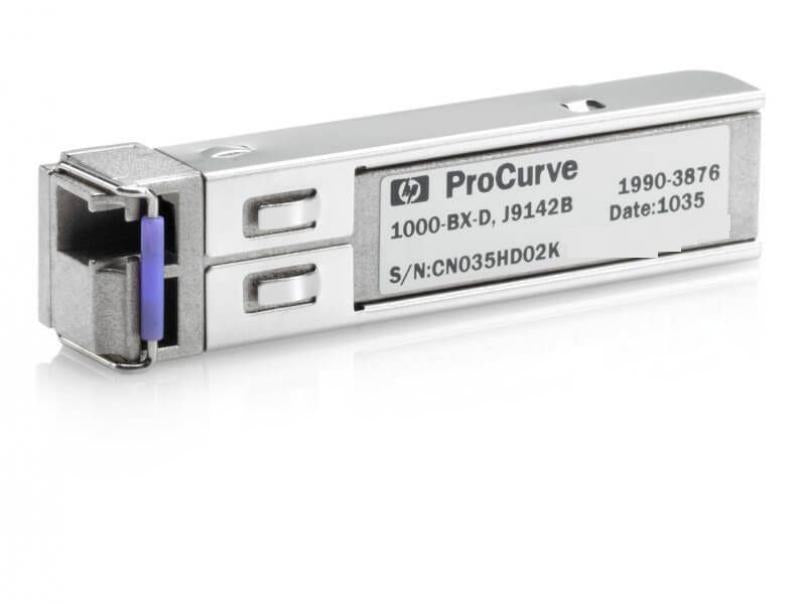

Single-fiber BiDi 1G SFP transceiver for long-reach links up to 10 km over single-mode fiber. This BX-D variant transmits at 1490 nm and receives at 1310 nm, using an LC simplex interface and pairing with the complementary BX-U at the far end.

Features

- Single-fiber BiDi design halves fiber usage
- 1490/1310 nm optics for 10 km reach
- LC simplex interface on OS1/OS2 fiber
- DDM/DOM for proactive monitoring
- MSA-compliant 1G SFP for easy deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Do I need a matching transceiver at the other end?
A: Yes. Pair this BX-D with a BX-U (1310 TX / 1490 RX) module on the far end.

Q: Can I use existing duplex fiber?
A: This module is designed for single-fiber (simplex) links; it uses one strand with an LC simplex connector.

Q: Does it support DDM/DOM?
A: Yes, digital diagnostics are supported for link monitoring.

Q: What is the maximum distance?
A: Up to 10 km over single-mode fiber, subject to optical budget and link conditions.

Q: Is it hot-swappable?
A: Yes, it can be inserted and removed without powering down the device.

Technical Specifications

- Data rate: 1 Gigabit Ethernet
- Form factor: SFP (BiDi)
- Ethernet standard: 1000BASE-BX10-D
- Wavelengths: 1490 nm TX / 1310 nm RX
- Fiber type: Single-mode (OS1/OS2), single strand
- Connector: LC simplex
- Max reach: up to 10 km
- Digital diagnostics: DDM/DOM supported (SFF-8472)
- Compliance: SFP MSA, IEEE 802.3ah
- Requires complementary unit: BX-U (1310 TX / 1490 RX) at remote end
