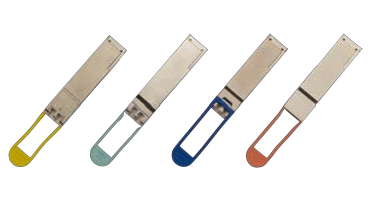

Arista QSFP-40G-PLRL4 | 40G QSFP+ | 40GBASE-PLRL4 (PSM4) | 1310nm | 1km SMF | MPO/MTP-12 | 4x10G breakout

SKU:QSFP-40G-PLRL4

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Parallel single‑mode 40G QSFP+ transceiver for up to 1 km over OS2 SMF using an MPO/MTP‑12 interface. Supports 4x10G breakout to LC via an MPO‑to‑4xLC harness when the switch/port supports breakout mode. Ideal for spine/leaf or aggregation links that require longer reach on single‑mode without duplex LR4.

Features

- 1 km single-mode reach with parallel 1310 nm lanes
- MPO/MTP-12 interface enables high-density cabling
- Supports 4x10G breakout for flexible aggregation
- Low power and hot-pluggable QSFP+ form factor
- Standards-based interoperability (MSA/PSM4-aligned)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Can this module break out to 4x10G?
A: Yes, with an MPO-to-4xLC harness and a switch/port that supports 4x10G breakout.

Q: What cable/connector do I need?
A: Use an MPO/MTP-12 male trunk; the module has an MPO-12 female interface.

Q: Is this the same as LR4 (duplex LC)?
A: No, this is a parallel single-mode module using MPO-12, not duplex LC.

Q: Which fiber type is recommended?
A: OS2 single-mode fiber for links up to 1 km.

Q: Will it interoperate with other vendors?
A: It follows MSA/PSM4 practices, but device vendor coding policies vary—check platform compatibility.

Technical Specifications

- Data rate: 40GbE (4x10G lanes)
- Form factor: QSFP+
- Optical standard: 40GBASE-PLRL4 (PSM4, LR-Lite, MSA)
- Wavelength: 1310 nm (4 parallel lanes)
- Connector: MPO/MTP-12 (female)
- Fiber type: Single-Mode (OS2)
- Max reach: up to 1 km
- Breakout: supports 4x10G via MPO to 4xLC harness (switch dependent)
- Digital diagnostics (DDM/DOM): supported
- Operating temperature: 0°C to 70°C
- Hot-pluggable: yes
- Compliance: MSA, RoHS
