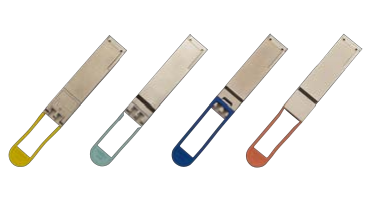

Arista QSFP-100G-XSR4 | 100G QSFP28 | 100GBASE-XSR4 | 850 nm | Parallel MMF MPO-12 | OM3 150m / OM4 300m

SKU:QSFP-100G-XSR4

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

High‑density 100G QSFP28 extended‑SR (XSR4) transceiver for parallel multimode fiber. Delivers four 25G lanes over MPO‑12 with extended reach versus SR4: up to 150 m on OM3 and 300 m on OM4. Ideal for short‑to‑mid fabric links in spine/leaf and aggregation where parallel MMF cabling is available.

Features

- Extended SR reach: up to 300 m on OM4
- Parallel 4x25G lanes for low-latency 100G
- MPO-12 interface for high-density cabling
- Hot-swappable with DOM for easy monitoring
- Standards-compliant interoperability on SR4-class links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this module support 4x25G breakout?
A: Yes—on hosts that enable breakout, it can fan out to 4x25G SR lanes using an MPO‑to‑4xLC harness and compatible 25G SR endpoints.

Q: Which cable and connector does it require?
A: Use OM3/OM4 multimode fiber with an MPO‑12 (MTP) connector. Observe polarity and clean connectors before mating.

Q: Is it compatible with standard SR4 optics from other vendors?
A: Yes, it interoperates with compliant 100G SR4/XSR4 modules over parallel MMF when link budgets and distances match.

Q: Is FEC required?
A: Not typically for the stated reaches; enabling host FEC can improve margin on challenging links.

Technical Specifications

- Form factor: QSFP28
- Port speed: 100G Ethernet (4x25G NRZ lanes)
- Optical standard: 100GBASE-XSR4 (extended SR4)
- Wavelength: 850 nm center (4 lanes)
- Fiber / connector: Parallel MMF, MPO-12 (MTP)
- Maximum reach: 150 m (OM3), 300 m (OM4)
- Digital diagnostics (DOM/DDM): Supported
- Hot-swappable: Yes
- Operating temperature: 0°C to 70°C (commercial)
- Interoperability: Works with 100G SR4/XSR4 optics over parallel MMF at matching specs
