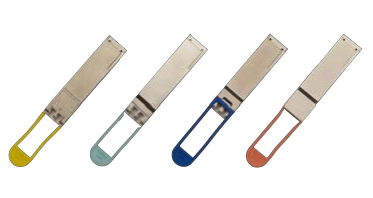

• Four colorful Arista QSFP-100G-XCWDM4 100G QSFP28 CWDM4 modules
1 1

Arista

Arista QSFP-100G-XCWDM4 | 100G QSFP28 Transceiver, XCWDM4, 10km SMF, LC

QSFP-100G-XCWDM4

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 100GBASE-XCWDM4 QSFP28 transceiver delivers 100G Ethernet over duplex single-mode fibre with an LC connector, using four 25G CWDM lanes in the 1271-1331 nm range. It supports link lengths up to 10 km, extending beyond the 2 km reach of the standard QSFP-100G-CWDM4 optic, while remaining interoperable with 100GBASE-CWDM4 optics at up to 2 km. Dual rate 100G/40G operation makes it suited to data centre interconnects, campus backbones and metro aggregation links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 10 km link lengths over duplex single-mode fibre
- Interoperates with 100GBASE-CWDM4 optics
- 100G/40G dual rate operation
- Compliant with the 100G CWDM4 MSA
- QSFP28 SFF-8636 management interface

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 100G QSFP (QSFP28)
- Standard: 100GBASE-XCWDM4, 4 x 25G CWDM lanes
- Wavelength range: 1271-1331 nm
- Reach: up to 10 km over duplex single-mode fibre (G.652)
- Connector: LC duplex
- Operation: dual rate 100G/40G
- Tx power: -6.5 to +2.5 dBm per lane
- Rx power: -13 to +2.5 dBm per lane
- Maximum power consumption: 3.5W
- Interoperable with 100GBASE-CWDM4 (QSFP-100G-CWDM4) up to 2 km

FAQs

Q: What is the maximum reach of this transceiver?
A: It supports links up to 10 km over duplex single-mode fibre (G.652) using an LC duplex connector.

Q: How does it differ from the QSFP-100G-CWDM4?
A: The XCWDM4 extends the reach to 10 km, whereas the standard QSFP-100G-CWDM4 is specified for 2 km. Both use four 25G CWDM lanes in the 1271-1331 nm range.

Q: Can it link to a 100GBASE-CWDM4 optic at the other end?
A: Yes. It interoperates with 100GBASE-CWDM4 optics, with the link limited to 2 km when paired with a CWDM4 module.

Q: Does it support 40G operation?
A: Yes. It is a dual rate 100G/40G module, subject to host port and software support.

Q: What fibre type and connector does it use?
A: It uses duplex single-mode fibre with an LC duplex connector.
