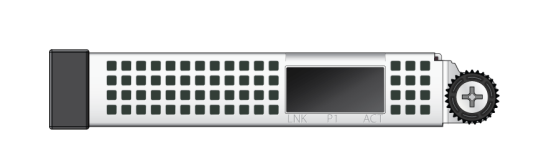

• Silver-colored Arista NIM-1QC AWE-7200R 100G QSFP28 module with black screen and gear knob showing back side ports
1 1

Arista

Arista NIM-1QC | AWE-7200R 1x 100G QSFP28 Module, OCP 3.0 SFF

NIM-1QC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NIM-1QC is a single-port 100GbE QSFP28 network interface module for the Arista AWE-7200R Series of Enterprise WAN routers. It adds high-speed connectivity to a router without replacing the chassis, which suits aggregation, WAN edge, transit hub and cloud edge sites that need a 100G uplink.

The module provides 1x 100GbE QSFP28 port in an OCP 3.0 compliant Short Form Factor (SFF) design, and it is hot-swappable so it can be installed or replaced without taking the chassis offline. It is powered from the host router through the NIM slot, so no separate power supply is needed. The card is managed through Arista EOS, consistent with Arista switching and routing platforms.

The NIM-1QC fits the NIM slots of the AWE-7230R-4TX-4S-F (2 slots) and the AWE-7250R-16S-F (4 slots), and is also listed as supported on the AWE-5310-F and AWE-5510-F. The QSFP28 port accepts 100G transceivers, DACs and AOCs. It is the 100G counterpart of the NIM-4S card, which provides 4x SFP+ 10/1GbE ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds a single 100GbE QSFP28 port to AWE-7200R Series routers
- OCP 3.0 standard compliant design
- Hot-swappable for live installation or replacement without chassis downtime
- Modular NIM form factor allows incremental expansion without replacing the chassis
- QSFP28 port accepts 100G transceivers, DACs and AOCs
- Managed through Arista EOS, consistent with Arista switching and routing platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port: 1x 100GbE QSFP28
- Form factor: Short Form Factor (SFF) Network Interface Module
- Standard: OCP 3.0 compliant
- Hot-swap: Yes
- Card manufacturer: Intel
- Management OS: Arista EOS
- Power: Supplied by the host router chassis through the NIM slot
- Compatible chassis: AWE-7230R-4TX-4S-F (2 NIM slots)
- Compatible chassis: AWE-7250R-16S-F (4 NIM slots)
- Also supported on: AWE-5310-F (2 NIM slots), AWE-5510-F (4 NIM slots)
- Transceiver support: QSFP28 100G transceivers, DACs and AOCs

FAQs

Q: Which Arista routers does the NIM-1QC fit?
A: It fits the NIM slots of the AWE-7230R-4TX-4S-F, which has 2 slots, and the AWE-7250R-16S-F, which has 4 slots. It is also listed as supported on the AWE-5310-F and AWE-5510-F.

Q: Does the NIM-1QC need its own licence or power supply?
A: No separate power supply is needed because it is powered from the host router through the NIM slot. No licence is specified for the module itself. Software features depend on the EOS licence of the host AWE router.

Q: Can I install or replace it while the router is running?
A: Yes. The NIM-1QC is hot-swappable, so it can be installed or replaced without taking the chassis offline.

Q: What can I connect to the 100G port?
A: The QSFP28 port accepts 100G QSFP28 transceivers, DACs and AOCs. Check the Arista Transceiver Guide for the supported part numbers.

Q: How does it differ from the NIM-4S?
A: The NIM-1QC provides a single 100GbE QSFP28 port, while the NIM-4S provides 4x SFP+ 10/1GbE ports. Choose the NIM-1QC for a 100G uplink.
