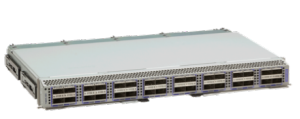

• Arista DCS-7320X-32C-LC silver server rack with 32x 100GbE QSFP28 slots
1 1

Arista

Arista DCS-7320X-32C-LC | 7320X 32-Port 100G QSFP100 Line Card

DCS-7320X-32C-LC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 7320X-32C is a 32-port QSFP100 line card for the Arista 7320X Series modular data centre switches. It suits large leaf and spine networks, collapsed spine designs and scale-out east-west traffic, and gives a clear path when migrating from 10/40G to 25/100G.

Every QSFP100 port can run as 1x100GbE or 1x40GbE, or break out to 4x10GbE, 4x25GbE or 2x50GbE with breakout cables or optics. A single card therefore provides 32 x 100GbE interfaces, or up to 128 x 10GbE or 25GbE, or 64 x 50GbE. The card delivers up to 6.4 Tbps with a 32MB packet buffer and supports up to 104K IPv4 host routes. Nominal power draw is 219W per card, supplied by the chassis. It runs Arista EOS and is a hot-swappable module.

This line card fits the 7324X 4-slot and 7328X 8-slot chassis only. A fully populated 7328X holds 8 line cards for 256 x 100G ports, while the 7324X holds 4 for 128 x 100G ports. Ports accept QSFP28 and QSFP+ transceivers and cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Flexible QSFP100 ports supporting 100G, 50G, 40G, 25G and 10G with breakout
- Built on the same system-on-chip as the 7060X and 7260X series
- Runs Arista EOS with Zero Touch Provisioning, LANZ and VM Tracer
- Front-to-rear airflow for data centre cooling
- Supports 64-way MLAG, ECMP and VXLAN
- Hot-swappable modular design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x QSFP100 (QSFP28)
- 100GbE interfaces: 32
- 40GbE interfaces: 32 (QSFP+)
- 10GbE interfaces: up to 128 with breakout
- 25GbE interfaces: up to 128 with breakout
- 50GbE interfaces: up to 64 with breakout
- Port speed modes per port: 1x100GbE, 1x40GbE, 4x10GbE, 4x25GbE or 2x50GbE
- Performance per line card: up to 6.4 Tbps
- Packet buffer: 32MB
- Maximum IPv4 host routes: 104K
- Nominal power: 219W
- Typical power per 100GbE port: under 17W in a fully loaded system
- Latency: below 2 usec (7320X Series)
- Compatible chassis: 7324X (4-slot) and 7328X (8-slot)
- 7328X capacity: 8 line cards, 256 x 100G ports, 50 Tbps
- 7324X capacity: 4 line cards, 128 x 100G ports, 25 Tbps

FAQs

Q: Which chassis does this line card fit?
A: It fits the Arista 7320X Series chassis only, which are the 7324X 4-slot and the 7328X 8-slot models.

Q: Can the ports run at speeds other than 100GbE?
A: Yes. Each QSFP100 port supports 1x100GbE or 1x40GbE, and with breakout cables or optics it can run 4x10GbE, 4x25GbE or 2x50GbE.

Q: What transceivers and cables do the ports accept?
A: Each port accepts QSFP28 (100GbE) and QSFP+ (40GbE) transceivers and cables, along with breakout cables or optics for 10, 25 and 50GbE.

Q: How much power does the line card draw?
A: Nominal power is 219W per card. Power is supplied by the chassis, and the 7320X Series typically draws under 17W per 100GbE port in a fully loaded system.

Q: How many 100G ports can I get from a fully populated chassis?
A: A 7328X with 8 of these line cards provides 256 x 100G ports. A 7324X with 4 provides 128 x 100G ports.
