Arista

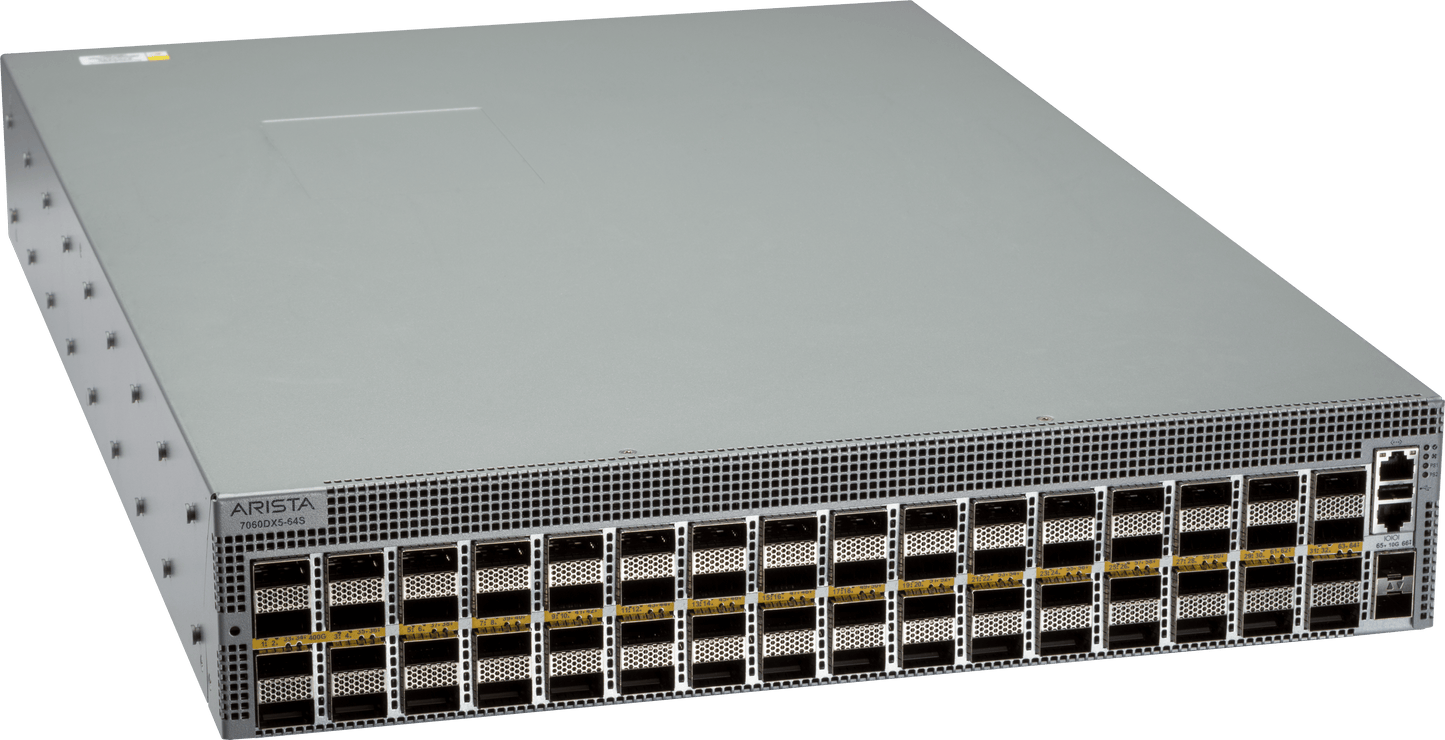

Arista DCS-7060DX5-32-R | 7060X5 32-Port 400G Switch, 12.8Tbps, 1RU Data Center

DCS-7060DX5-32-R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Arista DCS-7060DX5-32-R is a high-performance 1RU data center switch delivering 32 ports of 400G QSFP-DD connectivity with 12.8Tbps throughput and ultra-low 825ns latency. Designed for hyperscale cloud, AI/ML, and high-performance computing environments, this switch features rear-to-front airflow, redundant hot-swappable power supplies and fans, and runs Arista EOS for advanced automation and monitoring. Ideal for leaf or spine deployments requiring flexible port configurations from 400GbE down to 100GbE.

Features

Wire-speed Layer 2 and Layer 3 switching with full routing capabilities
- 128-way ECMP for optimal load distribution
- VXLAN routing and bridging with hardware VTEP support
- BGP, OSPF, IS-IS, and multicast routing protocols
- 802.1Q VLAN support with up to 4094 VLANs
- 802.1w Rapid Spanning Tree Protocol (RSTP)
- 802.3ad Link Aggregation (LACP) with up to 64 ports per channel
- Advanced traffic management with dynamic buffer allocation
- Arista Latency Analyzer (LANZ) for real-time congestion monitoring
- Zero Touch Provisioning (ZTP) for automated deployment
- CloudVision integration for network-wide automation and telemetry
- Advanced security features: MACsec encryption, 802.1X, ACLs
- sFlow, NetFlow, and IPFIX for traffic analysis
- Hitless speed changes from 400G to 100G without downtime
- Hot-swappable redundant power supplies and fan modules
- Comprehensive CLI, RESTCONF, and NETCONF management APIs
- Support for custom EOS extensions and containerized applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

32x 400G QSFP-DD ports
- 1x 10G SFP+ management port
- Flexible port speeds: 400GbE, 200GbE, 100GbE, 50GbE, 25GbE, 10GbE
- Throughput: 12.8Tbps (25.6Tbps full duplex)
- Packet forwarding rate: 5.3 Bpps
- Latency: 825ns (cut-through mode)
- Packet buffer memory: 57MB shared dynamic buffer
- CPU: Multi-core x86 processor
- System memory: 16GB RAM
- Flash storage: 120GB
- Management: 1x 10/100/1000 Ethernet, 1x RS-232 console (RJ-45), 1x USB
- Hot-swappable components: 2x AC power supplies (1+1 redundant), 3x fans (N+1 redundant)
- Airflow: Rear-to-front
- Power consumption: 289W typical, 793W maximum
- Form factor: 1RU rack-mountable
- Operating temperature: 0°C to 40°C
- Standards compliance: Layer 2/3 switching, VXLAN, EVPN, OSPF, BGP, ECMP

FAQs

Q: What port configurations does the DCS-7060DX5-32-R support?
A: The switch supports flexible breakout configurations: 32x 400GbE, 64x 200GbE, 128x 100GbE, 128x 50GbE, 128x 25GbE, or 128x 10GbE plus one management SFP+ port. All QSFP-DD ports support industry-standard optics and DAC/AOC cables.

Q: Is this switch suitable for AI and machine learning workloads?
A: Yes, the 7060DX5-32 is optimized for AI/ML environments with ultra-low latency of 825ns, high-bandwidth 400G ports, advanced load balancing, RDMA support, and Arista EOS features like Cluster Load Balancing (CLB) for optimal link utilization in GPU clusters.

Q: What software licensing is required?
A: The base Arista EOS software is included. Optional licenses include EOS Enhanced (E) for full routing, FLX-Lite for advanced features like EVPN and VXLAN, and Monitoring & Automation licenses for Zero Touch Provisioning, LANZ, API, and OpenFlow capabilities.

Q: Can this switch be deployed in both leaf and spine roles?
A: Yes, the DCS-7060DX5-32-R is a multi-role platform suitable for both leaf (providing dense 400G server connectivity) and spine (aggregating traffic in large-scale data centers) deployments, with wire-speed layer 2 and layer 3 forwarding.

Q: What is the difference between the -R and -F models?
A: The DCS-7060DX5-32-R features rear-to-front airflow, while the DCS-7060DX5-32-F has front-to-rear airflow. Select the airflow direction based on your data center hot/cold aisle configuration to ensure proper cooling and efficiency.
