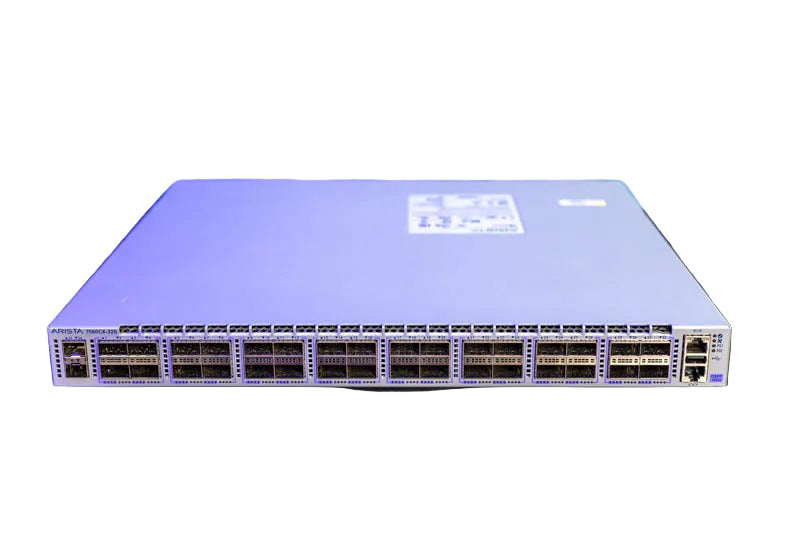

• Purple arista 7508-48x network switch with multiple ports and sleek rectangular design shown from the back side
  • Arista DCS-7060CX-32S-F 32x100G QSFP switch with dual AC PSUs
1 2

Arista

Arista DCS-7060CX-32S-F | 7060X 32x100G QSFP100 Switch, Front-to-Rear, 2x AC PSU

DCS-7060CX-32S-F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 7060CX-32S is a fixed-configuration 1RU data centre switch with 32 QSFP100 ports and 2 SFP+ ports, delivering wire-speed Layer 2 and Layer 3 forwarding at 6.4Tbps throughput. Each QSFP port supports 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE, making it well suited to top-of-rack leaf or fixed-configuration spine roles. This -F variant uses front-to-rear airflow and ships with dual AC power supplies (2x C13-C14 cords) for 1+1 redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Flexible 40GbE and 100GbE support with quad 10GbE or 25GbE breakout
- All QSFP ports can operate in any mode without limitation
- Typical power under 7W per 100GbE port
- Over 93% efficient power supplies
- Hot-swappable redundant power supplies and fans
- Tool-less rails for simple installation
- Optional licences: LIC-FIX-2-E (Enhanced L3), LIC-FIX-2-V (Virtualisation), LIC-FIX-2-Z (Monitoring and provisioning)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x QSFP100 ports (100GbE) plus 2 x SFP+ (10GbE) ports
- Each QSFP port supports 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE
- 6.4 Tbps overall throughput
- Up to 3.3 Bpps forwarding rate
- Latency as low as 450ns in cut-through mode
- 16 MB shared dynamically allocated packet buffer
- 1RU form factor, 48.3 x 4.4 x 40.6 cm, 9.5 kg
- Typical/max power draw 220 W / 410 W
- Supported power supplies: PWR-500AC / PWR-500-DC
- 1+1 redundant hot-swappable power supplies, N+1 redundant hot-swappable fans
- Front-to-rear airflow
- Operating system: Arista EOS
- PoE: none

FAQs

Q: What airflow direction does the DCS-7060CX-32S-F use?
A: The -F suffix denotes front-to-rear airflow, so cool air enters at the port side and exhausts at the rear. Choose this variant when the switch ports face the cold aisle.

Q: Can the QSFP100 ports break out to lower speeds?
A: Yes. Each QSFP port supports 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE, and all QSFP ports can operate in any mode without limitation.

Q: Does this switch support PoE?
A: No. It is a data centre switch with no PoE capability.

Q: Which power supplies are compatible?
A: The switch supports PWR-500AC and PWR-500-DC power supplies in a 1+1 redundant hot-swappable configuration. This SKU is supplied with dual AC power supplies.

Q: Which optional software licences are available?
A: Optional licences include LIC-FIX-2-E (Enhanced L3), LIC-FIX-2-V (Virtualisation) and LIC-FIX-2-Z (Monitoring and provisioning).
