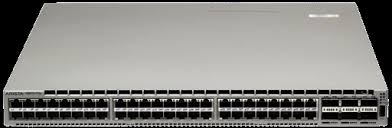

• Arista DCS-7050TX-64-D silver switch with black ports and buttons
1 1

Arista

Arista DCS-7050TX-64-D# | 7050TX 48-Port 10G-T Switch, 4x 40G QSFP+, SSD

DCS-7050TX-64-D#

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050TX-64 is a 1RU data centre leaf switch from the 7050X series, built for top-of-rack deployments with 10GBASE-T servers. It provides 48 auto-negotiating 100M/1G/10GBASE-T RJ45 ports and four 40GbE QSFP+ uplinks for leaf-spine designs using L3 ECMP or L2 MLAG, and runs Arista EOS.

This DCS-7050TX-64-D# variant includes the built-in 120 GB SSD and is a bare chassis, so fans and power supplies must be ordered separately. The switch delivers 1.28 Tbps throughput and a 960 Mpps forwarding rate, with 3 microsecond latency from the RJ45 ports to the uplinks and a 12 MB dynamic packet buffer. The quad-core x86 CPU is paired with 4 GB of RAM and 4 GB of flash. There is no PoE. Typical and maximum power draw is 315 W and 387 W.

The chassis takes two hot-swap PWR-500AC or PWR-500-DC power supplies in 1+1 redundancy and four N+1 FAN-7000 fan modules with reversible airflow. The QSFP+ ports accept 40GBASE-SR4, XSR4, LR4, ER4, LRL4, PLR4, PLRL4, UNIV and SRBD optics, 40GBASE-AOC cables, 40GBASE-CR4 DAC cables and QSFP+ to 4xSFP+ breakout cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Arista EOS with a single binary image, Linux shell access and Python, bash and C++ extensibility
- VXLAN gateway and bridging with VM Tracer integration
- LANZ latency analyser for microburst detection
- Zero Touch Provisioning, eAPI, OpenFlow and DirectFlow
- 64-way ECMP and 64-way MLAG for leaf-spine designs
- Dynamic Buffer Allocation of up to 6.7 MB of the 12 MB buffer to a single port
- Built-in SSD for logging and data capture

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 100M/1G/10GBASE-T (RJ45)
- Uplinks: 4 x 40GbE QSFP+
- Throughput: 1.28 Tbps
- Forwarding rate: 960 Mpps
- Latency (RJ45 to uplinks): 3 microseconds
- Packet buffer: 12 MB (dynamic buffer allocation)
- CPU: Quad-core x86
- System memory: 4 GB
- Flash storage: 4 GB
- SSD storage: 120 GB
- Management port: 1 x 10/100/1000
- Serial port: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power supply bays: 2 hot-swap (1+1 redundant)
- Fan bays: 4 hot-swappable (N+1 redundant)
- Airflow: Reversible, depending on fan and PSU modules
- Typical/max power draw: 315 W / 387 W
- Dimensions (W x H x D): 48.3 x 4.4 x 40.2 cm
- Weight: 8.6 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 70 C
- Relative humidity: 5 to 95%
- MAC addresses: 32K base mode / 288K UFT modes
- IPv4 unicast routes: 16K base mode / 144K UFT modes
- ECMP: 64-way, 1K groups

FAQs

Q: Does this switch include fans and power supplies?
A: No. The DCS-7050TX-64-D# is a bare chassis, so the four fan modules and the power supplies must be sourced separately. The chassis takes two hot-swap PWR-500AC or PWR-500-DC supplies and FAN-7000 fan modules.

Q: Which licences are available for this switch?
A: It runs Arista EOS. Optional add-on licences cover Enhanced L3 (LIC-FIX-2-E), Virtualization (LIC-FIX-2-V) and Monitoring and provisioning (LIC-FIX-2-Z).

Q: Does it support PoE?
A: No. This is a non-PoE data centre switch. Typical power draw is 315 W and maximum is 387 W.

Q: What can I connect to the QSFP+ ports?
A: The four QSFP+ ports support 40GBASE-SR4, XSR4, LR4, ER4, LRL4, PLR4, PLRL4, UNIV and SRBD optics, 40GBASE-AOC cables, 40GBASE-CR4 DAC cables and QSFP+ to 4xSFP+ breakout cables.

Q: What does the -D# variant add over other 7050TX-64 SKUs?
A: The -D# variant includes the built-in 120 GB SSD for logging and data capture, and is supplied as a bare chassis without fans or power supplies.
