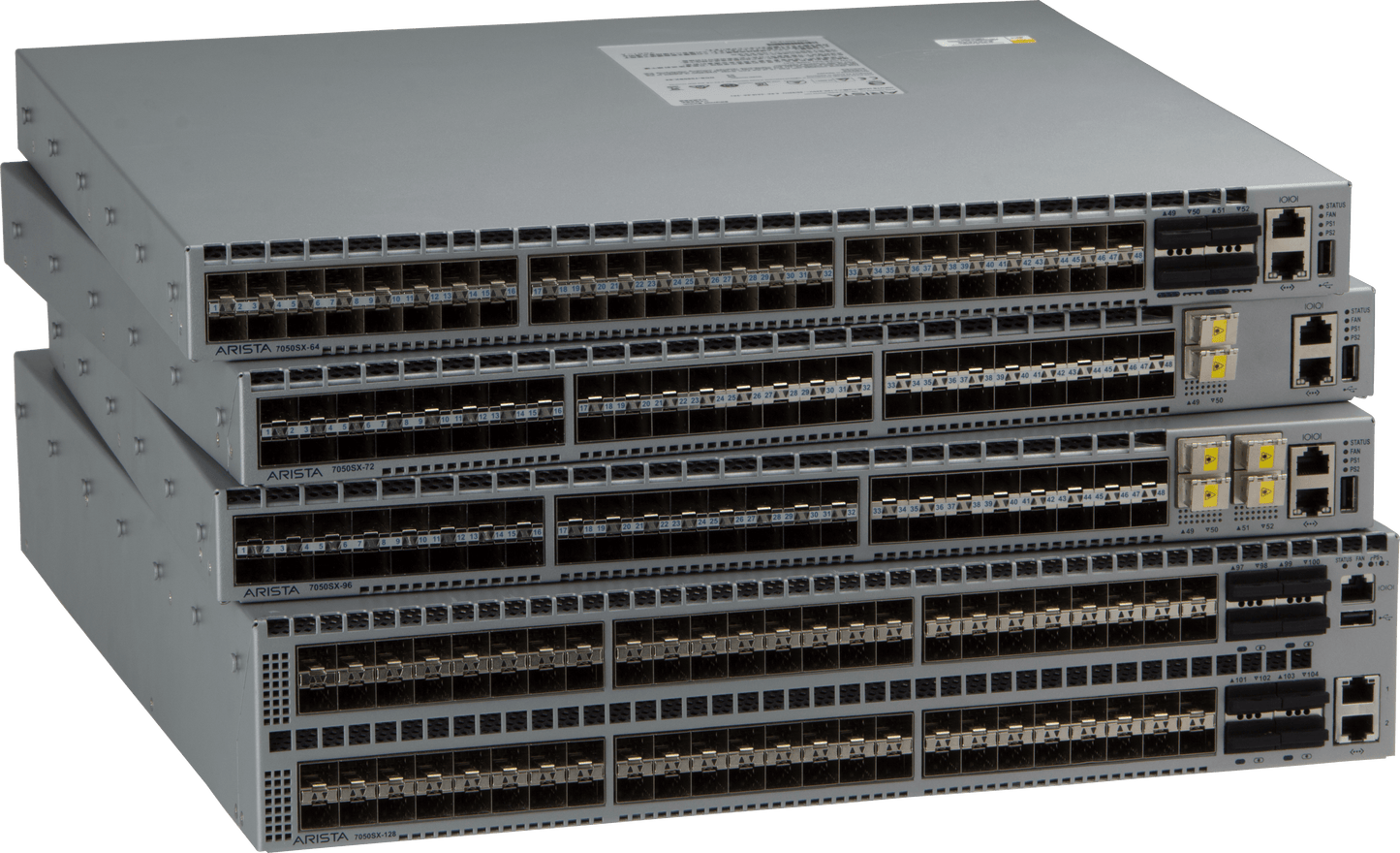

• Arista DCS-7050SX-64-D 48x10G SFP+ 4x40G QSFP+ network switch
1 1

Arista

Arista DCS-7050SX-64-D# | 7050SX 48-Port 10G Switch, 4x 40G QSFP+, SSD, No PSU

DCS-7050SX-64-D#

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050SX is a 1RU 10/40GbE data centre switch built for top-of-rack leaf and spine roles in leaf-spine fabrics, high-performance compute, big data and cloud environments. It also suits teams migrating from 1/10G to 10/40G.

This DCS-7050SX-64-D# model provides 48 x 1/10GbE SFP+ ports and 4 x 40GbE QSFP+ ports, with 1.28 Tbps of throughput, 960 Mpps forwarding and latency from 550 ns. A 12MB shared packet buffer uses Dynamic Buffer Allocation, and this SKU includes the onboard SSD for logs and data captures. It is supplied without fans or power supplies, so those are chosen separately and set the airflow direction. Typical power draw is 140W, with a maximum of 220W.

The chassis takes two hot-swap PSUs (1+1) and four hot-swap fans (N+1). Compatible PSUs are PWR-500AC-F/R and PWR-500-DC-F/R, and compatible fans are FAN-7000-F/R. It runs Arista EOS 4.14.0 or later, with optional feature licences sold separately for Enhanced L3, virtualisation, and monitoring and automation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Dynamic Buffer Allocation allows up to 6.7MB of packet memory to a single port
- VXLAN routing, bridging and gateway, plus VM Tracer
- MLAG and 64-way ECMP with BGP, OSPF and IS-IS support
- OpenFlow, DirectFlow and eAPI programmability
- LANZ microburst detection, Zero Touch Provisioning, sFlow and DANZ advanced mirroring
- Arista EOS with Linux shell access, bash, Python and C++ extensibility
- Onboard SSD for logs and data captures

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x SFP+, 4 x QSFP+
- Total 10GbE ports: 64
- Total 40GbE ports: 4
- Throughput: 1.28 Tbps
- Forwarding rate: 960 Mpps
- Latency: 550 ns
- CPU: Quad-core x86
- System memory: 4 GB
- Flash storage: 4 GB
- Packet buffer: 12MB with Dynamic Buffer Allocation
- Management port: 1 x 10/100/1000
- Serial port: 1 x RS-232 (RJ-45)
- USB ports: 1
- Power supply bays: 2 hot-swap (1+1 redundant)
- Fan bays: 4 hot-swap (N+1 redundant)
- Airflow: Reversible, set by fan and PSU order
- Typical / maximum power: 140W / 220W
- Dimensions (WxHxD): 48.3 x 4.4 x 40.6 cm
- Weight: 8.6 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -25 to 70 C
- Relative humidity: 5 to 95%
- MAC addresses: 32K (base mode) / 288K (UFT modes)
- IPv4 unicast routes: 16K (base mode) / 144K (UFT modes)
- ECMP: 64-way, 1K groups
- Minimum EOS version: 4.14.0

FAQs

Q: Does this switch include fans and power supplies?
A: No. The -D# SKU ships without fans or power supplies, and these must be chosen separately. The fan and PSU airflow direction (front-to-rear or rear-to-front) is set by the F or R variant you choose.

Q: Which power supplies and fans suit this switch?
A: Compatible PSUs are PWR-500AC-F/R (100-240VAC) and PWR-500-DC-F/R (-48 to -60VDC). Compatible fans are FAN-7000-F/R. The chassis takes two hot-swap PSUs (1+1) and four hot-swap fans (N+1).

Q: Does it need a software licence?
A: It runs Arista EOS with Group 2 fixed-switch feature licences. Optional add-ons include LIC-FIX-2-E (Enhanced L3), LIC-FIX-2-V (Virtualisation), LIC-FIX-2-V2 (Extensions, Security and Partner Integration) and LIC-FIX-2-Z (Monitoring and Automation).

Q: What optics and cables do the ports support?
A: The SFP+ ports support 10GBASE-CR, AOC, SR, LR, ER, ZR and DWDM, plus 1GbE SX/LX and 100/1000BASE-T. The QSFP+ ports support 40GBASE-CR4, AOC, SR4, LR4 and ER4, and 4x10G breakout cables.

Q: What does the SSD variant add?
A: The -D# SKU includes the optional onboard SSD, which stores logs and data captures on the switch.
