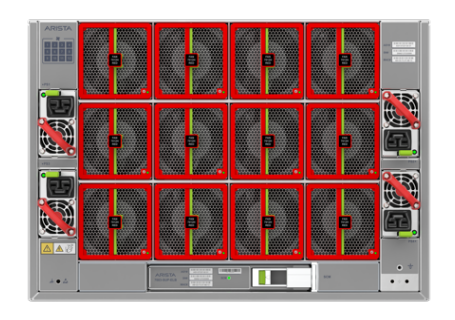

• Red and black arista dcs-7001-sup-el supervisor-el module server rack showing multiple fans green indicator lights and power units
1 1

Arista

Arista DCS-7001-SUP-EL | 7700R4 Supervisor-EL Module, 8c/16t 2.3GHz, 64GB RAM

DCS-7001-SUP-EL

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista DCS-7001-SUP-EL is a Supervisor-EL control plane module designed for the 7700R4 Distributed Etherlink Switch platform, optimised for large-scale AI/ML data centre deployments. Featuring an 8-core/16-thread x86 CPU at 2.3 GHz, 64GB RAM, and 512GB NVMe storage, this spare module supports 1+1 supervisor redundancy, stateful failover, and in-service software upgrades (ISSU) to keep critical workloads online. Built for hot-aisle/cold-aisle environments with front-to-rear airflow and secure boot enabled for hardened platform security.

Features

High-performance x86 control plane engineered for large-scale AI/ML data centre switching fabrics
- Secure Boot enabled by default for hardened platform security and trusted boot integrity
- Front-to-rear (-F) airflow supports standard hot-aisle/cold-aisle data centre rack deployments
- Designed for 1+1 supervisor redundancy within Arista 7001 Series systems
- Stateful supervisor failover minimises disruption during hardware failure events
- In-service software upgrades (ISSU) allow EOS updates without traffic interruption
- Runs Arista EOS for comprehensive control plane management and programmability
- Integrates with CloudVision for network-wide observability, telemetry, and automation
- Part of the 7700R4 Distributed Etherlink Switch platform optimised for AI/ML compute clusters
- Hot-swappable module enables rapid replacement with minimal Mean Time To Repair (MTTR)
- Supports cell-based traffic spraying, Virtual Output Queues (VOQ), and Distributed Credit Scheduling
- 64GB RAM and 512GB NVMe storage for large routing tables, telemetry, and automation workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

CPU: 8-core / 16-thread (8c/16t) x86 at 2.3 GHz
- Memory: 64GB RAM
- Storage: 512GB NVMe
- Airflow Direction: Front-to-Rear (-F)
- Secure Boot: Enabled
- Part Type: Spare Supervisor Module
- Platform Compatibility: Arista 7001 Series (7700R4 Distributed Etherlink Switch)
- Operating System: Arista EOS (Extensible Operating System)
- Hot-Swappable: Yes
- Redundancy Support: 1+1 supervisor redundancy with stateful failover
- ISSU: In-Service Software Upgrades supported
- Management Integration: CloudVision for network-wide automation and observability

FAQs

Q: What chassis is the DCS-7001-SUP-EL compatible with?
A: The DCS-7001-SUP-EL is designed for use with Arista 7001 Series systems operating within the 7700R4 Distributed Etherlink Switch platform, a high-density fabric optimised for AI/ML accelerated compute and data centre interconnect deployments.

Q: Is this module intended as a spare or a standard order item?
A: This SKU is sold as a spare replacement module, making it suitable for keeping as a hot-standby unit or replacing a failed supervisor in an existing 7001 Series installation.

Q: Can the Supervisor-EL module be replaced without taking the system offline?
A: Yes. The DCS-7001-SUP-EL is a hot-swappable, field-replaceable module designed for 1+1 supervisor redundancy with stateful failover, enabling replacement without system downtime or disruption to critical workloads.

Q: What is the front-to-rear airflow designation?
A: The -F suffix indicates front-to-rear airflow, where cool air enters from the front (cold aisle) and exhausts out the rear (hot aisle), aligning with standard hot-aisle/cold-aisle data centre cooling configurations.

Q: What workloads does the 7700R4 platform support?
A: The 7700R4 Distributed Etherlink Switch platform is optimised for large-scale AI/ML accelerated compute clusters, supporting Ultra Ethernet, RDMA workloads, DCQCN, PFC, ECN, and Cluster Load Balancing for high-performance GPU and AI fabric deployments.
