• Arista CAB-O-2Q-400G-3M 400G OSFP to 2x200G QSFP56 DAC cable, 3m
1 1

Arista

Arista CAB-O-2Q-400G-3M | 400G OSFP to 2x 200G QSFP56 DAC Cable, 3m Passive

CAB-O-2Q-400G-3M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

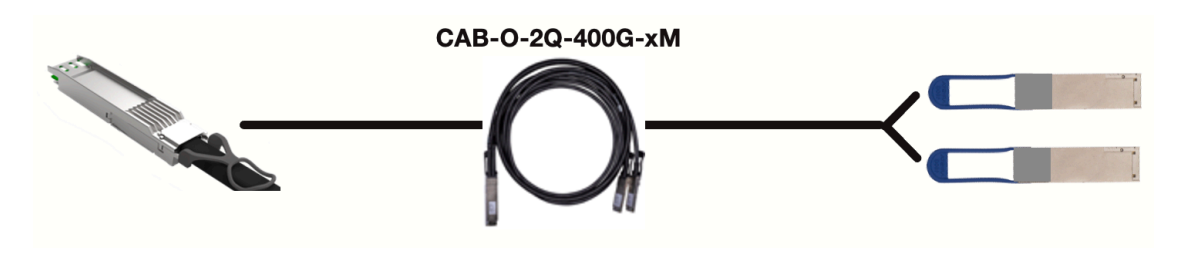

This passive twinax copper breakout cable connects one 400G OSFP port to two 200G QSFP56 ports over a 3 metre run. It suits short-reach links in data centre, AI and HPC racks, whether inside a single rack or between adjacent racks.

The cable uses 400GBASE-CR8 on the OSFP end, split into two 200GBASE-CR4 QSFP56 connections. It has a passive copper construction with no active electronics, a pull tab release and a hot-swappable pluggable form factor. No licence or subscription is required. The OSFP end measures 13.0 x 22.6 x 100.4 mm and each QSFP end measures 13.5 x 18.4 x 72.4 mm, and the cable operates at a case temperature of 0 to 70 C.

It requires a minimum of EOS 4.23.0. The OSFP end plugs into a 400G OSFP port and the two QSFP ends into 200G QSFP56 ports, so one 400G switch port can feed two 200G switch or NIC ports. It sits in Arista's 400G OSFP twinax range alongside OSFP-to-OSFP, 4x100G and 8x SFP breakout options.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Connects one 400G OSFP port to two 200G QSFP56 ports
- Passive copper design with no active electronics
- Hot-swappable pluggable form factor
- Pull tab release for easy removal
- No licence or subscription required
- Part of Arista's 400G OSFP twinax range, which also covers OSFP-to-OSFP, 4x100G and 8x SFP breakouts

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product number: CAB-O-2Q-400G-3M
- PHY type: 400GBASE-CR8 to 2x 200GBASE-CR4
- Connector type: OSFP to 2x QSFP56
- Cable type: Passive twinax copper
- Length: 3 m
- Wavelength: n/a (copper)
- Release: Pull tab
- Minimum EOS version: 4.23.0
- OSFP end dimensions (H x W x D): 13.0 x 22.6 x 100.4 mm
- QSFP end dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 10,000 ft

FAQs

Q: Does this cable need a licence or subscription?
A: No. It is a passive copper cable and needs no licence or subscription.

Q: What software version does it require?
A: It requires a minimum of Arista EOS 4.23.0 on the connected platform.

Q: Which ports does each end connect to?
A: The OSFP end plugs into a 400G OSFP port. The two QSFP ends plug into 200G QSFP56 ports on switches or NICs.

Q: Is this cable active or passive?
A: It is a passive twinax copper cable with no active electronics, designed for short reach.

Q: How does this differ from the other CAB-O-2Q lengths?
A: The OSFP to 2x QSFP56 family is offered in 1, 2 and 3 metre lengths. This SKU is the 3 metre version.
