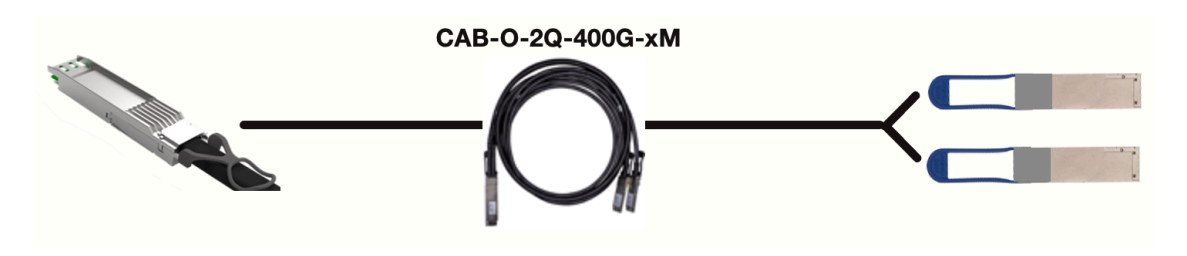

• Arista CAB-D-2Q-400G-2M 400G DAC breakout cable with black and gray connectors
1 1

Arista

Arista CAB-D-2Q-400G-2M | 400G QSFP-DD to 2x 200G QSFP56 DAC Breakout, 2m

CAB-D-2Q-400G-2M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Arista passive twinax copper breakout cable connects one 400G QSFP-DD port (400GBASE-CR8) to two 200G QSFP56 ports (2x 200GBASE-CR4) over a 2 metre run. It suits short-reach links in data centres, such as top-of-rack or adjacent-rack connections from a 400G switch port to 200G servers or switches.

The cable has a single QSFP-DD connector at one end that splits into two QSFP56 connectors at the other, each carrying 200G. The 400G side uses 8 x 50G PAM4 lanes. Being passive twinax copper, it has no active gearbox, and it is hot swappable. It operates over a case temperature range of 0 to 70 C and meets IEEE 802.3 Ethernet and QSFP-DD MSA standards.

It belongs to Arista's family of 400G QSFP-DD twinax copper cables, which also includes 1 metre, 2.5 metre and 3 metre lengths. Check Arista's Transceiver and Cable Guide for supported platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Splits one 400G QSFP-DD port into two 200G QSFP56 connections
- Passive twinax copper with no active gearbox for short-reach links
- Hot swappable to maximise uptime and simplify serviceability
- Suited to in-rack and adjacent-rack data centre connections
- Complies with IEEE 802.3 Ethernet and the QSFP-DD MSA
- Flexible media and interface choice on a port-by-port basis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- PHY type: 400GBASE-CR8 to 2x 200GBASE-CR4
- Connector type: QSFP-DD to 2x QSFP56
- Cable type: Passive twinax copper
- Length: 2 m
- Data rate: 400G to 2x 200G
- Hot swappable: Yes
- QSFP-DD Type 1 dimensions (HxWxD): 13.5 x 18.4 x 78.3 mm
- QSFP-DD Type 2 dimensions (HxWxD): 13.5 x 18.4 x 93.3 mm
- QSFP dimensions (HxWxD): 13.5 x 18.4 x 72.4 mm
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 10,000 ft
- Standards: IEEE 802.3 Ethernet, QSFP-DD MSA, QSFP28 SFF-8449 and 8636

FAQs

Q: What does this breakout cable connect?
A: It connects one 400G QSFP-DD port (400GBASE-CR8, 8 x 50G PAM4 lanes) to two 200G QSFP56 ports (2x 200GBASE-CR4).

Q: Is this an active or passive cable?
A: It is a passive twinax copper cable with no active gearbox, so it is intended for short-reach links.

Q: What other lengths are available in this family?
A: Related lengths in the same family are 1 metre (CAB-D-2Q-400G-1M), 2.5 metre (CAB-D-2Q-400-2.5) and 3 metre (CAB-D-2Q-400G-3M).

Q: How do I confirm platform support?
A: Check Arista's Transceiver and Cable Guide for the switch platforms and ports that support this cable.
