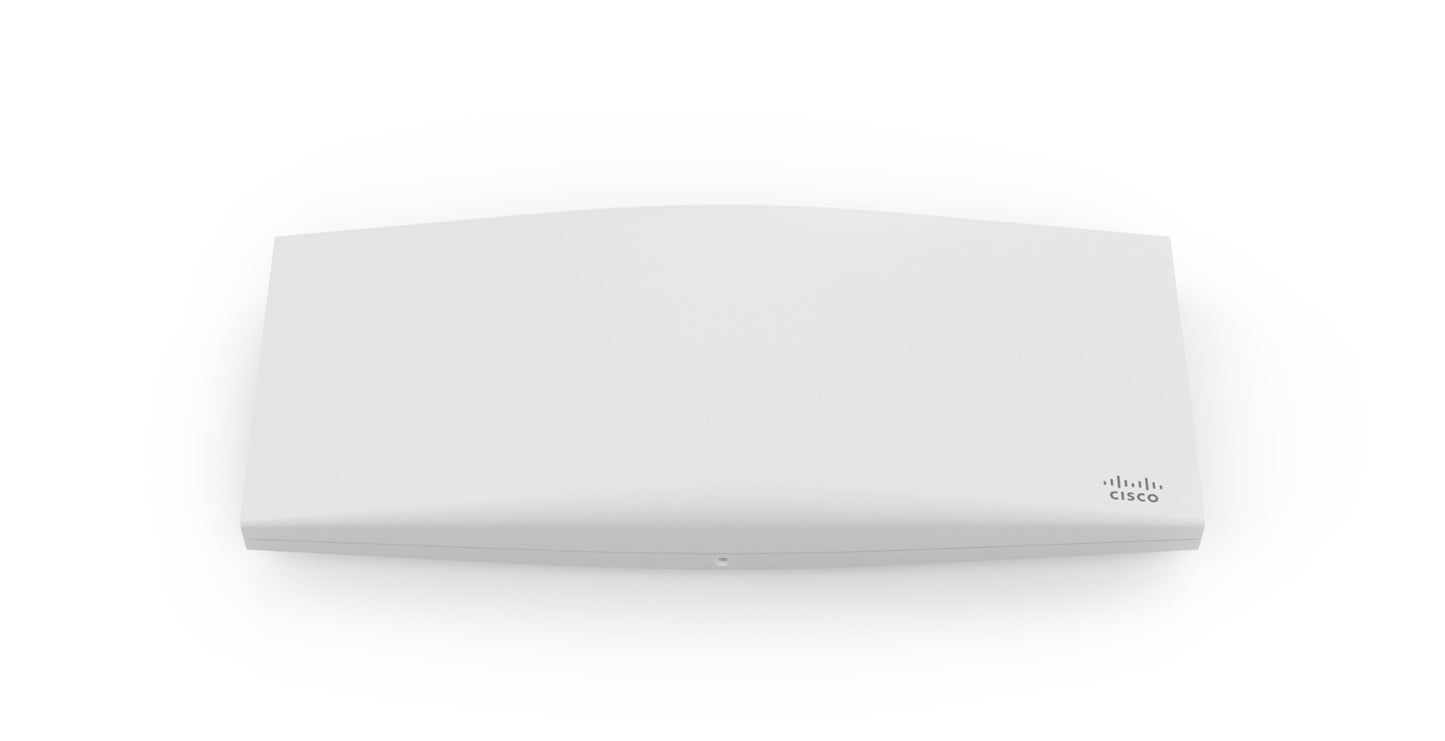

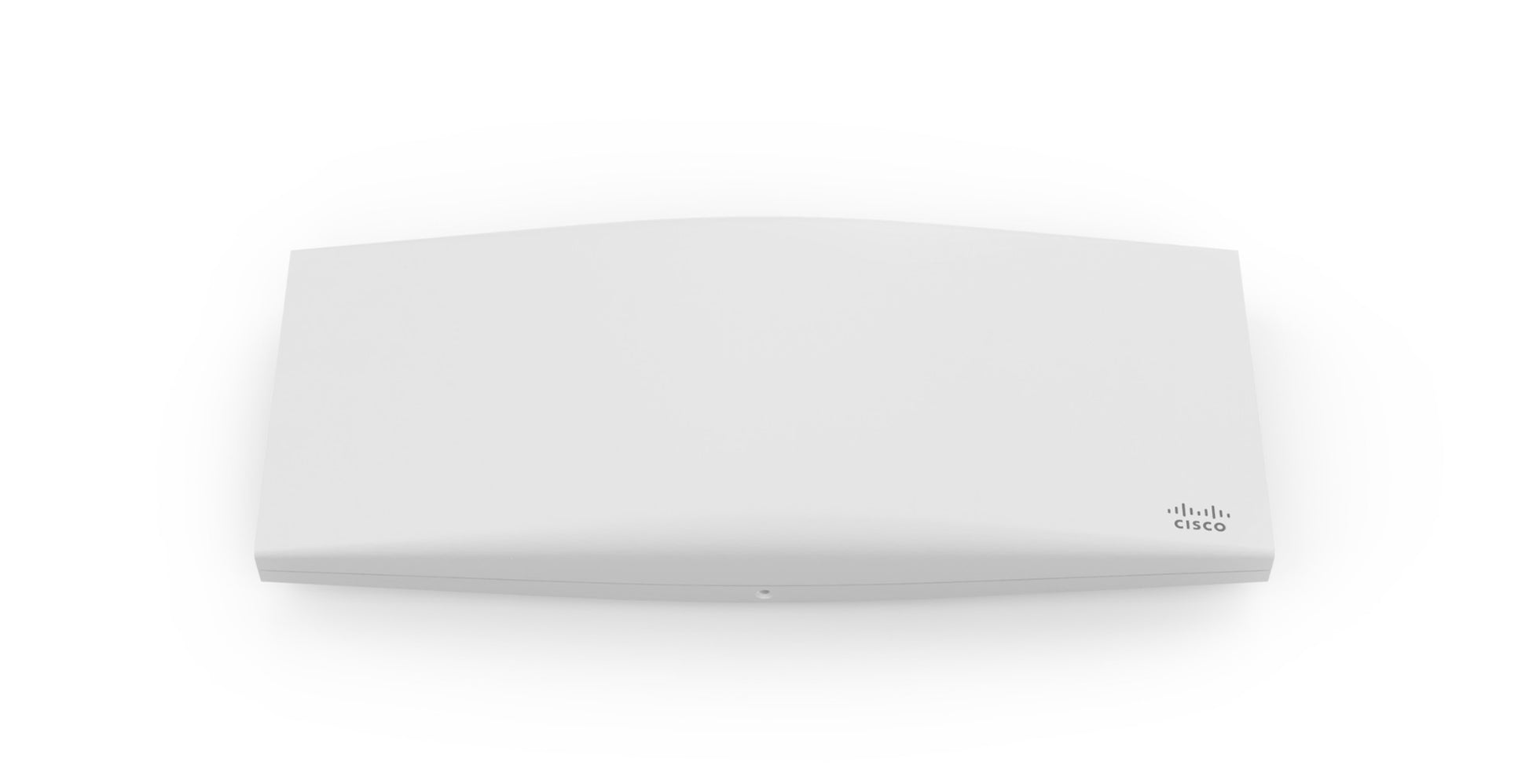

Meraki MR45-HW MR45 Cloud Managed Indoor AP

Features

• Wi-Fi 6 (802.11ax) technology providing high-efficiency wireless connectivity
• Increased capacity and reduced latency for better performance in high-density environments
• Up to 3.5 Gbps aggregate frame rate for optimal data throughput
• Seamless cloud-based network management through the Meraki Dashboard
• Built-in security features including identity-based firewall and intrusion prevention
• Dual-band operation with support for 2.4 GHz and 5 GHz
• MU-MIMO and OFDMA for improved multi-client performance
• Automated RF optimization and self-healing for reliable coverage
• Easy deployment with zero-touch provisioning

Technical Specifications

• Wi-Fi Standards: 802.11a/b/g/n/ac/ax
• RF: 2.4 GHz and 5 GHz
• Antenna: Integrated omni-directional antennas
• Maximum Data Rate: 3.5 Gbps aggregate
• Spatial Streams: 4x4 MU-MIMO with four spatial streams
• Ethernet Ports: 2 x 1G/2.5G/5G BASE-T Ethernet (RJ45)
• PoE: 802.3at (PoE+)
• Transmit Power: Up to 23 dBm
• Dimensions: 231mm x 210mm x 34mm
• Weight: 0.93 kg
• Operating Temperature: 0°C to 40°C
• Security: WPA3, WPA2, WPA, WEP, 802.1X
• Mounting: Ceiling or wall mountable

Frequent Ask Questions

• What is the Meraki MR45-HW MR45 Cloud Managed Indoor AP?

The Meraki MR45-HW MR45 is a high-performance 802.11ax (Wi-Fi 6) indoor wireless access point designed for high-density deployments and performance-critical networks.

• What are the key features of the Meraki MR45?

Key features include support for 4x4:4 MU-MIMO, OFDMA, enhanced security with WPA3, integrated Bluetooth, dedicated security and RF management radio, and cloud-based management.

• How do I manage the Meraki MR45?

The Meraki MR45 access point is managed through the Meraki cloud-based dashboard, which provides centralized management, monitoring, and configuration of the device.

• What are the deployment scenarios for the Meraki MR45?

The MR45 is ideal for indoor environments with high client density such as offices, schools, hospitals, retail shops, and large enterprise campuses.

• Does the Meraki MR45 support both 2.4 GHz and 5 GHz bands?

Yes, the MR45 supports dual-band operation with 2.4 GHz (802.11ax) and 5 GHz (802.11ax) frequencies, providing enhanced performance and capacity.

• Can the Meraki MR45 be used for guest Wi-Fi access management?

Yes, the MR45 can be configured to provide secure guest Wi-Fi access, including features like splash pages, user authentication, and usage policies.

• What kind of security features does the Meraki MR45 offer?

Security features include WPA3 encryption, integrated Layer 7 application firewall, identity-based group policies, built-in malware protection, and rogue AP detection.

• Is the Meraki MR45 compatible with previous Wi-Fi standards?

Yes, the MR45 is backward compatible with older WiFi standards such as 802.11a/b/g/n/ac.

• Does the Meraki MR45 come with built-in Bluetooth?

Yes, it includes integrated Bluetooth Low Energy (BLE) for beaconing and scanning capabilities.

• What power options are available for the Meraki MR45?

The MR45 can be powered using 802.3at Power over Ethernet (PoE+) or an AC adapter (available separately).
