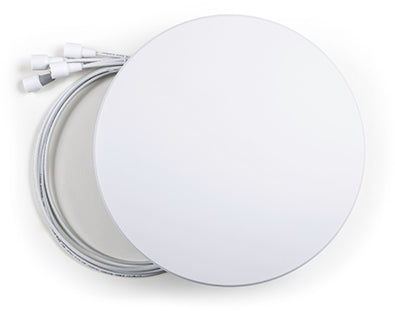

Meraki MA-ANT-3-D5 Cisco Downtilt Panel Omni Antenna

Meraki MA-ANT-3-D5 Cisco Downtilt Panel Omni Antenna

SKU: MA-ANT-3-D5

The Cisco Meraki MA-ANT-3-D5 is a downtilt panel omni antenna designed to enhance the range and performance of wireless networks. This high-efficiency antenna is compatible with Meraki MR wireless access points, making it ideal for extending wireless coverage in diverse environments. With its omni-directional design, the MA-ANT-3-D5 offers a wide radiation pattern, ensuring reliable connectivity and improved signal strength across all directions. This antenna is particularly suited for businesses and enterprises looking for scalable and efficient wireless solutions to support multiple users and devices seamlessly.

Features
  • Optimized for indoor use with Cisco Meraki MR series access points
  • Provides enhanced coverage in challenging environments with downtilt panel design
  • Omni-directional radiation pattern for broad coverage
  • Compact and unobtrusive, blending seamlessly into any environment
  • Easy installation with adjustable mounting options
  • Dual-band support for both 2.4 GHz and 5 GHz frequencies
  • Durable construction for long-lasting performance

Technical Specifications

  • Model Number: MA-ANT-3-D5
  • Frequency Range: 2.4-2.5 GHz / 5.15-5.875 GHz
  • Gain: 2 dBi (2.4 GHz) / 4 dBi (5 GHz)
  • Polarization: Vertical
  • Beamwidth: 360° (H-plane, 2.4 GHz), 30° (E-plane, 2.4 GHz), 360° (H-plane, 5 GHz), 60° (E-plane, 5 GHz)
  • Dimensions: 18.5 cm x 18.5 cm x 4.1 cm (7.3 in x 7.3 in x 1.6 in)
  • Connector: N-type female
  • Weight: 0.7 kg (1.5 lbs)
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Material: UV-resistant plastic

Frequent Asked Questions
  • What is the Meraki MA-ANT-3-D5 Cisco Downtilt Panel Omni Antenna?

    The Meraki MA-ANT-3-D5 is a downtilt panel omni antenna designed for use with Cisco Meraki access points. It provides enhanced wireless coverage and performance for various networking environments.

  • What type of environment is the Meraki MA-ANT-3-D5 suitable for?

    This antenna is suitable for both indoor and outdoor environments where enhanced coverage and signal strength are required. It is commonly used in enterprise and campus settings.

  • What are the technical specifications of the Meraki MA-ANT-3-D5?

    The Meraki MA-ANT-3-D5 features a downtilt gain of 6 dBi, operates in the frequency range of 2.4 GHz and 5 GHz, and supports MIMO (Multiple Input, Multiple Output) technology.

  • Can the Meraki MA-ANT-3-D5 be used with any access point?

    This antenna is designed specifically for use with Cisco Meraki access points. It is important to ensure compatibility with your existing network hardware before purchasing.

  • How do I install the Meraki MA-ANT-3-D5?

    Installation involves mounting the antenna to a suitable location and connecting it to the access point. Detailed instructions are provided in the installation guide included with the product.

  • Does the Meraki MA-ANT-3-D5 come with mounting hardware?

    Yes, the antenna typically comes with mounting hardware to facilitate installation on a variety of surfaces and structures.

  • What is the advantage of using a downtilt panel omni antenna?

    A downtilt panel omni antenna, like the Meraki MA-ANT-3-D5, provides focused coverage with a downward tilt, enhancing signal strength and coverage in targeted areas while reducing interference.

  • Is the Meraki MA-ANT-3-D5 weather-resistant?

    Yes, the Meraki MA-ANT-3-D5 is designed to be weather-resistant, making it suitable for outdoor installations where it may be exposed to varying weather conditions.

  • Can the antenna be used in high-density environments?

    Yes, the Meraki MA-ANT-3-D5 is effective in high-density environments, providing reliable and robust wireless coverage in areas with a high concentration of users and devices.
