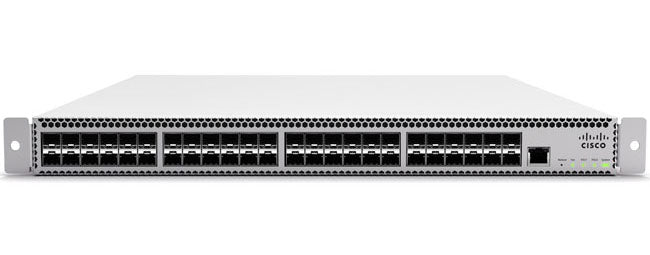

Meraki MS420-48-HW Cisco Cloud-managed 48 port 10 GbE aggregation switch

Meraki MS420-48-HW Cisco Cloud-managed 48 port 10 GbE aggregation switch

SKU: MS420-48-HW

The Cisco Meraki MS420-48-HW is a high-performance, cloud-managed 48-port 10GbE aggregation switch, perfect for optimizing data center operations and complex network setups. Designed to provide robust scalability, it offers enhanced security and comprehensive network control accessible through a user-friendly dashboard. This switch supports Layer 3 connectivity and real-time network insights, facilitating effortless deployment, monitoring, and maintenance without the need for traditional command-line interfaces. Ideal for enterprises seeking to streamline their networking infrastructure with efficiency and ease.

Features
  • Cloud-Managed: Easy to deploy, manage, and troubleshoot via Cisco Meraki’s web-based dashboard.
  • High Capacity: 48 ports of 10 Gigabit Ethernet enable high throughput and low latency for aggregation.
  • Stackability: Supports the ability to stack multiple switches, allowing for simplified network expansion.
  • Layer 3 Capabilities: Advanced routing protocols, including OSPF, RIP, and BGP.
  • Quality of Service (QoS): Ensures priority handling of critical data traffic.
  • Advanced Security: Built-in network security features including ACLs and 802.1X authentication.
  • Environmentally Friendly: ENERGY STAR certified with efficient power consumption.
  • Remote Firmware Upgrades: Automatic updates ensure the switch is always running the latest security and feature enhancements.
  • SFP+ Inserts: Provision to insert SFP+ transceivers for flexible uplink connectivity.

Technical Specifications

  • Ports: 48 x 10 GbE (SFP+)
  • Throughput: Up to 720 Gbps
  • Switching Capacity: 960 Gbps
  • Latency: Sub-microsecond latency
  • Stack Ports: 2 x 40Gbps QSPF+ stacking ports
  • Dimensions: 1.72 x 19 x 18.98 inches (H x W x D)
  • Weight: 14.1 lbs (6.4 kg)
  • Power Supply: Dual, hot-swappable, load sharing
  • Maximum Power Consumption: 150W
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity: 5% to 95% (non-condensing)
  • Certification: ENERGY STAR, UL (IEC/EN/UL 60950-1)
  • Management Interface: Cisco Meraki Dashboard

Frequent Ask Questions
  • What is the Meraki MS420-48-HW?

    The Meraki MS420-48-HW is a cloud-managed 48-port 10 GbE aggregation switch designed for high-performance network environments. It provides advanced networking features with the simplicity of cloud-based management.

  • What are the key features of the Meraki MS420-48-HW?

    The key features of the Meraki MS420-48-HW include 48 10G SFP+ ports for high-speed connectivity, Layer 3 routing capabilities, advanced security features, and seamless cloud-based management through the Meraki Dashboard.

  • What types of network environments is the Meraki MS420-48-HW suitable for?

    The Meraki MS420-48-HW is ideal for high-performance network environments such as data centers and large enterprise networks where high-speed connectivity and advanced routing capabilities are required.

  • What kind of management does the Meraki MS420-48-HW offer?

    The Meraki MS420-48-HW offers cloud-based management through the Meraki Dashboard, providing a single pane of glass for centralized management, monitoring, and configuration of the network.

  • Does the Meraki MS420-48-HW support Layer 3 routing?

    Yes, the Meraki MS420-48-HW supports Layer 3 routing capabilities, enabling advanced routing functions such as static routing, OSPF, and inter-VLAN routing.

  • What is the benefit of cloud-managed networking with Meraki MS420-48-HW?

    Cloud-managed networking with the Meraki MS420-48-HW offers simplicity, scalability, and ease of use by eliminating the need for on-premises controllers, providing centralized management, automatic updates, and advanced analytics through the Meraki Dashboard.
