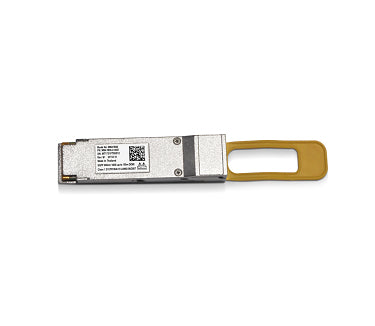

NVIDIA MMA1B00-C100D | LinkX 100G QSFP28 SR4 Transceiver, 100m OM4, MPO-12

MMA1B00-C100D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The LinkX MMA1B00-C100D is a 4-channel pluggable QSFP28 optical transceiver for 100GbE links over parallel multi-mode fibre. It is built for short-reach data centre and HPC connections, including server-to-switch and switch-to-switch links, and also supports 40GBASE-SR4 operation.

It runs at up to 100 Gb/s using four 25.78125 Gb/s lanes at a nominal 850 nm wavelength, driven by a VCSEL laser. Reach is 100 m on OM4 and 70 m on OM3 for 100G, and 100 m on OM3 for 40G. The optical interface is an un-angled MPO-12 (UPC) connector with four fibres per direction. Power draw is 2.2 W typical with retiming on and 2.5 W maximum, within QSFP28 power class 3, and the module operates over a case temperature range of 0 to 70 C.

It is qualified for NVIDIA Ethernet end-to-end systems and compliant with the QSFP28 MSA, SFF-8636 and SFF-8665. It needs parallel OM3 or OM4 multi-mode cabling terminated with MPO-12 connectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 100 Gb/s data rate with low power consumption of 2.2 W typical
- Selectable retiming on both Tx and Rx, usable for 40GbE and 100GbE
- Programmable Tx input equaliser
- Programmable Rx output amplitude and emphasis
- Single 3.3 V supply with hot-pluggable operation
- SFF-8636 compliant digital diagnostic monitoring over I2C
- Class 1 laser safety and RoHS compliant
- Qualified for use in NVIDIA Ethernet end-to-end systems

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: QSFP28 (SFF-8665 compliant)
- Standards: 100GBASE-SR4 and 40GBASE-SR4
- Data rate: Up to 100 Gb/s (25.78125 Gb/s per lane)
- Channels: 4 Tx / 4 Rx
- Nominal wavelength: 850 nm (VCSEL, multi-mode fibre)
- Reach (100G): 100 m on OM4, 70 m on OM3
- Reach (40G): 100 m on OM3
- Optical connector: MPO-12, un-angled (UPC), 4 fibres per direction
- Electrical host interface: CAUI-4
- Supply voltage: 3.135 / 3.3 / 3.465 V (min / typ / max)
- Power consumption (no retiming): 1.5 W typ, 1.8 W max
- Power consumption (retiming on): 2.2 W typ, 2.5 W max
- Power class: QSFP28 power class 3
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85 %
- Management interface: Two-wire (I2C), SFF-8636 compliant
- Digital diagnostics: Temperature, supply voltage and optical power monitoring
- Laser safety: Class 1
- BER: Better than 1E-15
- Compliance: RoHS

FAQs

Q: What fibre does the MMA1B00-C100D require?
A: It needs parallel multi-mode fibre (OM3 or OM4) terminated with MPO-12 connectors. Reach at 100G is 100 m on OM4 and 70 m on OM3.

Q: Can it run 40GbE as well as 100GbE?
A: Yes. It supports both 100GBASE-SR4 and 40GBASE-SR4, with a 40G reach of 100 m on OM3.

Q: How much power does it draw?
A: It draws 2.2 W typical with retiming on, 2.5 W maximum, and 1.5 W typical without retiming. It is a QSFP28 power class 3 module on a single 3.3 V supply.

Q: What is it qualified to work with?
A: It is qualified for NVIDIA Ethernet end-to-end systems, including NVIDIA and Mellanox QSFP28 ports, and complies with the QSFP28 MSA, SFF-8636 and SFF-8665.

Q: Does it support digital diagnostics?
A: Yes. It provides SFF-8636 compliant monitoring of temperature, supply voltage and optical power over the I2C management interface.
