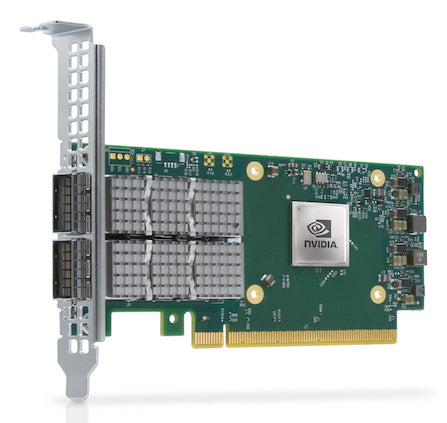

• NVIDIA 900-9X6AG-0086-ST0 GPU with green PCB and silver frame
1 1

NVIDIA

NVIDIA 900-9X6AG-0086-ST0 | ConnectX-6 Dx Dual-Port 100GbE SmartNIC, PCIe 4.0 x16

900-9X6AG-0086-ST0

Stock Status: Enquire

$3,289.00 inc. GST
$2,990.00 ex. GST
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The NVIDIA ConnectX-6 Dx is an advanced SmartNIC designed to accelerate mission-critical data center applications including security, virtualization, SDN/NFV, big data, machine learning, and storage. Featuring dual-port 100GbE QSFP56 connectivity with PCIe 4.0 x16 host interface, it delivers hardware-accelerated SR-IOV and VirtIO offloads via ASAP2 technology. Built-in inline IPsec and TLS encryption engines provide robust data-in-motion security with unprecedented performance and scalability for cloud and enterprise deployments.

Features

Dual-port 100GbE QSFP56 connectivity with up to 200Gb/s total bandwidth
- PCIe 4.0 x16 host interface for maximum throughput and low latency
- ASAP2 virtual switch and virtual router hardware offloads
- SR-IOV and VirtIO in-hardware acceleration with up to 8 million rules
- RoCEv2 RDMA support with Zero Touch RoCE for simplified deployment
- Programmable congestion control with API for custom algorithms
- Inline IPsec and TLS encryption/decryption offload engines
- AES-XTS block-level encryption for data-at-rest protection
- Hardware root-of-trust with secure boot and secure firmware update
- Stateful connection tracking for hardware-based L4 firewall and DoS protection
- IEEE 1588v2 PTP hardware timestamping for precision timing
- NVMe-oF target and initiator acceleration for storage workloads
- Open vSwitch connection tracking acceleration
- Overlay network encapsulation support (VXLAN, GENEVE, NVGRE)
- Advanced QoS with traffic shaping and classification-based policing
- NVIDIA Multi-Host and Socket Direct technology support
- Server management via NC-SI, MCTP over SMBus/PCIe

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Network Ports: Dual-port QSFP56, 100GbE per port (200Gb/s total bandwidth)
- Host Interface: PCIe 4.0 x16
- Supported Speeds: 10/25/40/50/100 Gbps Ethernet per port
- SerDes Technology: 50Gb/s PAM4 and 25/10 Gb/s NRZ
- RDMA: RoCEv2 with Zero Touch RoCE support
- Virtualization: SR-IOV and VirtIO hardware offload via ASAP2 technology, up to 8 million rules
- Security Features: Hardware root-of-trust, secure boot, secure firmware update with RSA cryptography
- Inline Crypto: IPsec and TLS encryption/decryption offload, AES-XTS data-at-rest encryption
- Timing: IEEE 1588v2 PTP hardware timestamping support
- Storage Acceleration: NVMe-oF target and initiator offloads
- Stateful Packet Filtering: Hardware L4 firewall, DoS protection via connection tracking
- Form Factor: Full-height PCIe adapter card with tall bracket
- Management: CLI, SNMP, NC-SI via BMC (MCTP over SMBus/PCIe)
- Supported Standards: 100GBASE-CR2, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, IEEE 802.3

FAQs

Q: What makes the ConnectX-6 Dx a SmartNIC?
A: The ConnectX-6 Dx features ASAP2 technology that offloads virtual switch and virtual router data plane processing from the CPU to the adapter's ASIC. This hardware acceleration delivers orders of magnitude higher performance than software-based solutions while freeing CPU cores for application workloads.

Q: Does this adapter support both SR-IOV and VirtIO?
A: Yes, the ConnectX-6 Dx supports both SR-IOV and VirtIO acceleration in hardware, allowing customers to choose the best virtualization approach for their environment. The adapter can accommodate up to 8 million offload rules for cloud networking workloads.

Q: What encryption capabilities are included?
A: This SKU includes crypto-enabled inline acceleration engines that offload IPsec and TLS encryption/decryption for data-in-motion, plus AES-XTS offload for data-at-rest. It also features hardware root-of-trust and secure boot capabilities for enhanced endpoint security.

Q: Can this adapter run at speeds lower than 100GbE?
A: Yes, each QSFP56 port supports multiple Ethernet speeds including 10/25/40/50/100 Gbps, providing flexibility for mixed-speed environments. The adapter uses PAM4 signaling for 50/100G speeds and NRZ for 10/25G speeds.

Q: What deployment scenarios is the ConnectX-6 Dx best suited for?
A: The ConnectX-6 Dx is ideal for high-performance data center servers running virtualized workloads, software-defined networking, storage arrays with NVMe-oF, AI/ML training clusters requiring RDMA, and security-sensitive applications needing inline encryption at line rate.
