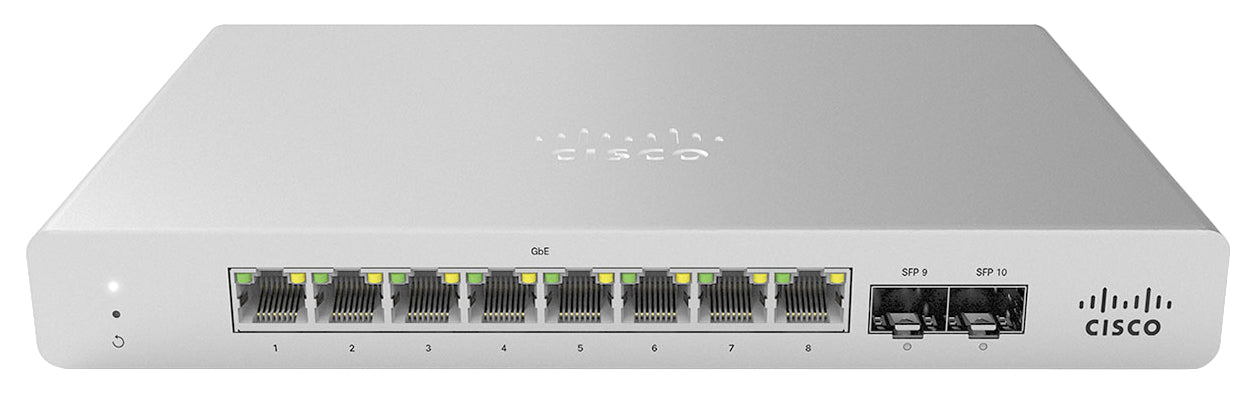

Meraki MS120-8FP-HW | MS120 8-Port PoE+ Switch, 124W, 2x 1G SFP

MS120-8FP-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS120-8FP is a compact, fanless Layer 2 cloud-managed access switch built for branch offices, retail sites and small deployments that need a quiet PoE switch for IP phones, cameras and wireless access points. It is managed entirely through the Meraki Dashboard.

The switch provides eight 10/100/1000BASE-T RJ45 PoE/PoE+ ports and two 1G SFP uplinks, with a 124W PoE budget available across the full set of ports. Switching capacity is 20 Gbps with a 14.88 Mpps forwarding rate. It supports 4094 VLANs, a 16,000-entry MAC address table, 9600-byte jumbo frames and six dedicated QoS queues for converged voice, video and data traffic. Power comes from a fixed internal supply with 100-240 VAC input.

This is the hardware-only SKU and requires a Meraki MS120-8 cloud-management licence to operate on the Dashboard. The two uplink ports accept standard 1G SFP optics, and multiple switches can be virtually stacked through the Dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard with zero-touch provisioning
- 20 Gbps non-blocking switch backplane
- PoE+ with dynamic power allocation for access points, phones and cameras
- Six dedicated QoS queues for converged voice, video and data
- Fanless, silent operation
- Integrated brackets for wall or desk mounting, with Kensington security slot
- Virtual stacking managed through the Dashboard
- Automatic firmware upgrades with scheduling control

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interfaces: 8 x 10/100/1000BASE-T RJ45 with auto-negotiation and auto-MDIX
- Uplinks: 2 x 1G SFP
- PoE/PoE+ budget: 124W
- Switching capacity: 20 Gbps
- Forwarding rate: 14.88 Mpps (64-byte packets)
- Jumbo frame support: 9600 bytes
- Dedicated QoS queues: 6
- MAC address table size: 16,000
- VLANs supported: 4094
- Stacking: Virtual stacking via Dashboard
- Power supply: Fixed internal, DC 56V/2.7A, 150W
- Input voltage: 100-240 VAC, 47-63 Hz
- Power draw (idle / full load): 9 W / 162 W
- Cooling: Fanless
- Operating temperature: 0 to 45 C
- Humidity: 5% to 95% non-condensing
- Dimensions (H x W x D): 4.4 x 22.7 x 23 cm
- Weight: 1.55 kg
- Form factor: Desktop or wall mountable with integrated brackets and Kensington security slot

FAQs

Q: Does the MS120-8FP-HW include a licence?
A: No. The -HW SKU is hardware only. A Meraki MS120-8 cloud-management licence is required to operate the switch on the Dashboard.

Q: How much PoE power does it provide?
A: The switch has a 124W PoE/PoE+ budget shared across its eight Gigabit ports, with dynamic power allocation.

Q: What power supply does it use?
A: It has a fixed internal power supply (DC 56V/2.7A, 150W) with a 100-240 VAC input, so no external power adapter is needed.

Q: What optics fit the SFP uplink ports?
A: The two uplink ports accept standard 1G SFP optics.

Q: Can I stack multiple MS120-8FP switches?
A: Virtual stacking is supported through the Meraki Dashboard. Physical stacking is not supported.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
