NVIDIA

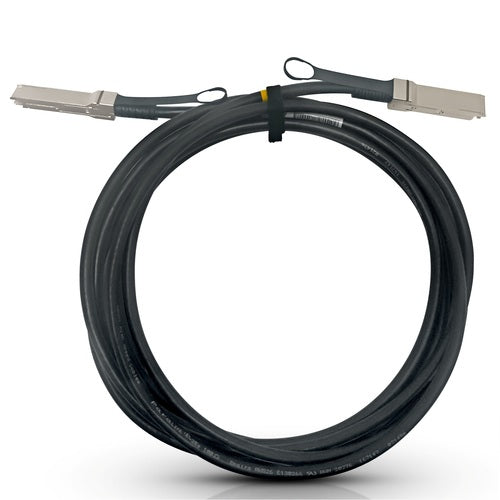

NVIDIA MCP1650-H01AE30 | 200G QSFP56 | IB HDR | copper DAC (passive) | reach 1.5m | QSFP56↔QSFP56 | LSZH, 30AWG

SKU:MCP1650-H01AE30

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Passive direct-attach copper cable for InfiniBand HDR 200Gb/s fabrics. QSFP56 to QSFP56 with LSZH jacket and 30AWG conductors offers a balance of flexibility and reach for neat, low-latency rack-to-rack or server-to-switch connections up to 1.5 meters.

Features

- High-density 200G interconnect in a 1.5 m length
- Zero-power, low-latency passive copper design
- QSFP56-to-QSFP56 for seamless InfiniBand HDR links
- LSZH jacket suitable for modern data centers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What is the aggregate bandwidth?
A: 200Gb/s using four 50G PAM4 lanes in each direction.

Q: Is this compatible with QSFP28 ports?
A: QSFP56 is mechanically similar, but electrical compatibility depends on device support. Check port specifications before use.

Q: Do I need optics for this link?
A: No optics are required; this is a copper DAC with integrated QSFP56 ends.

Technical Specifications

- Data rate: 200Gb/s aggregate (4×50G PAM4)
- Interface/form factor: QSFP56 to QSFP56
- Cable type: Passive Direct Attach Copper (DAC)
- Protocol/standard: InfiniBand HDR
- Length: 1.5 meters
- Conductor gauge: 30AWG
- Jacket: LSZH (Low Smoke Zero Halogen)
- Color: Black
- Connector style: QSFP56 integrated latching pull-tab
- Power: Passive, no external power consumption
- Use case: Short-reach links with modest slack
- RoHS compliant
