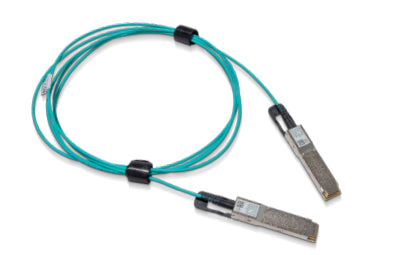

NVIDIA 980-9I45D-00H005 | 200G QSFP56 Active Optical Cable, 5m, IB HDR/200GbE
SKU:980-9I45D-00H005
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This NVIDIA MFS1S00-HxxxV 200Gb/s QSFP56 multi-mode active optical cable is built for short-reach InfiniBand HDR and 200GbE links in data centres. It suits switch-to-switch and switch-to-server connections where passive copper is too short, and this SKU is the 5m length.
The cable has a QSFP56 connector at both ends and carries up to 200Gb/s over four 50Gb/s PAM4 lanes. It uses VCSEL-based 850nm multi-mode fibre technology and a SFF-8665 compliant electrical interface. Power is drawn from a single 3.3V supply at the host port, with 5.0W typical consumption per end with retiming. The assembly is hot pluggable and RoHS compliant.
It supports 200Gb InfiniBand HDR systems and 200GbE links between SN3700 and SN4600 switches, using QSFP56 host ports.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports IBTA InfiniBand HDR and 200GbE
- Selectable retiming per lane on both optical transmitters and receivers up to 50Gb/s
- Programmable receive output amplitude and pre-emphasis
- Hot pluggable for easy installation and replacement
- Higher port density and a longer reach than passive copper cables in data centres
- SFF-8636 compliant I2C management interface
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Data rate: Up to 200Gb/s (IB HDR / 200GbE)
- Connectors: QSFP56 to QSFP56
- Cable length: 5m
- Modulation: 4x 50Gb/s PAM4
- Signalling rate: 53.125 Gb/s (PAM4) per lane, +/-100 ppm
- Fibre type: Multi-mode (VCSEL, 850nm)
- Electrical interface: SFF-8665 compliant QSFP56
- Management interface: SFF-8636 compliant I2C
- Supply voltage: Single 3.3V
- Power consumption: 5.0W typical per end, with retiming
- Storage temperature: -40 to 85 C
- Operating relative humidity: 5 to 85 %
- Hot pluggable: Yes
- Compliance: RoHS
- NVIDIA OPN: 980-9I45D-00H005
- Legacy OPN: MFS1S00-H005V
FAQs
Q: Which link types does this cable support?
A: It supports 200Gb InfiniBand HDR links and 200GbE links between SN3700 and SN4600 switches. Both ends use QSFP56 host ports.
Q: What power does the cable need?
A: It draws a single 3.3V supply from the host port. Typical consumption is 5.0W per end with retiming enabled.
Q: Why choose an AOC over a passive copper cable?
A: An active optical cable offers a longer reach, higher port density and better configurability than passive copper in data centre racks. This SKU is the 5m length.
Q: What fibre type and wavelength does it use?
A: It uses VCSEL-based 850nm multi-mode fibre, carrying four 50Gb/s PAM4 lanes.
Q: Can it be installed while the equipment is powered on?
A: Yes. The cable is hot pluggable, so it can be installed or replaced without powering down the host port.
