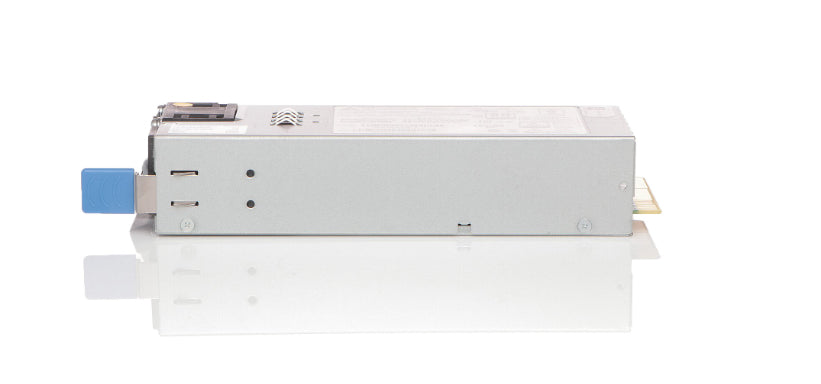

NVIDIA 930-9BPSU-00J4-000 | EDR Edge Switch 550W AC Power Supply, P2C Airflow
SKU:930-9BPSU-00J4-000
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a 550W hot-swappable AC power supply unit for NVIDIA (Mellanox) 1U EDR InfiniBand and Spectrum Ethernet edge switches. It is designed for data centre and HPC fabrics where a failed or ageing PSU needs replacing without taking the switch offline, or where a second supply is needed for redundancy.
The module delivers 550W AC output with power-to-connector (P2C, rear-to-front) airflow. Because it is a hot-plug plug-in module, it supports N+1 redundant operation in supported switch chassis. The airflow direction must match the fan modules fitted to the switch, and the C2P variant is a different part number. It replaces the earlier 460W MTEF-PSF-AC-A (930-9BPSU-00JX-000).
It is intended for the SB7700, SB7800 and SB7890 EDR InfiniBand switches, the SN2410, SN2700 and SN2740 Spectrum Ethernet switches, and the SX6710, SX1410 and SX1710 models.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, field-replaceable module
- Supports redundant N+1 power configuration in supported switches
- P2C airflow orientation to match rear-to-front fan modules
- Higher 550W rating than the 460W MTEF-PSF-AC-A it replaces
- Suited to 1U EDR InfiniBand and Spectrum Ethernet edge switches
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output power: 550W AC
- Module type: Hot-swappable, field-replaceable power supply
- Redundancy: N+1 in supported switch chassis
- Airflow: P2C (power side to connector side, rear-to-front)
- Legacy part number: MTEF-PSF-AC-I
- Replaces: MTEF-PSF-AC-A 460W (930-9BPSU-00JX-000)
FAQs
Q: Which switches is this power supply compatible with?
A: It fits NVIDIA/Mellanox SB7700, SB7800 and SB7890 EDR InfiniBand switches, SN2410, SN2700 and SN2740 Spectrum Ethernet switches, and SX6710, SX1410 and SX1710 models.
Q: What does P2C airflow mean and does it matter?
A: P2C means air flows from the power side to the connector side (rear-to-front). The PSU airflow must match the fan modules in the switch, as mixed directions are not supported. The C2P variant is a separate part number.
Q: Can I hot-swap this power supply?
A: Yes. It is a hot-plug module, so it can be replaced in a running switch when a second supply is installed for N+1 redundancy.
Q: Does it replace the older 460W PSU?
A: Yes. It supersedes the 460W MTEF-PSF-AC-A (930-9BPSU-00JX-000) and offers 550W output in the same P2C airflow orientation.
