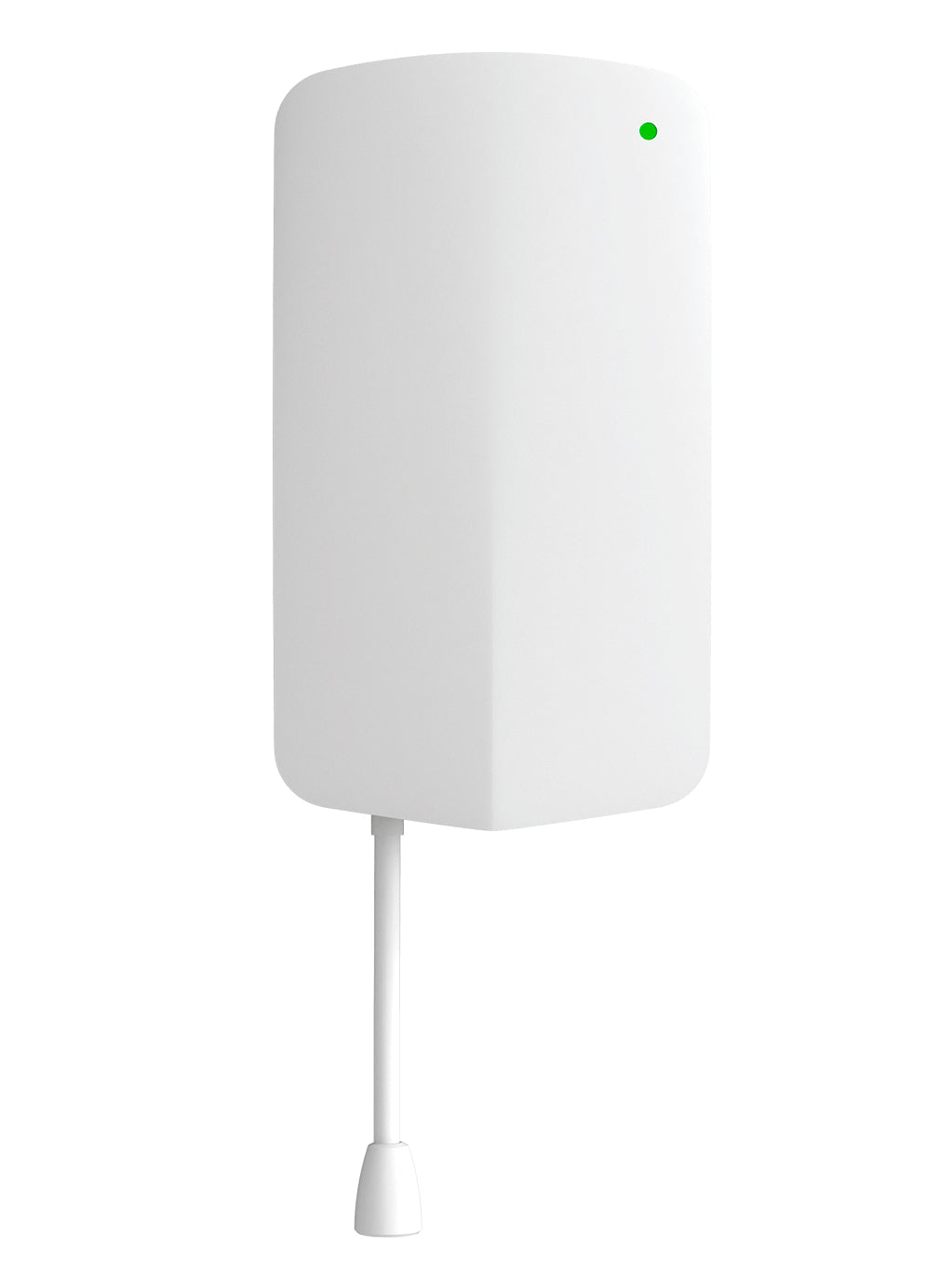

Meraki MT12-HW | MT Indoor Water Leak Sensor, BLE, Battery-Powered

MT12-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MT12 is an indoor water leak detection sensor from the Meraki MT Sensors range. It suits server rooms, wiring closets and other equipment spaces where leaks from failed HVAC systems, bad weather or leaky pipes can cause network downtime, equipment failure and product loss.

The sensor detects as little as 3 mL (a teaspoon) of water and runs on 2 x AA batteries for up to 5 years. It connects over Bluetooth Low Energy (802.15.1, BLE 4.2) in the 2.4 GHz band, samples every 2 minutes and reports to its gateway every 20 minutes or immediately on a state change. It is IPX5 rated and measures 117.1 x 65.9 x 26.0 mm.

The MT12 uses a Meraki MR access point or MV smart camera as its gateway, and it needs a leak accessory to sense water: the MA-CBL-LEAK-1 (8 ft / 2.4 m cable) or the MA-CBL-LEAK-2 (spot leak detection cradle). Each MT sensor also requires a LIC-MT-XY Meraki MT Enterprise licence to operate. An optional MA-PWR-USB-XX AC-to-USB-C adapter is available for mains power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Connects automatically to Meraki MR access points and MV cameras in the network
- Cloud-managed through the Meraki dashboard, with no on-premises server
- Flexible alerting via email, SMS and push notifications
- Trust Anchor module (TAm) authenticates the device and encrypts all communications
- Mounting options: wall plate, magnet, VHB tape and cable clips
- Data queryable via API and exportable as .csv and .xls
- User-replaceable AA batteries, with an optional USB-C AC adapter

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless: Bluetooth Low Energy
- Operating frequency: 2.400-2.4835 GHz
- IEEE standard: 802.15.1 (Bluetooth Low Energy 4.2)
- Compatible gateways: Meraki MR access points and MV smart cameras
- Water detection sensitivity: as little as 3 mL (a teaspoon) of liquid
- Power source: 2 x AA batteries (user-replaceable)
- Battery life: up to 5 years
- Power rating: 5 V; 0.2 A
- Optional power: MA-PWR-USB-XX AC-to-USB-C adapter (US, EU, UK, AU)
- Supported leak accessories: MA-CBL-LEAK-1 (8 ft / 2.4 m cable), MA-CBL-LEAK-2 (spot leak detection cradle)
- Data logging: sample polling every 2 minutes
- Data reporting: to gateway every 20 minutes or on state change
- Onboard storage: 4,000 data points (about 5 days at default sampling rate)
- Hardware: multicolour multifunction status LED, reset button, USB-C port, water leak detection plug (female connector)
- Ingress protection: IPX5
- Operating temperature: 0 to 55 C (32 to 131 F)
- Relative humidity: 0 to 95%
- Dimensions (L x W x H): 117.1 x 65.9 x 26.0 mm

FAQs

Q: Does the MT12 need a licence?
A: Yes. Each Meraki MT sensor requires a LIC-MT-XY Meraki MT Enterprise licence to operate, where X is 1, 3, 5 or 7 years. The MT12-HW SKU is the hardware only.

Q: What gateway does the MT12 connect through?
A: It connects over Bluetooth Low Energy to a Meraki MR access point or MV smart camera acting as a gateway, so at least one of these must be in range on your network.

Q: Which accessory do I need to detect water?
A: The MT12 needs a leak accessory: the MA-CBL-LEAK-1 8 ft (2.4 m) sensor cable or the MA-CBL-LEAK-2 spot leak detection cradle.

Q: How is the MT12 powered?
A: It runs on 2 x AA batteries for up to 5 years of battery life. An optional MA-PWR-USB-XX AC-to-USB-C adapter is available for mains power via the USB-C port.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
