Meraki MA-MNT-ANT-1 | Standard 8.7in (22cm) Antenna Mounting Arm, E/F Patch
SKU:MA-MNT-ANT-1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

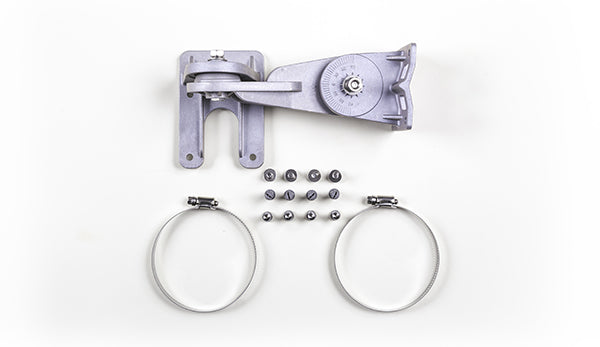

The Meraki MA-MNT-ANT-1 is a standard-length articulating mounting arm for Meraki E and F series patch antennas. It is intended for outdoor and external-antenna access points, such as the MR76, MR86 and MR46E, where a directional antenna needs to be fixed to a wall, ceiling or pole and aimed at the coverage area.
The arm measures 8.7 in (22 cm) and is the standard-length option in the range. It is steel and has 5 degree mounting marks, so the antenna angle can be set precisely and repeated across multiple installs. Hose clamps are supplied for pole mounting, and the arm can also be fixed to wall and ceiling surfaces. Dimensions are 220 x 111 x 80 mm and weight is 0.75 kg. It is a passive mechanical accessory, so there is no licence and no power requirement.
It works with the MA-ANT-3-E5 and MA-ANT-3-E6 wide patch antennas and the MA-ANT-3-F5 and MA-ANT-3-F6 narrow patch antennas. A longer 13 in (33 cm) version of the same arm is available as MA-MNT-ANT-2.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Articulating arm for flexible antenna aiming
- 5 degree mounting marks for precise coverage angles
- Supports wall, ceiling and pole mounting
- Hose clamps supplied for pole installation
- Steel construction for outdoor antenna installs
- Longer 13 in (33 cm) alternative available as MA-MNT-ANT-2
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Arm length: 8.7 in (22 cm)
- Product type: Antenna mounting arm
- Compatible antennas: MA-ANT-3-E5, MA-ANT-3-E6, MA-ANT-3-F5, MA-ANT-3-F6
- Angle adjustment: 5 degree mounting marks
- Mounting surfaces: wall, ceiling and pole (hose clamps for pole mounting)
- Dimensions (W x D x H): 220 x 111 x 80 mm
- Weight: 0.75 kg
- Material: Steel
- Licensing: None required
- Power: None, passive mechanical accessory
FAQs
Q: Which antennas does this mounting arm fit?
A: It fits the Meraki MA-ANT-3-E5 and MA-ANT-3-E6 wide patch antennas and the MA-ANT-3-F5 and MA-ANT-3-F6 narrow patch antennas.
Q: How does it differ from MA-MNT-ANT-2?
A: MA-MNT-ANT-1 is the standard arm at 8.7 in (22 cm). MA-MNT-ANT-2 is the same product with a longer 13 in (33 cm) arm.
Q: Can it be used with the C and D series omni antennas?
A: No. The C and D series omni antennas use the MA-MNT-ANT-3 and MA-MNT-ANT-4 mounts instead.
Q: Does it need a licence or power?
A: No. It is a passive mechanical accessory with no licence or power requirement.
Q: Where can it be mounted?
A: It can be fixed to walls and ceilings, and hose clamps are supplied for mounting to a pole.
