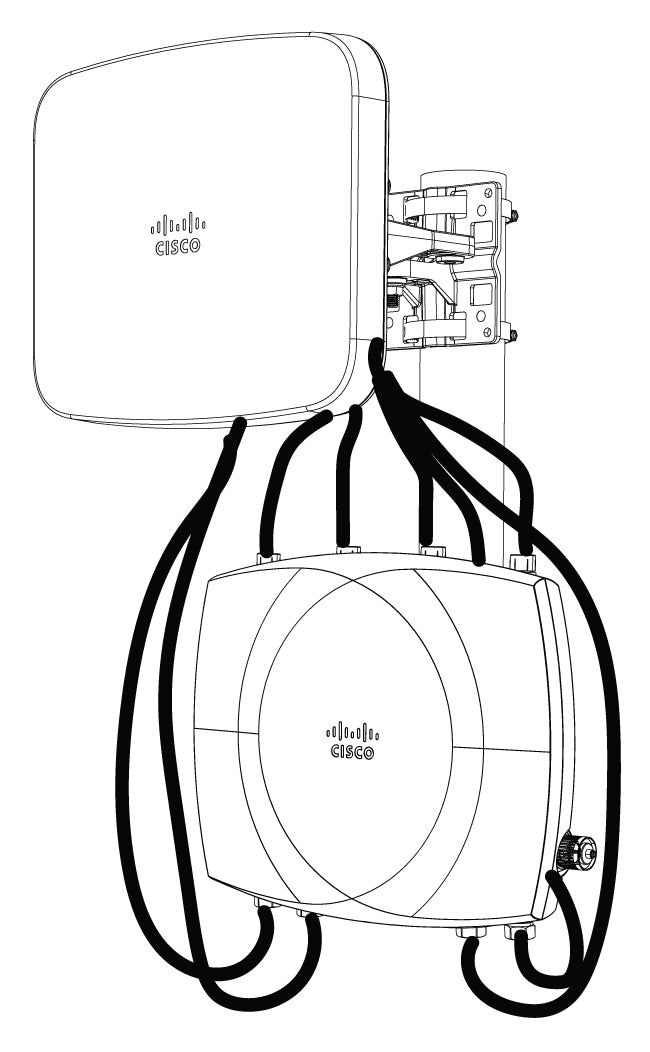

• Meraki cw-cab-004-n4-n4 dual 4x n-type antenna cable male to male 4ft connected to cisco wireless access point and outdoor unit
1 1

Cisco

Cisco CW-CAB-004-N4-N4 | Dual 4x N-Type Antenna Cable, Male-Male, 4ft, 8-Port

CW-CAB-004-N4-N4

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This dual 4x N-Type antenna cable is an 8-port bundled cable assembly for the Cisco Wireless 9177 Series. It connects the external-antenna CW9177E access point to the CW-ANT-T-D4-N tri-band directional antenna, and suits outdoor Wi-Fi 7 deployments such as stadiums, campuses, industrial sites and smart cities where the access point sits apart from its antenna.

The cable is 4 feet long and terminated with N-Type connectors, male-to-male. Two groups of four connectors give 8 ports in total, so a single bundled assembly covers all 8 antenna ports between the access point and the antenna. It is a passive cable and needs no power.

It is listed as an official accessory for the Cisco Wireless 9177 Series and is intended for use with the CW9177E and the CW-ANT-T-D4-N antenna. The cable itself needs no licence. The CW9177E it connects to uses the Cisco Networking Subscription licence, with on-premises, cloud (Meraki) or hybrid management.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single bundled cable assembly covering all 8 antenna ports between the access point and the antenna
- Listed as an official accessory for the Cisco Wireless 9177 Series
- Designed for the CW9177E external-antenna access point
- Supports the CW-ANT-T-D4-N tri-band directional antenna, which also feeds the accelerometer
- Passive design with no power or licence needed for the cable itself

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connectors: Dual 4x N-Type (8 ports total, bundled)
- Gender: Male-to-Male
- Length: 4 feet
- Intended connection: CW9177E access point to CW-ANT-T-D4-N antenna
- Cable type: Passive, no power required

FAQs

Q: Which access point and antenna does this cable connect?
A: It connects the Cisco Wireless CW9177E access point to the CW-ANT-T-D4-N tri-band directional antenna, which has 8x N-Type connections.

Q: Does this cable need a licence?
A: No. The cable itself needs no licence. The CW9177E access point it connects to uses the Cisco Networking Subscription licence, which covers on-premises, cloud (Meraki) or hybrid management.

Q: Does the cable need power?
A: No. It is a passive cable. The CW9177E access point is powered by 802.3bt/UPOE, 802.3at PoE+ or a DC adapter.

Q: What software does the 9177 Series require?
A: The 9177 Series runs Cisco IOS XE 26.2.1 or 26.1.3 or later, or Meraki MR 32.2.x or later.

Q: What does the 8-port bundle mean?
A: The assembly bundles two groups of four N-Type connectors into one cable, giving 8 ports in total so every antenna port between the access point and antenna is covered by a single assembly.
