• HPE ProLiant DL380 Gen10 server in MSA 2060 SAN storage array
1 1

HPE

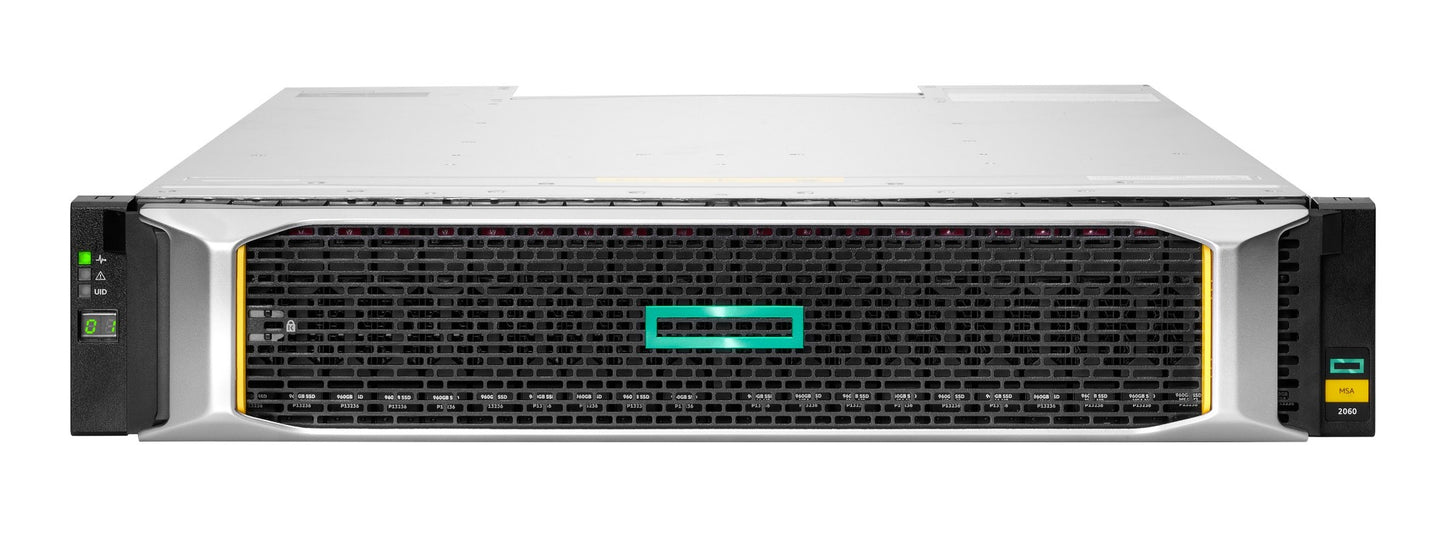

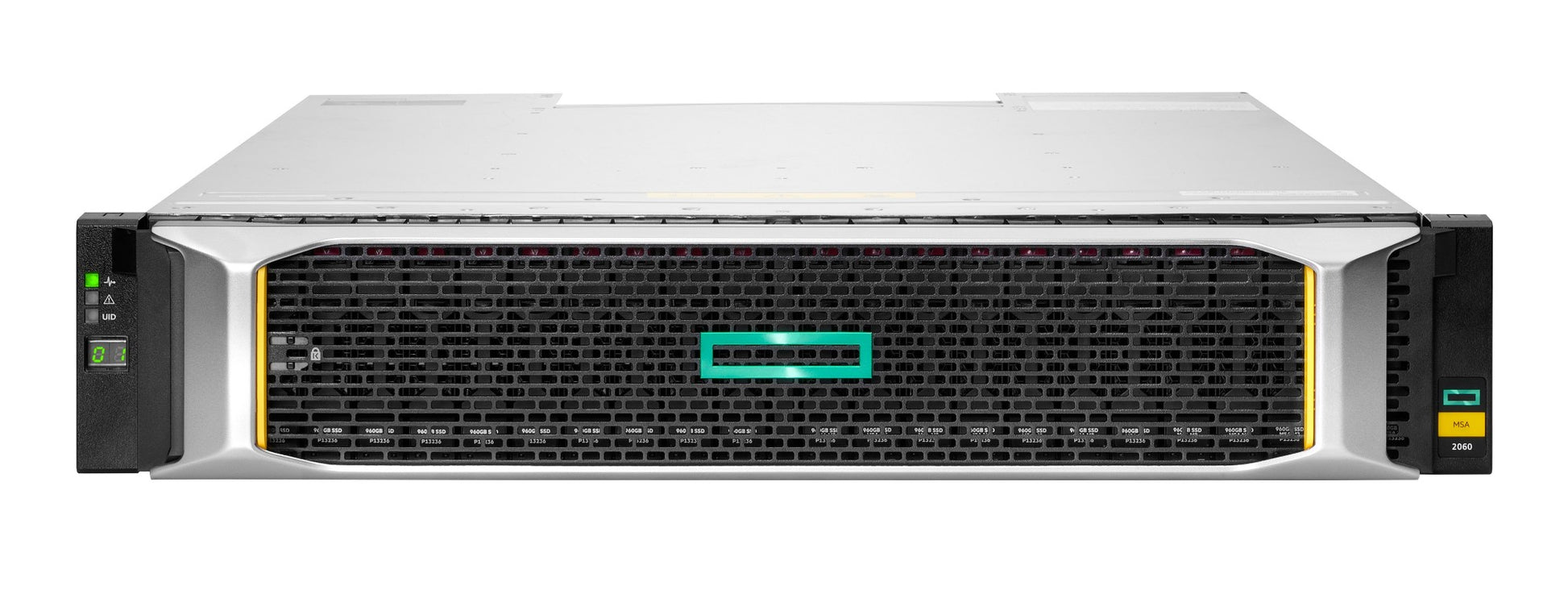

HPE S2E40B | MSA 2060 SFF 24-bay 2U, 10GbE iSCSI SAN, 23TB SSD flash, dual-controller, RAID 0/1/5/6/10, snapshots+tiering

S2E40B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

Scalable, easy-to-manage SFF SAN for virtualization, VDI, and general-purpose block storage. This MSA 2060 bundle delivers 23TB of raw all-flash capacity with 10GbE iSCSI host connectivity, dual-active controllers, and integrated data services such as snapshots, thin provisioning, and automated tiering. Redundant hardware ensures resiliency while a modern web UI accelerates deployment and operations.

Features

- Balanced performance and capacity with 23TB all-flash
- 10GbE iSCSI for straightforward, cost-effective SAN connectivity
- Dual-active controllers and redundant components for uptime
- Snapshots, thin provisioning, and automated tiering included
- Modern web-based management and REST/CLI automation
- Flexible growth with external expansion shelves

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model/Series: MSA 2060 (SFF)
- Form factor: 2U rack-mount
- Drive bays: 24 x 2.5 in SFF
- Included capacity: 23TB SSD (raw, bundle)
- Host connectivity: 10GbE iSCSI
- Controller architecture: Dual-active, redundant controllers
- Back-end expansion: 12Gb SAS for drive enclosures
- RAID levels: 0, 1, 5, 6, 10
- Data services: Thin provisioning, snapshots, virtualized automated tiering
- High availability: Redundant controllers, fans, and hot-plug PSUs
- Management: Web UI (SMU), CLI, REST
- Multipathing: ALUA/MPIO supported
- Typical use cases: Virtualization, VDI, databases, and departmental workloads
- Media type: Enterprise SSD (SFF 2.5 in)

FAQs

Q: Which environments is 10GbE iSCSI best suited for?
A: IP-based SANs where simplicity and cost efficiency are priorities, commonly for virtualization clusters and general-purpose workloads.

Q: Is the 23TB figure raw or usable?
A: It is raw installed SSD capacity; usable capacity depends on RAID and data reduction settings.

Q: Are rail kits, cables, and SFPs included?
A: Mounting kits and optics/cables may be required and are typically ordered separately.

Q: Can this array be expanded?
A: Yes. Add expansion enclosures via the 12Gb SAS back-end to scale capacity as needs grow.

Q: Does it support REST or automation?
A: Yes. Management is available via Web UI, CLI, and REST for automation workflows.
