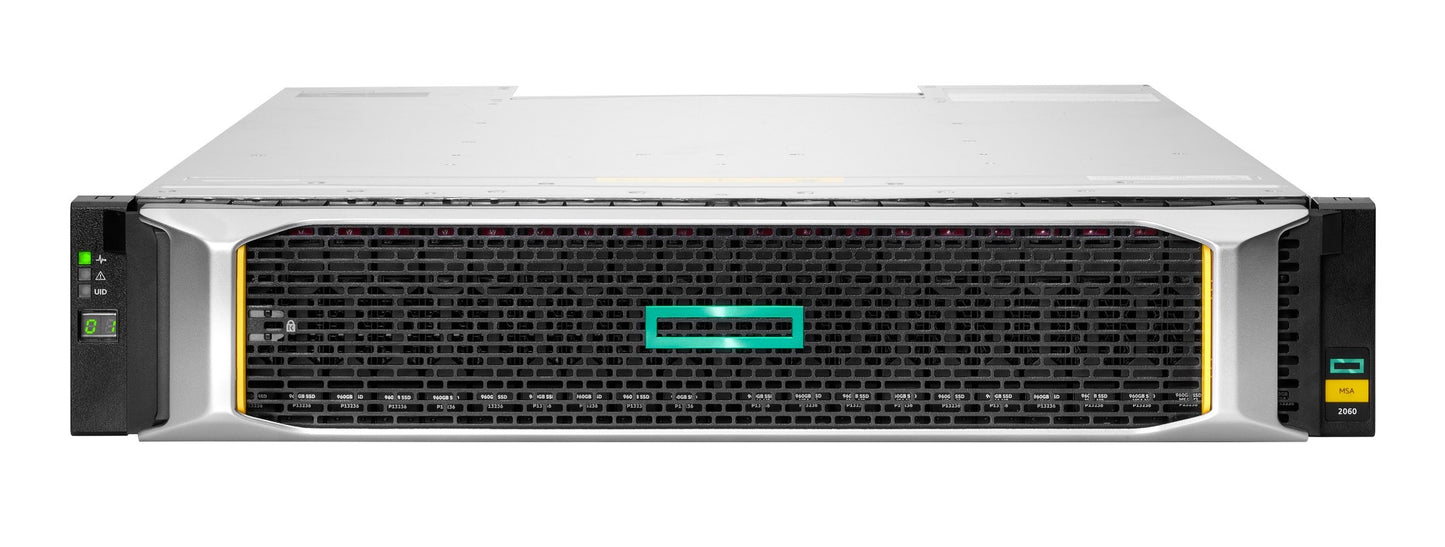

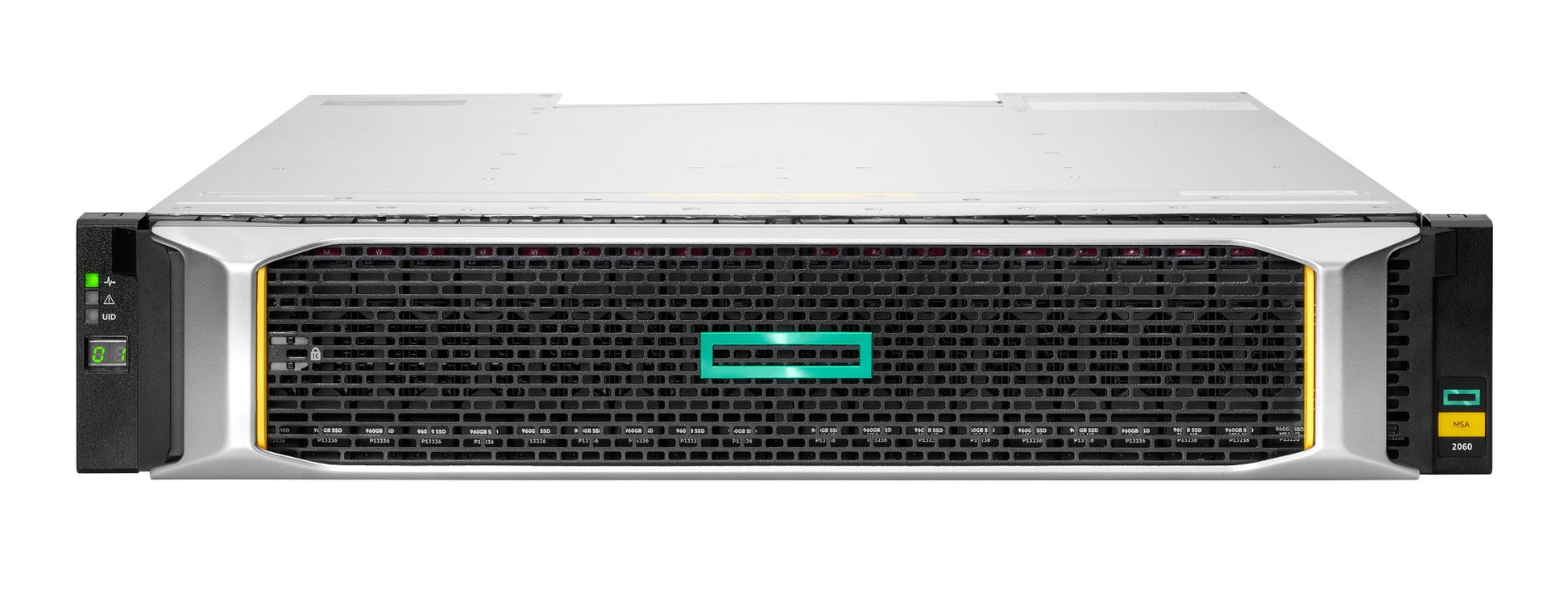

HPE S2E37B | MSA 2060 SFF 24-Bay SAN Array, 16Gb FC, 12x 960GB SSD

SKU:S2E37B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE MSA 2060 is a 2U small-form-factor SAN storage array built for affordable shared storage and application acceleration in small and medium businesses and remote or branch offices. This 12TB Flash Bundle pairs dual Fibre Channel controllers with 12 x 960GB SSDs, giving you a flash-ready starting point on the MSA Gen6 platform.

The chassis provides 24 x 2.5-inch SFF drive bays on a 12Gb/s SAS back end, so you can grow capacity with further HDD or SSD media. Host connectivity is 16Gb Fibre Channel across 8 host ports, with RAID support and SAN backup support. HPE quotes up to 395,000 IOPS for the MSA 2060, and automated tiering moves the hottest data to the fastest media in real time. Hybrid or all-flash layouts can be chosen on day one and expanded as needs change.

The array supports HDD and SSD media and is certified for use with HPE Morpheus VM Essentials Software. It is TAA compliant and manageable over SNMP, SMI-S, SSH, HTTPS and other standard protocols.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 395,000 IOPS, which HPE states is up to 80% faster than the prior generation
- Hybrid or all-flash configurations can be chosen on day one and grown as needs change
- Automated tiering moves the hottest data to the fastest media in real time
- Dual controllers for shared SAN storage with RAID protection
- Designed to be easy to install and manage without a dedicated storage administrator
- Certified for HPE Morpheus VM Essentials Software
- 16Gb Fibre Channel host connectivity for SAN fabrics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack-mount
- Drive bays: 24 x 2.5-inch SFF
- Drives installed: 12 x 960GB SSD
- Installed SSD capacity: 11.25 TB
- Drive interface: 12Gb/s SAS, supports HDD and SSD
- Controllers: 2 x Fibre Channel
- Host connectivity: 16Gb Fibre Channel
- Host ports: 8 Fibre Channel
- RAID supported: Yes
- Network (RJ-45) ports: 2
- Performance: up to 395,000 IOPS (HPE claim)
- Management protocols: SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet
- SAN backup support: Yes
- Height: 3.5 in
- Width: 19 in
- Depth: 26.4 in
- TAA compliant: Yes
- Manufacturer part number: S2E37B

FAQs

Q: What drives come installed in the S2E37B?
A: This bundle has 12 x 960GB SSDs installed, about 11.25 TB of raw flash capacity. The remaining bays of the 24-bay chassis are available for additional drives.

Q: Which drive types does it support?
A: The 12Gb/s SAS back end supports both HDD and SSD media in the 2.5-inch SFF bays, so you can run hybrid or all-flash layouts.

Q: What host connectivity does it use?
A: This SKU uses dual Fibre Channel controllers with 16Gb Fibre Channel host ports, for connection into a Fibre Channel SAN fabric.

Q: How does this SKU differ from other MSA 2060 bundles?
A: It is the 16Gb Fibre Channel, SFF 24-bay model with 12 x 960GB SSDs, sold as the 12TB Flash Bundle. Other MSA 2060 bundles differ by host protocol, drive form factor and drive configuration.

Q: Does it work with HPE Morpheus VM Essentials Software?
A: Yes. MSA Gen6 arrays are certified for use with HPE Morpheus VM Essentials Software.
