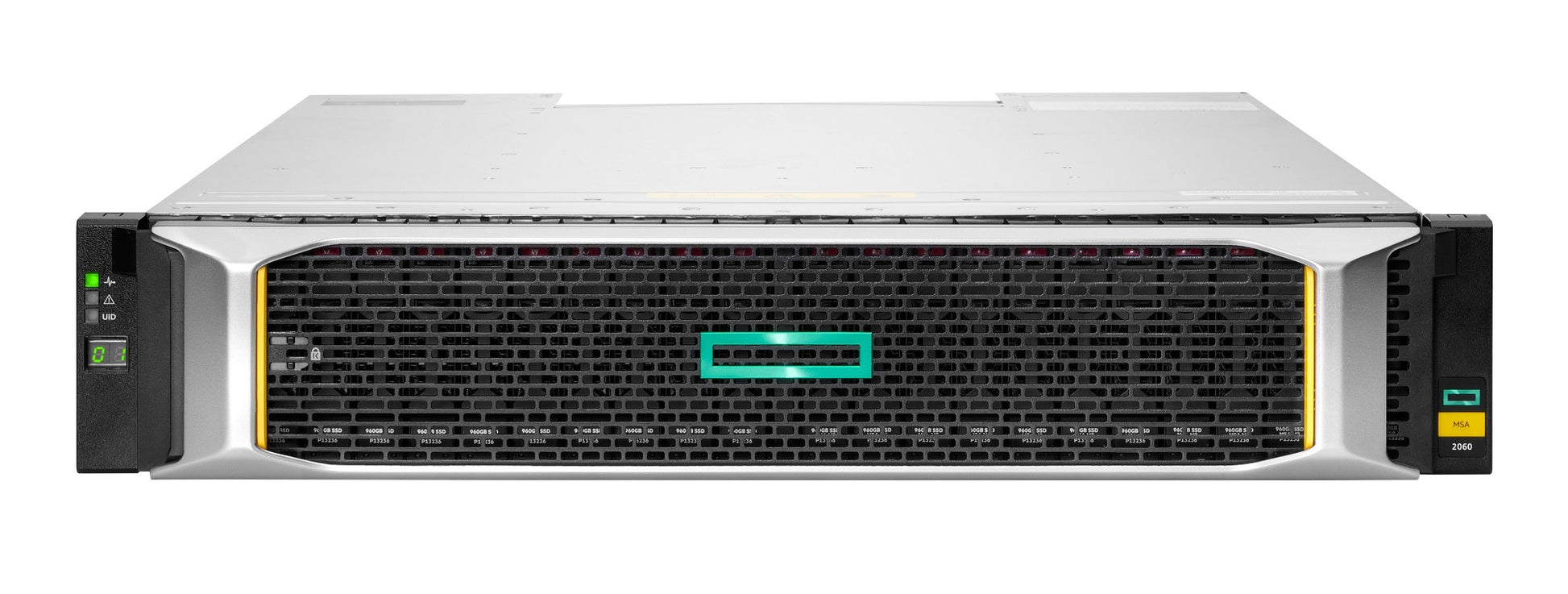

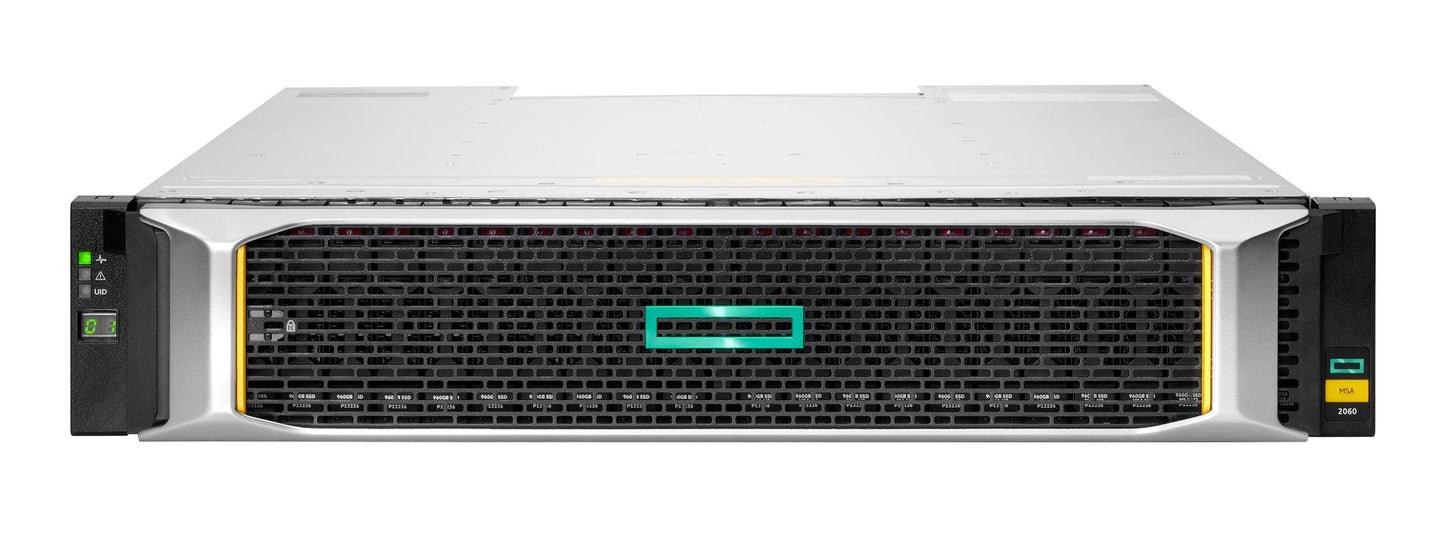

• HPE R7J73B Dual-Controller iSCSI 24-Bay SFF Storage Server
1 1

HPE

HPE R7J73B | MSA 2060 24-Bay SFF SAN Array, 8x 10GBASE-T iSCSI

R7J73B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The MSA 2060 is an entry-level 2U hybrid-flash SAN storage array with a 24-bay small form factor chassis and dual active-active controllers. Each controller provides four integrated 10GBASE-T RJ-45 iSCSI ports, giving eight host ports in total without the need for SFP optics. It suits small and medium-sized businesses that need shared block storage with snapshots and replication, and it can be expanded with additional SFF or LFF disk enclosures over 12Gb SAS.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtualised snapshot technology for data protection and instant recovery
- Remote replication over Fibre Channel or iSCSI for disaster recovery
- Encrypted SSDs and HDDs with local key management for a secure hybrid flash array
- Flexible, modular growth from any combination of SSD, Enterprise SAS and Midline SAS drives
- Integrated RJ-45 10GBASE-T ports avoid SFP costs
- Customer self-installable, self-repairable and self-upgradeable
- Health Check analytics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack-mountable SFF chassis with up to 24 x 2.5-inch SFF HDD/SSD bays
- 2 x MSA 2060 10GBASE-T iSCSI controllers, 4 ports each
- 8 x 10GBASE-T RJ-45 iSCSI host ports in total
- Dual hot-swappable active/active controllers
- RAID levels supported: RAID 0, 1, 5, 6, 10 and MSA-DP+
- 12Gb SAS expansion ports
- Expandable to 9 additional enclosures, mixing 24-bay SFF and 12-bay LFF enclosures
- Maximum capacity with expansion: 1843.2 TB (SFF) / 2344.32 TB (LFF)
- Maximum 512 volumes, 512 snapshots and 512 hosts; 1024 initiators
- Two AC power supplies included
- Energy Star certified; USGv6 certified

FAQs

Q: Do I need SFP transceivers for the host ports?
A: No. This model uses integrated 10GBASE-T RJ-45 iSCSI ports, so standard copper Ethernet cabling connects directly and no SFPs are required.

Q: How many host ports does this array provide?
A: It has two controllers with four 10GBASE-T RJ-45 iSCSI ports each, giving eight host ports in total.

Q: Can the capacity be expanded?
A: Yes. The array can be expanded with up to 9 additional enclosures over 12Gb SAS, mixing 24-bay SFF and 12-bay LFF enclosures.

Q: Which RAID levels are supported?
A: The array supports RAID 0, 1, 5, 6, 10 and MSA-DP+.

Q: How does this differ from other MSA 2060 variants?
A: This variant has the 24-bay SFF chassis with 10GBASE-T iSCSI host ports and is non-TAA. Other variants use different host interfaces or chassis types.
