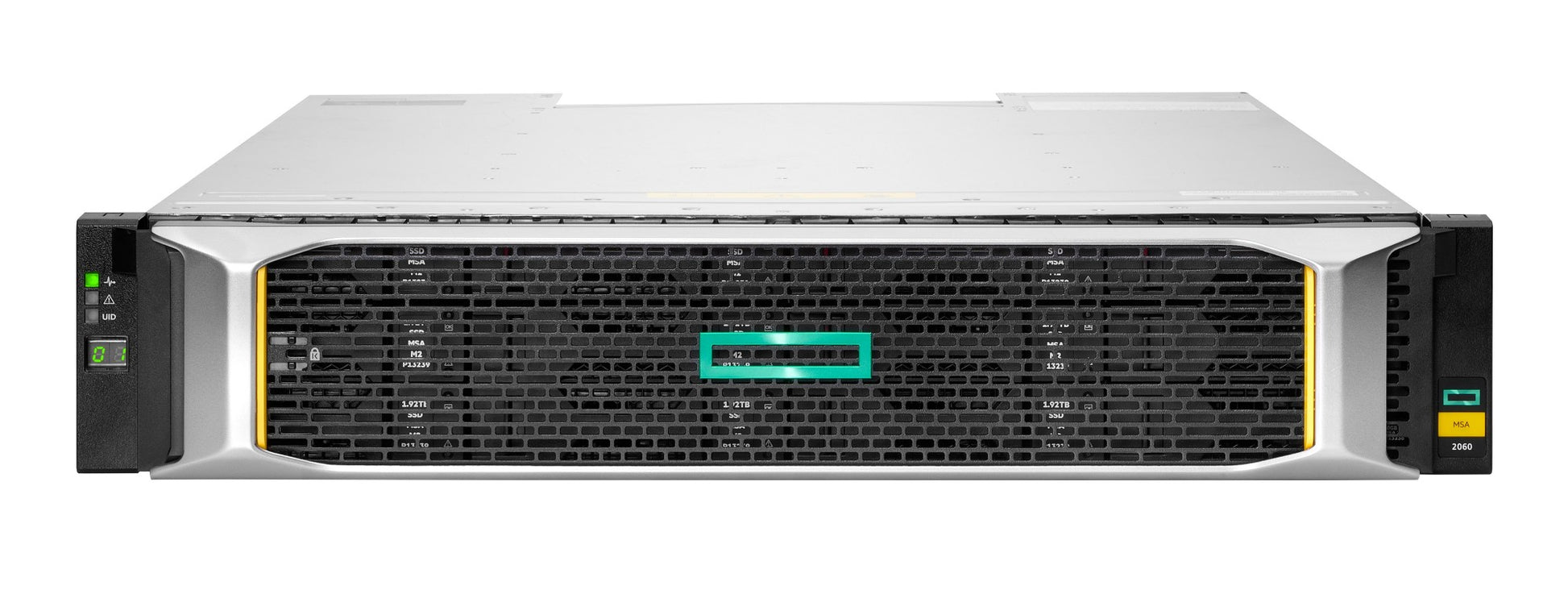

HPE R7J72B | MSA 2060 12-Bay LFF Storage Array, 8x 10GBase-T iSCSI

R7J72B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The HPE MSA 2060 10GBase-T iSCSI is a 2U hybrid-flash SAN storage array with a 12-bay large form factor chassis and two active/active controllers. Each controller provides four integrated 10GBase-T RJ-45 iSCSI ports, giving eight host ports in total and removing the need for SFP transceivers. It suits small and mid-sized businesses and remote offices that need shared block storage with snapshots, replication and room to expand with additional LFF or SFF drive enclosures.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtualized snapshot technology for data protection and instant recovery
- Remote replication over Fibre Channel or iSCSI for disaster recovery
- Supports a mix of SSDs, Enterprise SAS HDDs and Midline SAS HDDs
- Encrypted SSDs and HDDs with local key management
- Mixed LFF/SFF expansion enclosures
- Integrated RJ-45 copper ports remove the cost of SFPs
- Certified for use with HPE Morpheus VM Essentials Software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack, LFF chassis with 12 x 3.5" drive bays
- 2 x hot-swappable active/active controllers
- 8 x 10GBase-T iSCSI host ports in total (4 RJ-45 ports per controller), no SFPs required
- RAID levels: RAID 0 (read cache only), 1, 5, 6, 10, MSA-DP+
- 24GB data cache plus system memory per array
- Up to 395,000 random read IOPS
- Expansion: up to 9 additional LFF/SFF drive enclosures (10 enclosures in total including the array)
- Maximum 120 LFF or 240 SFF drives per array
- Raw capacity up to about 2.4PB with all-LFF expansion
- Maximum read cache per array: 8TB
- Two pools of 1PB each
- Dimensions: 8.9 x 44.5 x 50.8 cm
- Weight: 5kg
- Energy Star compliant
- Supplied with chassis, two controllers, two AC power supplies, two 1.5m power cords and a rack-mount kit; no drives included

FAQs

Q: Do I need SFP transceivers to connect this array to my network?
A: No. Each controller has four integrated 10GBase-T RJ-45 iSCSI ports, so hosts connect over standard copper Ethernet cabling without SFP transceivers.

Q: Are drives included with the R7J72B?
A: No. The array is supplied with the chassis, two controllers, two AC power supplies, two 1.5m power cords and a rack-mount kit. Drives are purchased separately.

Q: Which drive types does the MSA 2060 support?
A: It supports a mix of SSDs, Enterprise SAS HDDs and Midline SAS HDDs, including encrypted SSDs and HDDs with local key management.

Q: How can I expand the storage capacity?
A: You can add up to 9 additional LFF or SFF drive enclosures, giving 10 enclosures in total including the array, with a maximum of 120 LFF or 240 SFF drives per array.

Q: Which RAID levels are supported?
A: The array supports RAID 0 (read cache only), RAID 1, 5, 6, 10 and MSA-DP+.
