HPE

HPE R7J71B | MSA 2062 10GBASE-T iSCSI SFF Storage, 2x 1.92TB SSD

R7J71B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

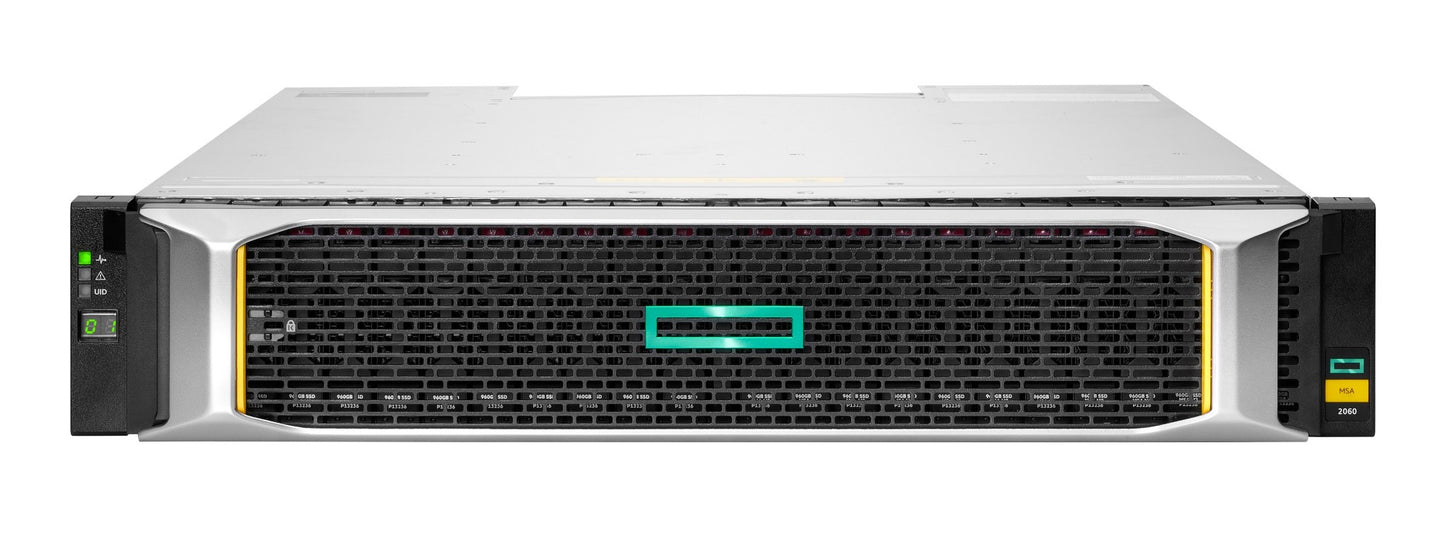

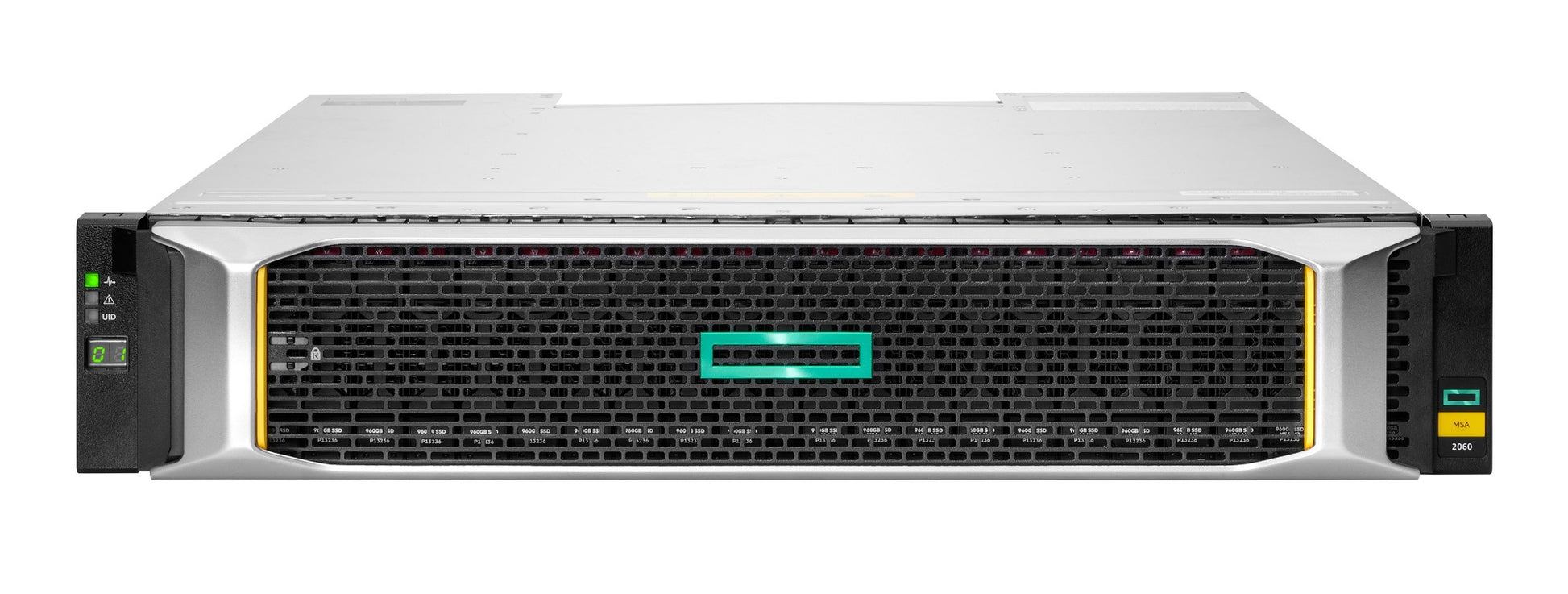

The MSA 2062 is a 2U small-form-factor SAN storage array with dual active/active controllers and 8 integrated 10GBASE-T (RJ-45) iSCSI host ports, with no SFPs required. This 24-bay SFF model includes 2 x 1.92 TB SSDs (3.84 TB installed) with the Advanced Data Services suite preinstalled for automated tiering, snapshots and replication. It suits SMB and branch deployments needing hybrid-flash block storage that can scale through SAS expansion enclosures.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Advanced Data Services licence preinstalled, covering automated tiering, snapshots and replication
- Dual hot-swappable active/active controllers for high availability
- Battery-free cache backup using super capacitors and MMC
- Next-generation RAID offload ASIC and processor
- Supports encrypted SSDs and HDDs with local key management
- Mixed SSD, Enterprise SAS and Midline SAS drive support
- Integrated 10GBASE-T iSCSI connectivity over standard RJ-45 copper cabling
- Designed for management by IT generalists without a dedicated storage administrator

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: HPE MSA 2062 10GBASE-T iSCSI SFF Storage
- Form factor: 2U rack-mount, SFF (2.5-inch) chassis with 24 drive bays
- Controllers: 2 x MSA 2060 10GBASE-T iSCSI controllers (dual hot-swappable, active/active)
- Host ports: 8 x 10GBASE-T (RJ-45) iSCSI, 4 per controller, auto-negotiating down to 1Gb
- Included drives: 2 x 1.92 TB Read Intensive SSD (3.84 TB installed)
- System cache: 24 GB
- Expansion: 12Gb SAS expansion ports, up to 9 additional drive enclosures (SFF and/or LFF)
- Maximum capacity: up to 240 SFF drives, or 24 SFF + 108 LFF drives
- Performance: up to 395,000 IOPS
- Supported RAID levels: 0, 1, 5, 6, 10
- Dimensions (H x W x D): 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Weight: approx. 5 kg (11 lb)
- Compliance: ENERGY STAR and TAA compliant
- Included: 2 AC power supplies, 2 x 1.5 m PDU cords, rack-mount kit

FAQs

Q: Do I need SFP transceivers to connect the host ports?
A: No. The 8 host ports are 10GBASE-T (RJ-45) iSCSI ports that use standard copper Ethernet cabling, so no SFPs are required. They also auto-negotiate down to 1Gb.

Q: How many drives and how much capacity can the array scale to?
A: The 24-bay SFF chassis can be expanded with up to 9 additional drive enclosures over 12Gb SAS, reaching up to 240 SFF drives or 24 SFF plus 108 LFF drives.

Q: What storage is included with this SKU?
A: It includes 2 x 1.92 TB Read Intensive SSDs, giving 3.84 TB installed, along with the Advanced Data Services software suite preinstalled.

Q: Which RAID levels are supported?
A: RAID 0, 1, 5, 6 and 10 are supported.

Q: Can I mix SSD and hard drives in this array?
A: Yes. The MSA 2062 supports mixed SSD, Enterprise SAS and Midline SAS drives, with Advanced Data Services providing automated tiering across them.
