HPE

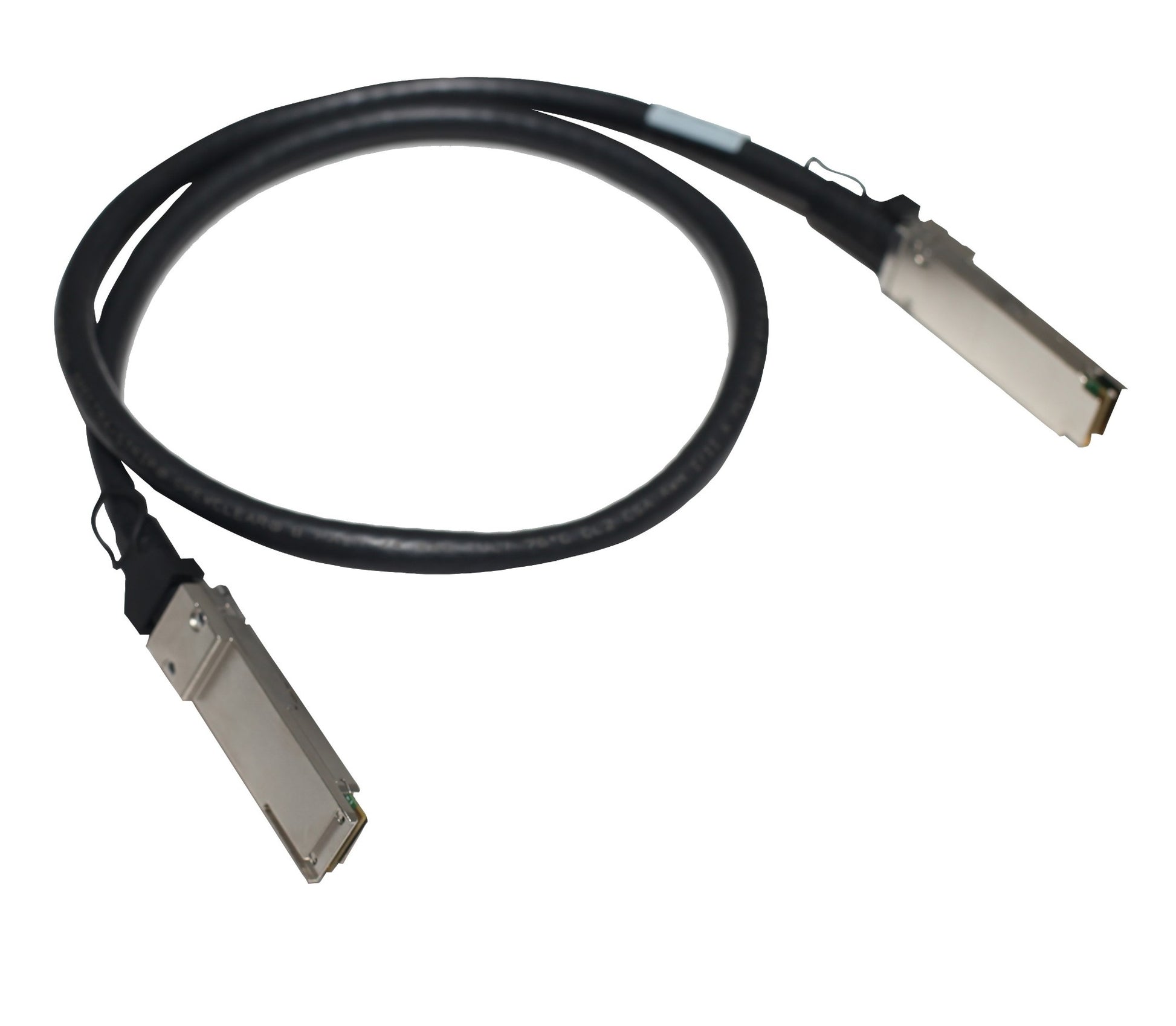

HPE R5Z79A | 200GbE QSFP56 Direct Attach Copper Cable, 2.5m

SKU:R5Z79A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This HPE 200GbE QSFP56 to QSFP56 direct attach copper cable is built for short-reach 200GbE links, such as a server NIC to a top-of-rack switch or a switch-to-switch interconnect within a rack or between adjacent racks. It belongs to the HPE 200Gb QSFP56 DAC range, which is offered in 0.5 m, 1 m, 2 m and 2.5 m lengths, and this SKU is the 2.5 m version.

The cable is a passive copper assembly with a QSFP56 connector on each end, carrying 4 x 50 Gb/s PAM4 lanes for a total of 200 Gb/s. It is powered from the host port and draws a maximum of 0.1 W, with a maximum operating temperature of 70 C. Because it uses copper media, it has no optical wavelength or TX and RX power figures.

It is intended for 200GbE QSFP56 ports on HPE switches and adapters. The NVIDIA and HPE OEM reference guide cross-references this part to NVIDIA MCP1650-V02AE26, and the HPE Networking Transceiver Options QuickSpecs lists platform-specific support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 200GbE connectivity over copper in the QSFP56 form factor
- Passive direct attach design for short-reach switch-to-switch and switch-to-server links
- Very low power draw, 0.1 W maximum
- 4 x 50 Gb/s PAM4 lanes for 200 Gb/s throughput
- Part of the HPE 200Gb QSFP56 DAC range in 0.5 m, 1 m, 2 m and 2.5 m lengths
- Cross-referenced to NVIDIA part MCP1650-V02AE26

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: R5Z79A
- Description: HPE 200Gb QSFP56/QSFP56 2.5m DAC
- Category: 200GbE
- Type: Direct attach copper cable (DAC)
- Connector form factor: QSFP56 to QSFP56
- Connector dimensions: 18.3 x 8.5 x 72.4 mm, around 120 mm long with pull tab
- Media: Copper
- Speed: 4x50 PAM4 (Gb/s), 200 Gb/s total
- Length: 2.5 m
- Maximum power: 0.1 W
- Maximum temperature: 70 C
- Wavelength: not applicable
- TX and RX power: not applicable

FAQs

Q: How far can this cable reach?
A: This SKU is a 2.5 m cable, suited to links within a rack or between adjacent racks. For other distances, the HPE 200Gb QSFP56 DAC range also includes 0.5 m, 1 m and 2 m lengths.

Q: Does it need external power?
A: No. It is a passive cable powered from the host port, with a maximum power draw of 0.1 W.

Q: Which ports does it connect to?
A: It connects 200GbE QSFP56 ports on HPE switches and adapters. Platform-specific support is listed in the HPE Networking Transceiver Options QuickSpecs.

Q: Is there an equivalent NVIDIA part number?
A: Yes. The NVIDIA and HPE OEM reference guide cross-references this SKU to NVIDIA part MCP1650-V02AE26.

Q: How does this differ from the other lengths in the range?
A: The cable type and speed are the same across the range. This SKU is the 2.5 m version, alongside the 0.5 m, 1 m and 2 m options.
