HPE

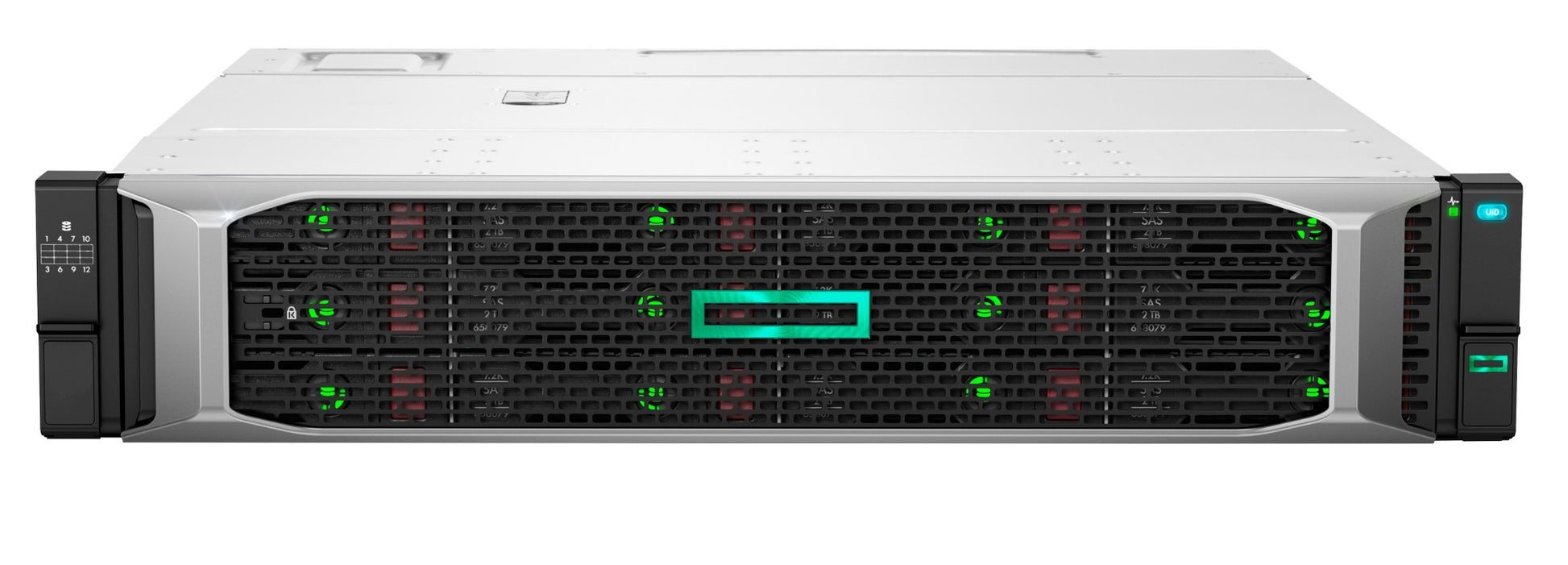

HPE Q1J09B | 12-bay LFF 3.5in | 2U SAS 12Gb JBOD | dual I/O modules, mini-SAS HD (SFF-8644) | hot-swap bays, redundant power/cooling

SKU:Q1J09B

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Expand rack storage with a 2U, 12-bay large-form-factor JBOD enclosure designed for high-throughput 12Gb SAS. Dual I/O modules and redundant cooling/power deliver resilient, dual-path connectivity. Supports hot-swap 3.5-inch SAS HDDs/SSDs and daisy-chain expansion for scalable capacity.

Features

High-density 12-bay LFF expansion in a compact 2U chassis
- 12Gb SAS for low-latency, high-throughput storage connectivity
- Dual I/O modules enable resilient, multi-path configurations
- Hot-swap drives, power supplies, and fans for serviceability
- Standards-based SES enclosure monitoring and alerts
- Scalable design with SAS daisy-chaining support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What type of drives does the enclosure support?
A: 3.5-inch SAS HDDs and SAS SSDs in hot-swap trays.

Q: Do I need a separate SAS controller to connect this enclosure?
A: Yes. Use an external SAS HBA or RAID controller with mini-SAS HD (SFF-8644) ports.

Q: What cabling is required?
A: External mini-SAS HD (SFF-8644) cables from the host adapter to the enclosure I/O modules.

Q: Can I mix SSDs and HDDs in the same enclosure?
A: Yes, the enclosure allows mixed media; final support and array policies depend on the attached SAS/RAID controller.

Q: Is dual-path connectivity supported?
A: Yes, with dual I/O modules you can cable redundant paths from supported controllers.

Technical Specifications

Drive bays: 12 x LFF (3.5-inch), hot-swap
- Interface: 12Gb/s SAS; external mini-SAS HD (SFF-8644)
- Form factor: 2U rack-mount JBOD
- Controllers: Dual active I/O modules for redundant paths
- Cooling/Power: Hot-plug, redundant
- Enclosure management: SES over SAS
- Drive support: 3.5-inch SAS HDD/SSD
- Expansion: Daisy-chain multiple enclosures over SAS
