HPE Q1C17A | UPS Network Management Module, 1GbE RJ-45, SNMP

SKU:Q1C17A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

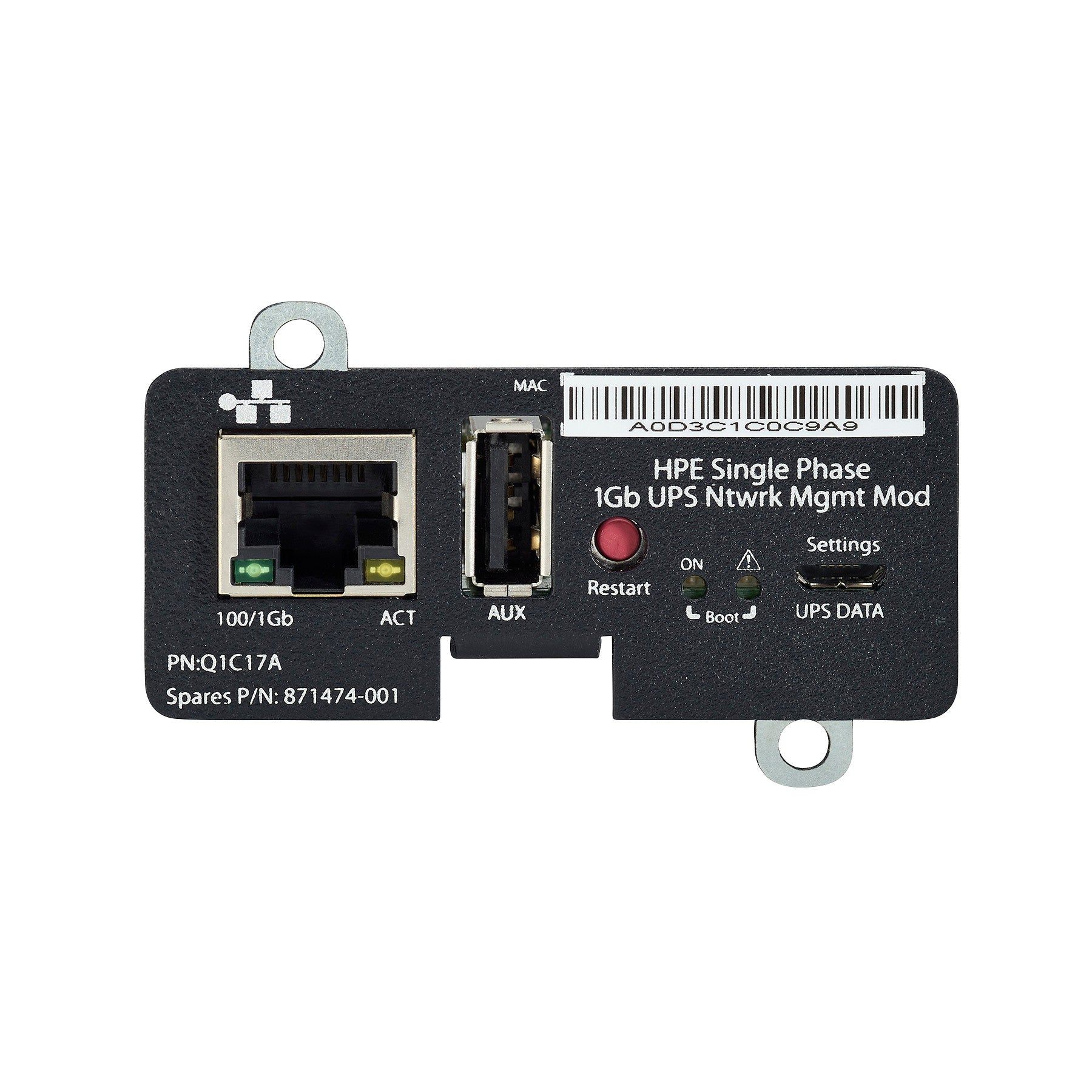

This single-phase UPS network management module is a plug-in option card for compatible HPE rackmount and tower UPS units. It connects the UPS directly to your network so it can be configured, monitored and controlled remotely from a standard web browser, which suits server rooms and office IT environments where power events need to be visible without being on site.

It provides one RJ-45 Gigabit Ethernet port running at 100Mb or 1Gb, along with a serial and AUX port, a restart button and status LEDs. SNMP support allows the UPS to be polled by existing network monitoring tools, and management is handled through HPE Power Protector software with detailed system logging. It supports a single UPS configuration as well as a dual redundant UPS setup, avoiding a single point of failure.

The module is designed for the HPE T750 G5, T1000 G5 and T1500 G5 UPS models and works with HPE Power Protector and HPE Systems Insight Manager. It is powered by the host UPS it is installed in, so no separate power supply is needed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Remote configuration and management of the UPS from anywhere via a standard web browser
- Supports a single UPS configuration or a dual redundant UPS configuration for no single point of failure
- Works with HPE Power Protector software for local and remote monitoring and control
- Compatible with HPE Systems Insight Manager
- SNMP support for integration with network monitoring tools
- Detailed system logging
- Serial and AUX port plus status LEDs and restart button for local management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: UPS network management module
- Form factor: Option installed in UPS
- Network ports: 1 x RJ-45
- Ethernet technology: Gigabit Ethernet (100Mb/1Gb)
- Serial port: Yes
- Interface extras: AUX port, restart button, status LEDs
- Protocols: SNMP
- Management: UPS monitoring
- Management software: HPE Power Protector (web-based)
- Power distribution: Single phase
- Supported UPS output range: 1k to 5kVA
- Compatibility: HPE UPS T750 G5, T1000 G5, T1500 G5
- Power source: Powered by the host UPS

FAQs

Q: Which UPS models does this module work with?
A: It is designed for the HPE T750 G5, T1000 G5 and T1500 G5 UPS units, which are single-phase models in the 1k to 5kVA range.

Q: Does it need a licence or subscription?
A: No licence or subscription is required. Management is handled through HPE Power Protector software.

Q: Does it need its own power supply?
A: No. The module is installed in the UPS and is powered by the host UPS.

Q: Can it be used in a redundant UPS setup?
A: Yes. It supports both a single UPS configuration and a dual redundant UPS configuration, so there is no single point of failure.

Q: What network speed does the port support?
A: The single RJ-45 port is Gigabit Ethernet and runs at 100Mb or 1Gb.
