HPE

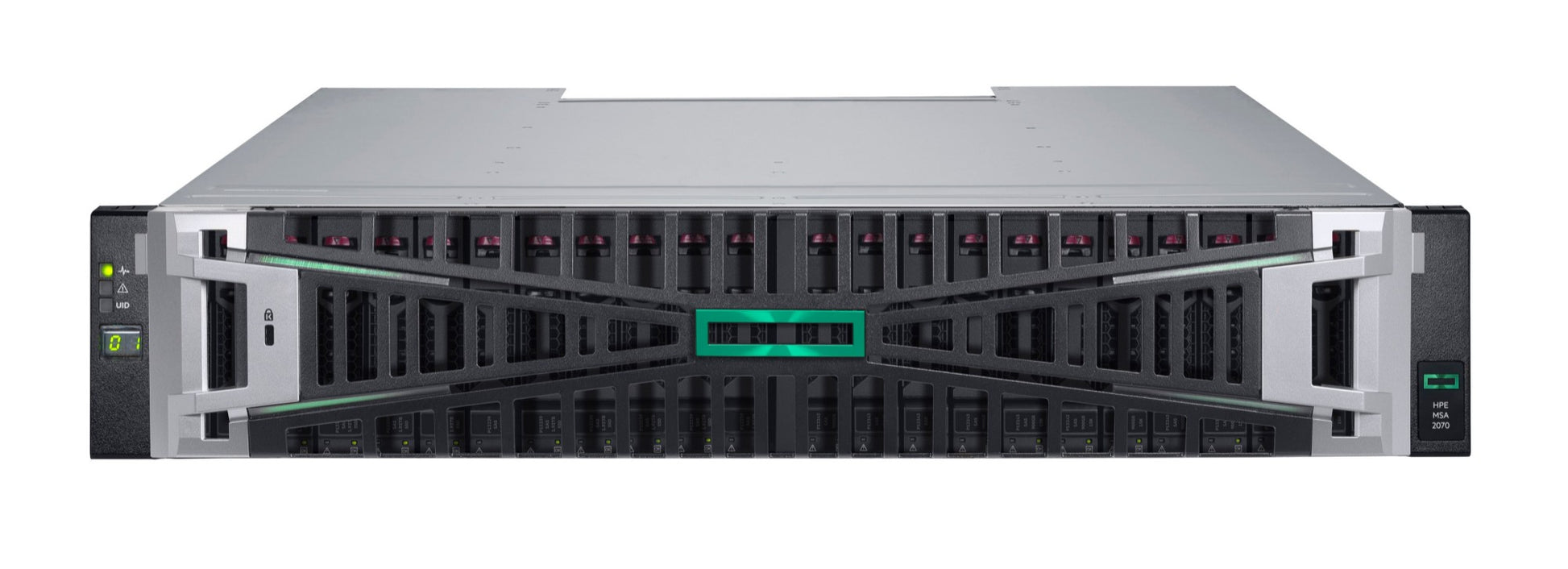

HPE P84178-B25 | Dual-controller SFF array; 12Gb SAS host (4 ports/ctrl); 12x 1.92TB SSD ≈23TB raw; 24 SFF bays (12 populated); 2U; RAID 0/1/5/6/10

SKU:P84178-B25

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-availability SFF storage array with dual active/active controllers and 12Gb SAS host connectivity. Ships populated with 12x 1.92TB enterprise SSDs (≈23TB raw) in a 2U chassis with 24 SFF bays (12 open for growth). Flexible RAID protection, thin provisioning, and snapshot capabilities deliver performance and resiliency for virtualized and database workloads. Ideal for direct-attached or SAN environments using 12Gb SAS HBAs with multipathing.

Features

- Dual active/active controllers for high availability
- 12Gb SAS host connectivity with 8 total host ports
- Enterprise SSDs for low latency and high IOPS
- Thin provisioning and snapshots for efficient capacity use
- Redundant hot-swappable power supplies and drives
- 24-bay SFF chassis with headroom for growth

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How do hosts connect to this array?
A: Via 12Gb SAS HBAs with multipath I/O; each controller provides four SAS host ports.

Q: Can I expand capacity later?
A: Yes. The chassis has 24 SFF bays with 12 currently populated; additional drives can be added and grouped into new or existing RAID sets.

Q: Are snapshots and replication included?
A: Snapshots are supported out of the box; remote replication and some advanced features may require additional licenses.

Q: Can I mix SSDs and HDDs?
A: The platform supports mixed media, but pools/tiers should follow best practices for performance and endurance.

Technical Specifications

- Series: MSA 2070 SFF
- Chassis: 2U rack-mount
- Drive bays: 24x 2.5" SFF (12 populated)
- Included drives: 12x 1.92TB SSD (≈23.0TB raw)
- Controllers: 2x active/active
- Host interface: 12Gb SAS
- Host ports: 4 per controller (8 total)
- RAID levels: 0, 1, 5, 6, 10
- Data services: thin provisioning, snapshots (replication optional/licensable)
- Power: dual hot-swappable PSUs
- Management: web GUI and CLI
- Typical use: DAS or SAS SAN for virtualization, databases, and mixed workloads
