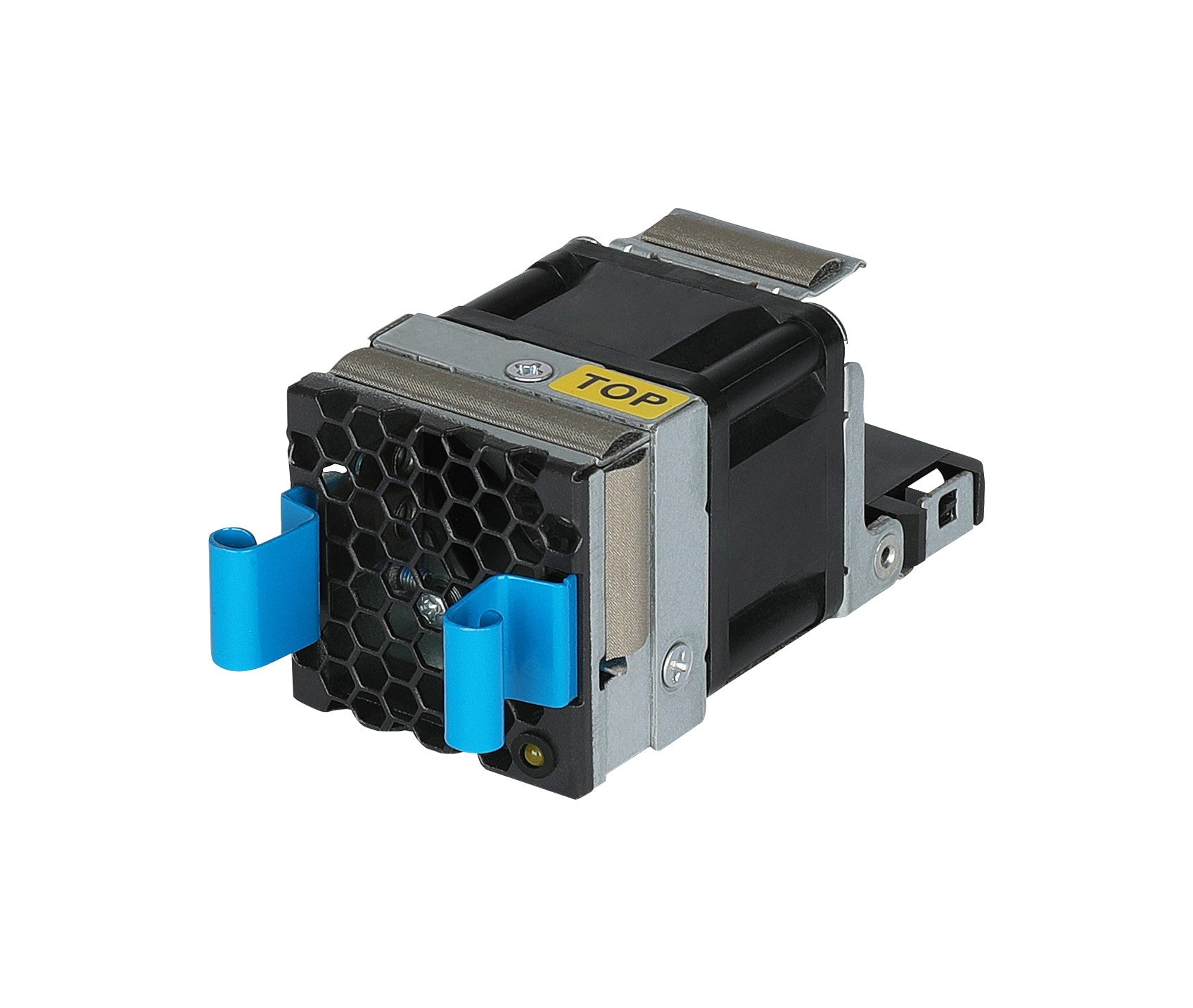

• HPE JL837A hot-swappable fan module for 5944 series, front-to-back airflow
1 1

Aruba

Aruba JL837A | 5944 Fan Module, Port-to-Power Airflow, Hot-Swappable

JL837A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is the hot-swappable fan module for the 5944 series data-centre top-of-rack switch (JL836A). It provides port-to-power, front-to-back airflow, suited to cold-aisle to hot-aisle deployments in enterprise aggregation, leaf and server-access layers. It serves as an initial or replacement fan tray for the switch.

The 5944 chassis has 5 fan tray slots, and fan trays are ordered separately for the switch. The module is powered by the host switch, so it has no separate power supply. The switch has a maximum draw of 233 W and requires at least one power supply. Variable-speed fans help reduce energy use, and hot-swappable trays support high availability.

This module is supported only on the 5944 48XGT 6QSFP28 switch (JL836A). It must be paired with front-to-back power supplies JL592A (450W AC) or JL688A (450W 48V DC). It cannot be mixed with JL838A Power-to-Port fan trays in the same chassis. The switch should not run with fewer than five fan trays for more than 24 hours.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable fan tray for high availability
- Port-to-Power (front-to-back) airflow for hot and cold aisle layouts
- Variable-speed fans reduce energy use
- Redundant fan trays with hot-pluggable power supplies improve reliability
- Powered by the host switch, no separate power connection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: JL837A
- Type: Hot-swappable fan tray
- Airflow direction: Port-to-Power (front-to-back)
- Supported switch: 48XGT 6QSFP28 5944 (JL836A)
- Fan tray slots per switch: 5
- Compatible power supplies: JL592A (450W AC), JL688A (450W 48V DC)
- Incompatible variant: JL838A Power-to-Port fan module
- Switch operating temperature: 0 to 45 C
- Switch operating humidity: 10% to 95%, non-condensing
- Switch acoustic level: 67 dB low speed, 71 dB high speed
- Switch power draw: 233 W maximum, 102 W idle

FAQs

Q: Which switch does the JL837A fan module fit?
A: It is supported only on the 5944 48XGT 6QSFP28 switch (JL836A).

Q: Which power supplies does it pair with?
A: It pairs with the front-to-back power supplies JL592A (450W AC) or JL688A (450W 48V DC).

Q: Can I mix it with Power-to-Port fan trays?
A: No. Fan trays cannot be mixed in the same switch enclosure. The JL838A Power-to-Port fan module is used with the JL593A back-to-front power supply instead.

Q: How many fan trays does the switch need?
A: The switch has 5 fan tray slots. It should not run with fewer than five fan trays for more than 24 hours, or without a fan tray for more than two minutes.

Q: Can the fan module be replaced while the switch is running?
A: Yes. The fan trays are hot-swappable, but a missing tray should be replaced quickly to maintain cooling.
