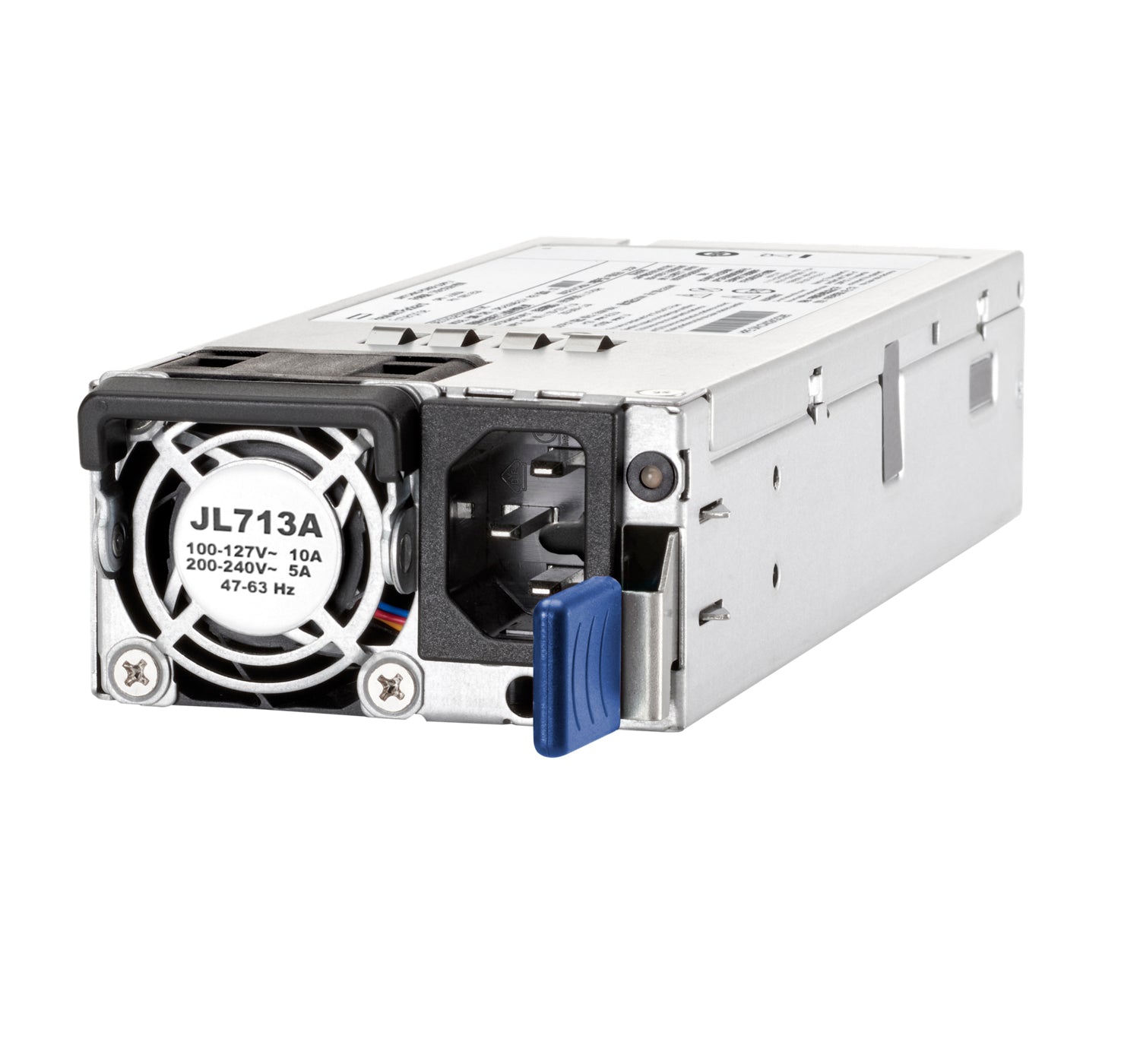

• HPE JL713A Silver hot-swap PSU with blue handle and black fan for CX 83xx
1 1

Aruba

Aruba JL713A#ABG | CX 8360 850W AC Power Supply, Power-to-Port Airflow

JL713A#ABG

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba X391 850W AC power supply is a hot-swappable, field-replaceable power module for the Aruba CX 8360 switch series. It suits data centre and top-of-rack deployments where airflow runs back-to-front, and is used as a replacement or as the second unit in a redundant pair.

The unit delivers 850 W of output power and accepts 100-127 VAC at up to 10 A or 200-240 VAC at up to 5 A, across a 47-63 Hz range, with automatic voltage adjustment. This variant has Power-to-Port airflow, identified by the blue release latch, and carries the #ABG Australia localisation code. The switch can run on a single active supply, and two supplies can be installed for 1+1 redundancy.

The 850 W supplies are listed by the manufacturer as applicable to the CX 8360-48Y6C. Airflow direction must match across the power supplies and fan trays installed in the chassis, so pair this unit with Power-to-Port fan trays such as the X742 JL715A. Do not mix it with Port-to-Power supplies such as the JL601A or JL600A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable and field-replaceable
- Supports 1+1 redundant power supply operation in the 8360 chassis
- Switch can operate on a single active power supply
- Colour-coded release latch identifies back-to-front airflow
- Auto-adjusting input across 100-127 VAC and 200-240 VAC
- Airflow direction must match the fan trays installed in the switch

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: JL713A (#ABG Australia localisation)
- Rated output power: 850 W
- Power type: AC
- Airflow: Power-to-Port (back-to-front)
- Release latch colour: Blue
- AC input voltage: 100-127 VAC and 200-240 VAC, auto-adjusting
- Maximum input current: 10 A at 100-127 VAC, 5 A at 200-240 VAC
- Frequency range: 47-63 Hz
- Hot-swappable: Yes, field-replaceable
- Switch compatibility: Aruba CX 8360-48Y6C
- Operating temperature: 0 to 45 C
- Operating relative humidity: 15% to 95% at 40 C, non-condensing
- Non-operating temperature: -40 to 70 C
- Maximum operating altitude: 3.0 km (10,000 ft)
- Dimensions (H x W x D): 1.6 in x 2.9 in x 9.7 in
- Installation: Indoor use only

FAQs

Q: Which switch is this power supply for?
A: It is an Aruba CX 8360 modular power supply. The 850 W units are listed by the manufacturer as applicable to the CX 8360-48Y6C.

Q: Which fan trays does it pair with?
A: It has Power-to-Port airflow, so it must be paired with Power-to-Port fan trays such as the X742 JL715A. Mixed airflow between power supplies and fans triggers a system alarm.

Q: Can I mix it with JL601A or JL600A power supplies?
A: No. JL601A (850 W) and JL600A (550 W) are Port-to-Power units. All power supplies and fan trays in the chassis must share the same airflow direction.

Q: What input voltage does it accept?
A: It accepts 100-127 VAC at up to 10 A or 200-240 VAC at up to 5 A, at 47-63 Hz, and adjusts automatically.

Q: Can the switch run on one power supply?
A: Yes. The switch can operate on one active power supply, and a second unit can be installed for 1+1 redundancy.

Q: What does the #ABG suffix mean?
A: #ABG is the Australia localisation code. The power supply itself is the same JL713A 850 W Power-to-Port unit.
