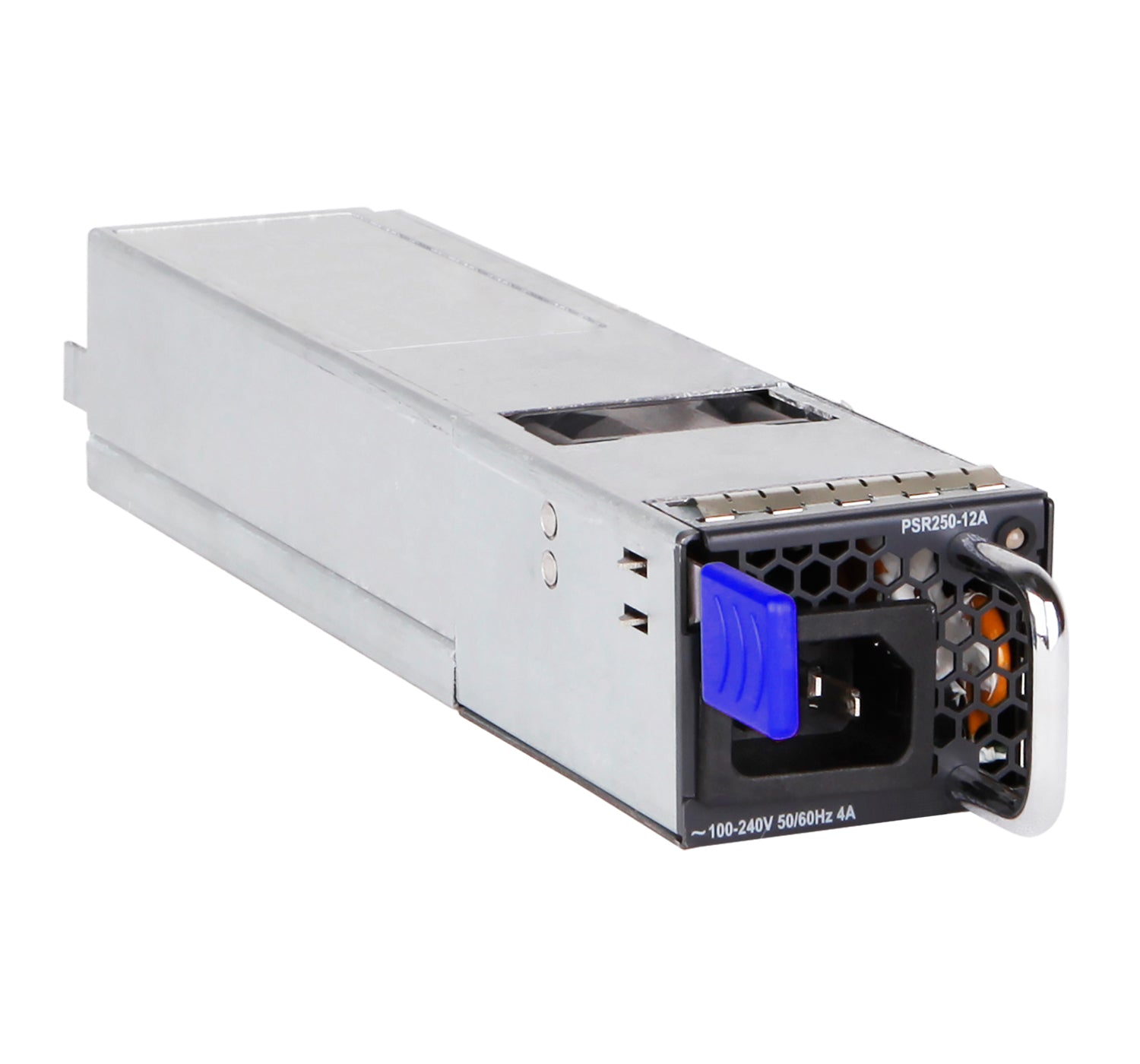

• HPE JL590A 5710 AC PSU 250W with blue connector and orange lights
1 1

Aruba

Aruba JL590A#ABG | CX 5710 250W AC Power Supply, Back-to-Front Airflow

JL590A#ABG

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 250W AC power supply is built for the Aruba CX 5710 data centre switch family, also sold as the HPE FlexFabric 5710 range. It is a hot-swappable internal unit with back-to-front airflow, suited to top-of-rack and spine-leaf deployments where the switch ports face the hot aisle.

The unit delivers up to 250W of output from a wide-range AC input of 100-240 VAC (maximum 264 VAC) at 50/60 Hz. Each 5710 switch has two power supply slots and needs at least one supply fitted. Fitting two same-type power supplies provides 1+1 redundancy. The #ABG suffix is the Australia/NZ localisation of base model JL590A, and this variant is back-to-front airflow with AC input.

It is compatible with the 5710 switch models JL585A, JL586A, JL587A and JL689A, as well as the TAA variants S3K83A to S3K86A. The power supply airflow direction must match the fan trays, so a back-to-front supply is paired with back-to-front fan trays. Do not mix it with front-to-back supplies such as JL589A. No licence is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable design allows non-disruptive replacement
- Supports 1+1 redundant power supply configuration
- Back-to-front airflow suits data centre hot/cold-aisle designs
- Wide-range AC input for use across regions
- Airflow direction must match the switch fan trays
- No licence required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Internal AC power supply, hot-swappable
- Maximum output power: 250 W
- AC input voltage: 100-240 VAC, maximum 264 VAC
- Input frequency: 50/60 Hz
- Airflow direction: Back-to-front
- Power supply slots per switch: 2, minimum 1 required
- Redundancy: 1+1 with two same-type power supplies
- Fan trays: four same-direction airflow fan trays required on the switch
- Localisation: Australia/NZ (#ABG)
- Environmental: RoHS compliant

FAQs

Q: Which switches does this power supply work with?
A: It works with the CX 5710 switch series, including JL585A, JL586A, JL587A and JL689A, as well as the TAA variants S3K83A to S3K86A.

Q: Do I need a second power supply for redundancy?
A: Yes. Each 5710 switch has two power supply slots, and 1+1 redundancy requires two same-type power supplies. A single supply is the minimum to run the switch.

Q: Can I mix this with front-to-back power supplies or fan trays?
A: No. The power supply airflow direction must match the fan trays, so back-to-front supplies are paired with back-to-front fan trays. Do not mix with front-to-back supplies such as JL589A.

Q: What does the #ABG suffix mean?
A: It denotes the Australia/NZ localisation of base model JL590A. The unit is the 250W back-to-front AC power supply for the 5710 range.

Q: Does this power supply need a licence?
A: No licence is required.
