HPE

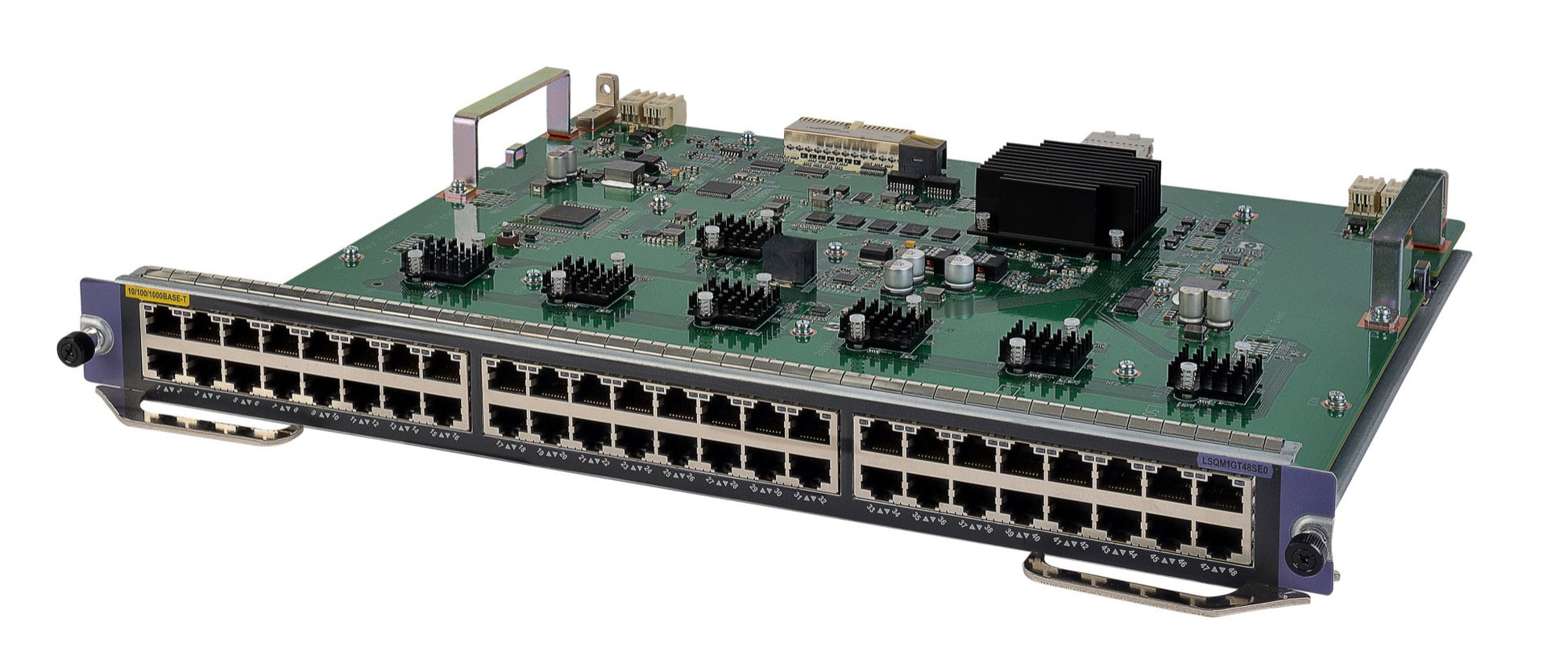

HPE JH212A | 48x 1G RJ45 | 1000BASE-T access line card | non‑PoE | for 7500 chassis

SKU:JH212A

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 48-port 10/100/1000BASE-T line card for 7500 chassis, delivering cost-effective copper access for campus and aggregation environments. Designed for line-rate performance and simplified copper cabling using RJ45 interfaces.

Features

- High-density 48x 1G copper access
- Line-rate switching with low latency
- Auto-negotiation and auto MDI/MDIX for easy deployment
- Hot-swappable module for minimal downtime
- Rich L2/L3 features via Comware on 7500 chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this module provide PoE?
A: No, it is a non-PoE 48-port 1G RJ45 line card.

Q: Which cables should I use?
A: Use Cat5e or better for 1G links up to 100 meters per IEEE 802.3 standards.

Q: Is it hot-swappable?
A: Yes, it supports online insertion and removal when the chassis is prepared for maintenance.

Q: What software features are available?
A: Features such as VLANs, QoS, and ACLs are provided by the Comware OS on the chassis.

Q: Which chassis is supported?
A: Designed for HPE 7500 Series chassis; confirm slot compatibility per the hardware guide.

Technical Specifications

- Port density: 48x 10/100/1000BASE-T (RJ45)
- PoE: Not supported (non-PoE model)
- Auto-negotiation: 10/100/1000 Mbps with auto MDI/MDIX
- Forwarding: Line-rate L2/L3 (subject to chassis/fabric capacity)
- Hot-swappable: Yes
- Compatibility: HPE 7500 Series chassis
- Jumbo frames: Supported (chassis dependent)
- Cable: Cat5e/6/6A twisted pair (distance per IEEE 802.3)
- Features: VLANs, QoS, ACLs, IGMP/MLD snooping (via Comware)
- Use cases: High-density copper access in campus/distribution
