HPE

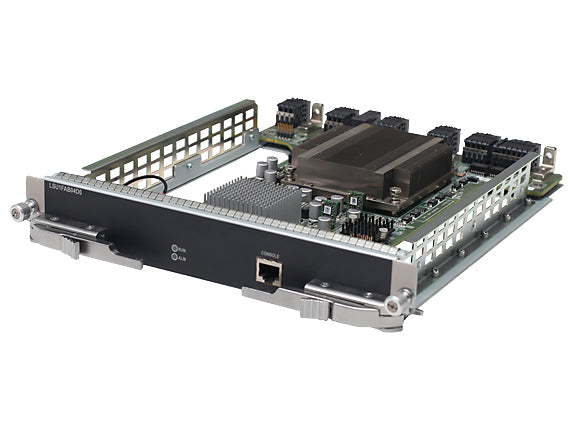

HPE JC752A | 10504 chassis | Type D fabric module | 1.2 Tbps switching fabric | hot-swappable | redundant fabric capable

SKU:JC752A

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-capacity Type D fabric module purpose-built for the 10504 modular chassis. Delivers 1.2 Tbps of switching fabric to drive non-blocking performance across installed I/O modules, with support for N+1 redundancy when multiple fabric modules are populated. Hot-swappable design streamlines maintenance and minimizes downtime.

Features

- 1.2 Tbps crossbar fabric for high-performance switching
- Type D generation fabric for modern 10500 deployments
- Hot-swappable for service-friendly maintenance
- Supports N+1 redundancy when multiple fabrics are installed
- Optimized for non-blocking throughput across I/O modules
- Engineered for core/aggregation resilience in enterprise networks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Which chassis is this fabric module compatible with?
A: It is intended for the 10504 modular chassis. Always verify with the chassis release notes before deployment.

Q: Do I need more than one fabric module?
A: For high availability and maximum performance, populate multiple fabric modules to enable redundancy and increased fabric bandwidth.

Q: Is it hot-swappable?
A: Yes. The module supports hot-swapping to minimize service impact during maintenance.

Q: Does this affect line card performance?
A: Yes. The installed fabric modules determine available backplane bandwidth and help ensure non-blocking performance for compatible line cards.

Technical Specifications

- Module type: Switching fabric module
- Fabric generation: Type D
- Switching capacity: 1.2 Tbps
- Chassis compatibility: 10504
- Redundancy: Supported when multiple fabric modules are installed
- Hot-swap: Yes
- Role: Backplane crossbar fabric for modular line cards
- Throughput posture: Non-blocking architecture with appropriate line card combinations
- Operational use: Enterprise/campus core aggregation
- Cooling/power: Consumes chassis-provided resources (no external PSU)
