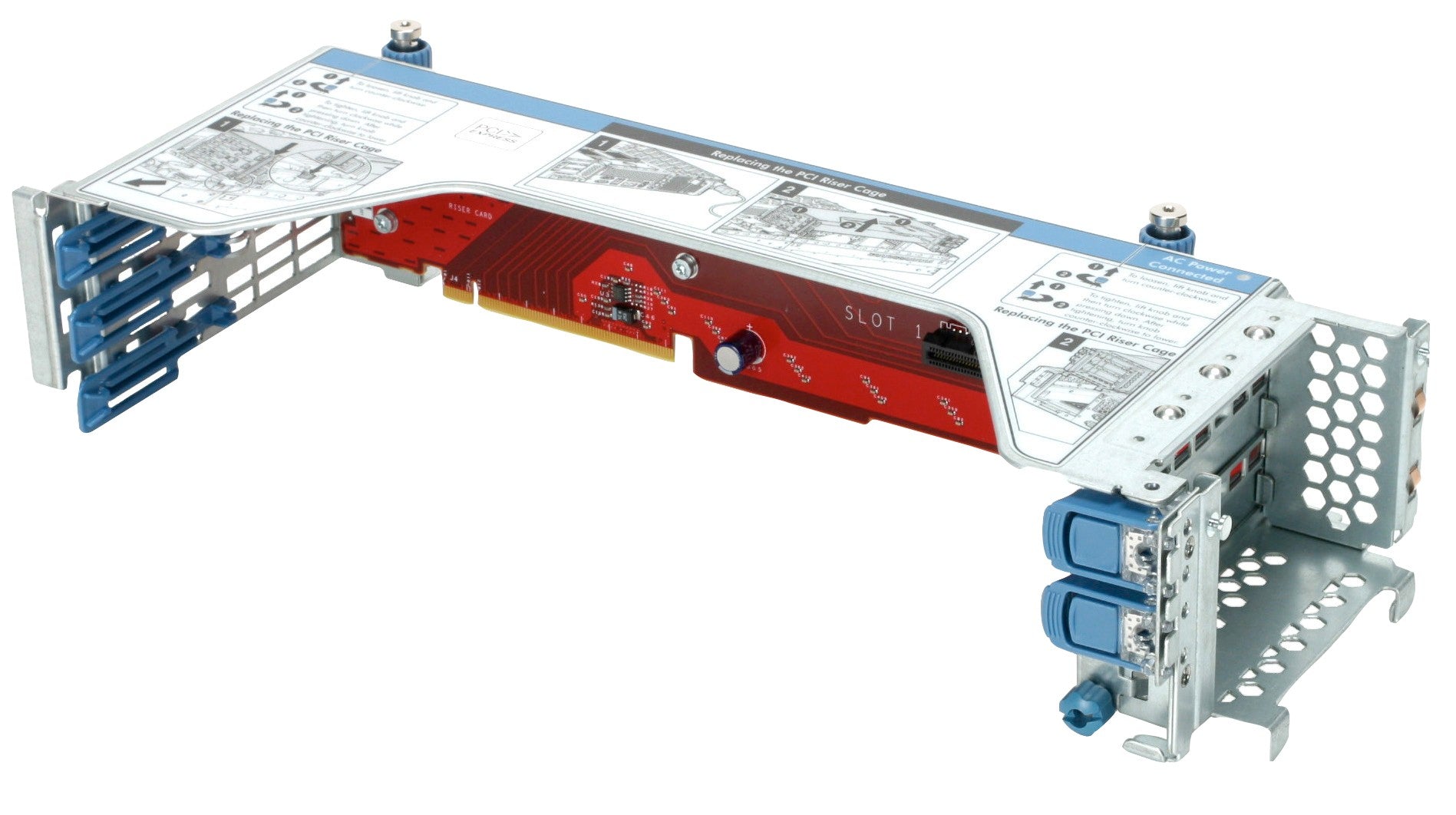

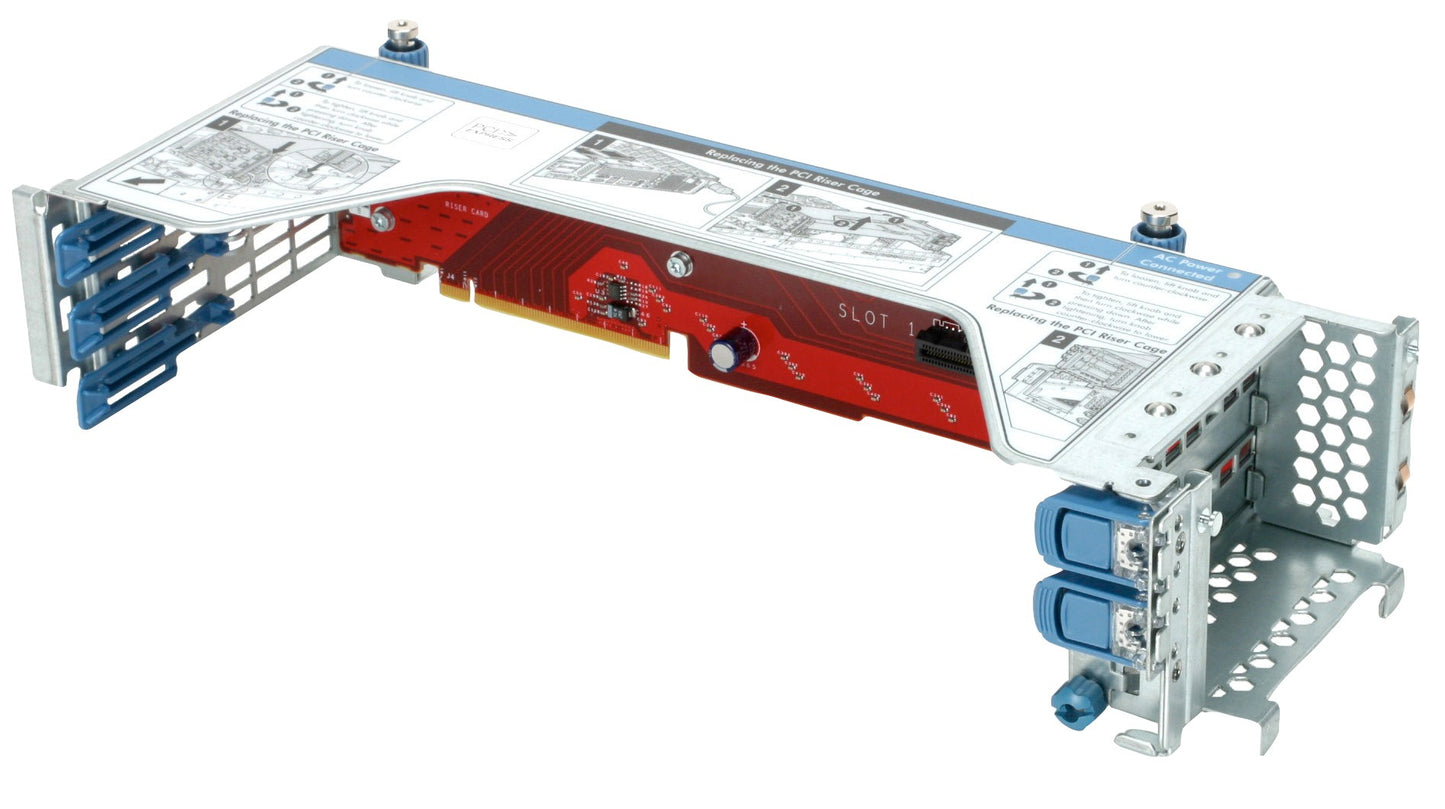

HPE 826694-B21 | PCIe Gen3 riser, 2x x16 slots (x16/x16), full-height support, GPU/NIC-ready, DL38X Gen10

SKU:826694-B21

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Dual-slot riser providing two PCIe Gen3 x16 interfaces for high-performance adapters in DL38X Gen10 servers. Ideal for GPUs, high-speed NICs, or HBAs/RAID controllers requiring full-bandwidth x16 slots. Some slot enablement may depend on CPU population—consult server QuickSpecs.

Features

- Two full-bandwidth PCIe Gen3 x16 slots for performance adapters
- Optimized lane routing for low latency and high throughput
- Supports full-height cards for broader option compatibility
- Validated mechanical fit and airflow for DL38X Gen10
- Scales I/O capacity for NICs, HBAs, and accelerators

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this riser PCIe Gen3 or Gen4?
A: It is designed for PCIe Gen3 as used in DL38X Gen10 platforms.

Q: Does it provide two full x16 electrical lanes?
A: Yes, it supports two x16 electrical lanes; availability can depend on CPU population and system configuration.

Q: Can I install a GPU?
A: Yes, many GPUs are supported; ensure adequate power cables, airflow, and server support per the QuickSpecs.

Q: Does it include auxiliary power cables?
A: No. Any required GPU or NIC auxiliary power cables are sold separately.

Q: Which servers are supported?
A: DL38X Gen10 family servers such as DL380/DL385 Gen10, subject to configuration guidance.

Technical Specifications

- Slot configuration: 2x PCIe x16 mechanical/x16 electrical
- PCIe standard: Gen3 (server CPU/platform dependent)
- Card form-factor support: Full-height; typical half-length clearance (chassis dependent)
- Use cases: GPUs/accelerators, 25/40/100GbE NICs, HBAs/RAID
- Installation location: DL38X Gen10 riser bay (per QuickSpecs)
- CPU dependency: Some slots may require a second CPU for full lane availability
- Cabling/power: Auxiliary power cables for GPUs/adapters may be required (sold separately)
- Compatibility: ProLiant DL38X Gen10 family (e.g., DL380/DL385 Gen10)
