Cisco

Cisco WS-X6716-10G-3CXL | 16x 10GbE X2, PoE: none, Uplinks: n/a, License: n/a, DFC3CXL; Optics: 10G X2 | SR 850nm 300m LC, LR 1310nm 10km LC, ER 1550nm 40km LC, CX4 15m

Cisco WS-X6716-10G-3CXL | 16x 10GbE X2, PoE: none, Uplinks: n/a, License: n/a, DFC3CXL; Optics: 10G X2 | SR 850nm 300m LC, LR 1310nm 10km LC, ER 1550nm 40km LC, CX4 15m

SKU:WS-X6716-10G-3CXL

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

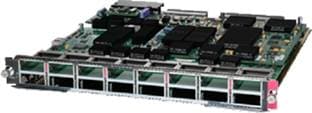

16-port 10GbE X2 optical line card with integrated DFC3CXL for distributed forwarding and XL-scale tables. Each port accepts X2 transceivers to match fiber type and distance, ideal for 10G aggregation or core roles in fabric-enabled 67xx chassis. Optics are sold separately.

Features

- 16-port 10GbE density using flexible X2 optics
- Integrated DFC3CXL for distributed forwarding with XL scale
- Supports diverse reach options via SR/LR/ER optics
- Wire-speed L2/L3 with compatible supervisors
- Per-port optic choice simplifies mixed-use deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What’s the difference between DFC3C and DFC3CXL on this module?
A: DFC3CXL provides XL-scale hardware tables (e.g., larger FIB/ACL/NetFlow capacities) compared to standard-scale DFC3C.

Q: Are X2 transceivers required?
A: Yes. Each port requires an appropriate X2 transceiver; choose SR, LR, ER, or other supported types for your distance and media.

Q: Is this compatible with all 67xx chassis slots?
A: Install in fabric-enabled 67xx slots; verify supervisor/PFC version compatibility with DFC3CXL in your platform release notes.

Q: Does it support PoE?
A: No. Optical 10GbE ports do not provide PoE.

Technical Specifications

- Ports: 16 x 10GbE (X2 transceiver slots)
- Transceiver form factor: X2 (optics sold separately)
- Supported optics (examples): SR 850 nm up to 300 m (LC), LR 1310 nm up to 10 km (LC), ER 1550 nm up to 40 km (LC), CX4 copper up to ~15 m
- Base standard: 10GBASE-X (per optic)
- PoE: Not supported
- Forwarding: Integrated DFC3CXL for distributed CEF (XL scale)
- Operation: Wire-speed L2/L3 forwarding (platform dependent)
- Chassis compatibility: 67xx-series fabric-enabled slots (e.g., 6500-class)
- Uplinks: Not applicable (line card)
- Connector: Depends on installed X2 optic (typically LC for fiber, CX4 for copper)
