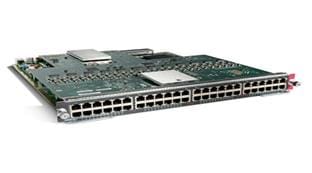

Cisco WS-X6148A-45AF | 48x 10/100 | PoE: 802.3af (45 ports) | uplinks: 0 | license: N/A

Cisco WS-X6148A-45AF | 48x 10/100 | PoE: 802.3af (45 ports) | uplinks: 0 | license: N/A

SKU:WS-X6148A-45AF

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

High-density Fast Ethernet PoE line card for Catalyst 6500 chassis, delivering 48x 10/100Base‑TX with IEEE 802.3af power on 45 ports. Ideal for powering IP phones, wireless APs, and other PoE endpoints in campus access layers. Features per-port QoS, VLAN tagging, and link aggregation; overall feature set and throughput are determined by the installed Supervisor and IOS software. Requires sufficient chassis power for PoE loads.

Features

- 48-port Fast Ethernet density for campus access layers
- 802.3af PoE on 45 ports for IP endpoints
- Flexible QoS and VLAN segmentation
- Link aggregation for uplink resiliency (via Supervisor)
- Operational simplicity with auto MDI/MDI-X and auto-negotiation
- Integration with Catalyst 6500 architecture and management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this module provide PoE on all 48 ports?
A: It supports IEEE 802.3af PoE on 45 of the 48 ports; 3 ports are non‑PoE. Available PoE power depends on the chassis power supplies.

Q: Is 802.3at (PoE+) supported?
A: No. This module supports IEEE 802.3af PoE only.

Q: Which chassis and supervisors are supported?
A: It is designed for Catalyst 6500 chassis. Feature support and slot compatibility depend on the installed Supervisor engine and IOS. Consult the Cisco compatibility matrix for your specific chassis/Supervisor.

Q: Are any licenses required?
A: No additional feature license is required for the line card itself; capabilities are governed by the Supervisor and software.

Technical Specifications

- Ports: 48 x 10/100Base-TX (RJ-45)
- PoE: IEEE 802.3af on 45 ports (up to 15.4W per PoE port; chassis PSU dependent)
- Auto-negotiation and auto MDI/MDI-X on all copper ports
- Layer 2 switching with 802.1Q VLAN, LACP/Port-Channel; advanced features depend on Supervisor/IOS
- QoS: 802.1p CoS, per-port rate limiting and queueing (Supervisor/IOS dependent)
- Platform: Catalyst 6500 chassis slots (check slot/fabric compatibility with your Supervisor)
- Management: SNMP, RMON, SPAN/port mirroring (Supervisor/IOS dependent)
