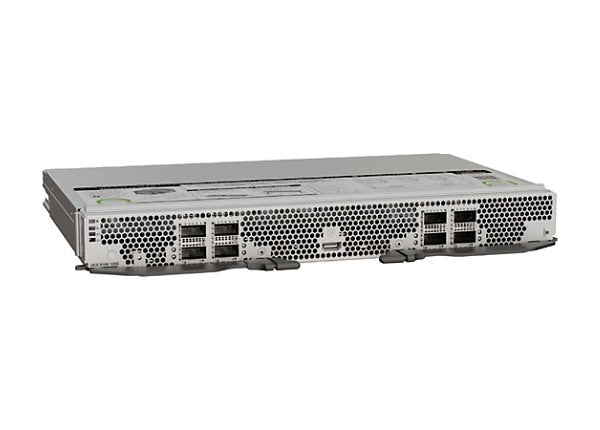

Cisco UCSX-S9108-100G | UCS X-Series Direct 9108 100G, 8x QSFP28 Fabric Interconnect

UCSX-S9108-100G

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS X-Series Direct Fabric Interconnect 9108 100G installs in the rear I/O slots of a UCS X9508 chassis and lets edge, remote and branch sites connect straight to top-of-rack switches without separate external fabric interconnects. It suits small data centres running HCI, virtual server infrastructure and VDI workloads, and customers migrating from UCS Mini to UCS X-Series Direct.

Each module provides 8 x QSFP28 external ports, made up of 6 x 40/100GbE ports and 2 unified ports that handle 40/100GbE or Fibre Channel breakout. The network data path is 1.6 Tbps, and the server data path is also 1.6 Tbps across 8 compute nodes, at 1x100G or 4x25G per node. Ethernet runs at 1/10/25/40/100 Gbps and Fibre Channel at 8/16/32 Gbps in end-host or switch mode, with up to 8 appliance ports and latency under 1 microsecond. The perpetual UCSX-S9108-SW licence is included and activates all ports and software features.

It works with QSFP28 100G optics such as QSFP-100G-SR4-S and QSFP-100G-LR4-S, QSFP-100G copper and AOC cables, and 40G QSFP optics. Management is through Cisco Intersight or UCS Manager 4.3(4b) or later. Power is drawn from the chassis, with a consumption of 237 W.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Direct connection to top-of-rack switches, reducing CapEx for small data centres and edge sites
- Unified fabric carrying Ethernet, FCoE and Fibre Channel on one transport
- Lossless fabric with Priority Flow Control and system-wide QoS bandwidth management
- Managed by Cisco Intersight (SaaS or appliance) or Cisco UCS Manager
- Expands to a second X9508 chassis and up to 4 C-Series rack servers, for up to 20 compute nodes in total
- Supports X210c M6/M7/M8, X410c M7 and X215c M8 compute nodes, plus X440p/X580p PCIe nodes and UCS 9416/9516 X-Fabric modules
- All QSFP ports can be configured as uplink, appliance, FCoE or FC (unified ports 1-2) ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form: Fabric interconnect module for the UCS X9508 chassis
- External ports: 8 x QSFP28 (6 x 40/100GbE plus 2 unified ports for 40/100GbE or FC breakout)
- Network data path: 1.6 Tbps (8x 100 Gbps per module)
- Server data path: 1.6 Tbps for 8 compute nodes (1x 100 Gbps or 4x 25 Gbps per node per FI)
- Ethernet speeds: 1, 10, 25, 40, 100 Gbps
- Fibre Channel speeds: 8, 16, 32 Gbps
- Fibre Channel mode: End-host and switch mode
- Fibre Channel ports: Up to 8x 32 Gbps through breakout cables
- Unified ports: 2 (ports 1-2)
- Ethernet uplink ports: Up to 8x 100 Gbps
- Appliance ports: Up to 8
- CPU complex: Intel Denverton, 8 core, 2.2 GHz
- Memory: DDR4, 16 GB maximum at 2133 MHz
- Latency: Less than 1 microsecond
- Fans: 3 dual-rotor on-board fans, front-to-rear airflow, powered from 54/48 VDC
- Power supply: Supplied by chassis
- Power consumption: 237 W
- Management: Cisco Intersight, UCS Manager 4.3(4b) or later, Intersight Managed Mode 4.3(4) or later
- Dimensions (H x W x D): 1.67 x 14.93 x 11.76 in (4.2 x 37.9 x 29.9 cm)
- Weight: 8.42 lb (3.82 kg)
- Operating temperature: 10 to 35 C (50 to 95 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity (non-condensing): 5 to 95%
- Altitude: 0 to 4000 m (0 to 13,123 ft)

FAQs

Q: Does it need a separate software licence?
A: No. The perpetual UCSX-S9108-SW licence is included with this part and activates all ports and software features. Management through Cisco Intersight or UCS Manager is required, and Intersight needs its own licence tier.

Q: How is it powered?
A: It is powered by the UCS X9508 chassis and has no separate power supply. Power consumption is 237 W, and the on-board fans run from 54/48 VDC.

Q: Which chassis and software does it work with?
A: It installs in the UCS X9508 chassis, and two fabric interconnects are required for production use. It needs UCS Manager 4.3(4b) or later, or Intersight Managed Mode 4.3(4) or later.

Q: Which optics and cables does it support?
A: It supports QSFP28 100G optics including QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-100G-SR-BiDi, QSFP-100G-CWDM4-Lite, QSFP-100G-SL4, QSFP-100G-DR-S, QSFP-100G-FR-S and QSFP-100G-SR1.2. It also supports QSFP-100G copper and AOC cables and 40G QSFP optics.

Q: Can it carry Fibre Channel traffic?
A: Yes. The 2 unified ports (ports 1-2) support Fibre Channel breakout at 8/16/32 Gbps, giving up to 8 x 32G FC ports through breakout cables. It runs in end-host or switch mode.
