Cisco

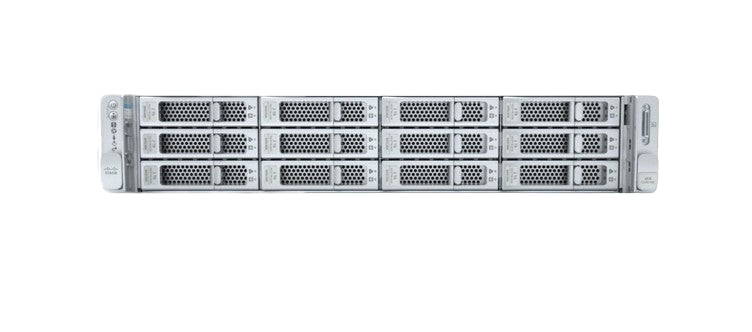

Cisco UCSC-C240-M6L-CH | 2U rack, dual Xeon Scalable Gen3, 12-bay LFF (3.5in) SAS/SATA, Intel C621A, 32 DIMM slots up to multi‑TB, PCIe Gen4

SKU:UCSC-C240-M6L-CH

Regular price POA
POA
POA
Sale Sold out
Shipping calculated at checkout.

Description

Enterprise 2U LFF chassis based on Intel C621A, designed for large-capacity storage builds and modern virtualization stacks. Ships without CPUs, memory, or drives, allowing flexible configuration to workload requirements.

Features

- Large-capacity LFF storage in a compact 2U design
- Intel C621A platform with PCIe Gen4 expandability
- 32 DIMM slots for substantial memory scalability
- Tool-less hot-swap drive bays for fast service
- Flexible RAID/HBA and networking module choices
- Remote management for hands-off deployment and monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this a complete server?
A: No. It is a barebones chassis without CPU, memory, or drives.

Q: What storage is supported?
A: Up to 12 hot-swap 3.5-inch SAS/SATA drives; NVMe options depend on the installed backplane.

Q: Which processors are compatible?
A: 3rd Gen Intel Xeon Scalable CPUs in a dual-socket configuration.

Q: Does it include rails or a bezel?
A: These accessories are optional and may be ordered separately.

Q: What power supplies are included?
A: PSUs are not included; the chassis supports redundant hot-swap units.

Technical Specifications

- Form factor: 2U rack (LFF, grey chassis)
- Chipset: Intel C621A
- CPU: Dual-socket, 3rd Gen Intel Xeon Scalable support
- Memory: 32 DIMM slots; multi‑TB capacity with LRDIMM/Optane PMem (configuration-dependent)
- Drive bays: Up to 12 x 3.5in SAS/SATA (hot-swap)
- NVMe support: Select configurations/backplanes (optional)
- I/O: PCIe Gen4 expansion (slot count depends on risers)
- RAID/HBA: 12G SAS controller options (sold separately)
- Networking: Modular VIC/mLOM options (sold separately)
- Power: Dual hot‑swap redundant PSUs supported (sold separately)
