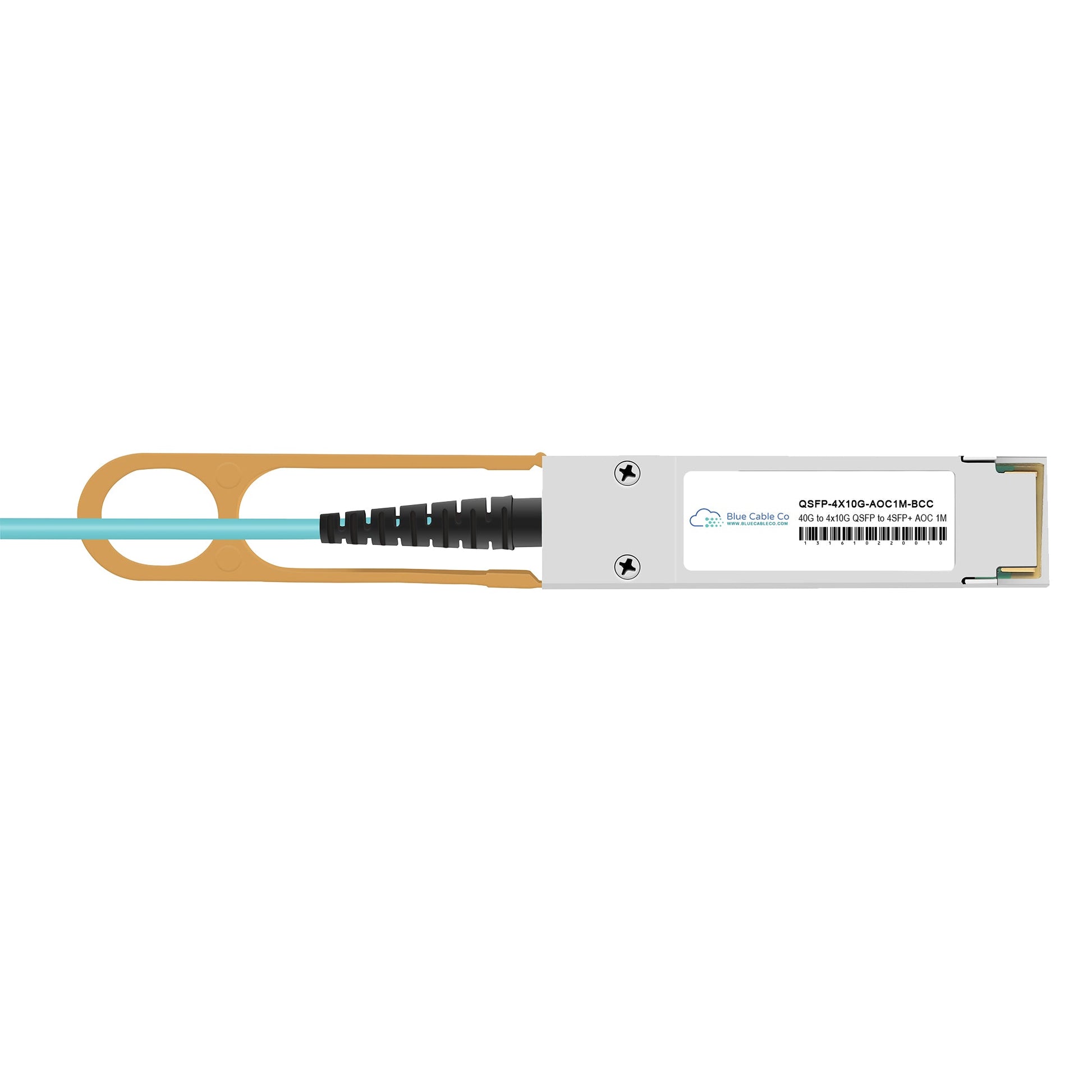

Cisco QSFP-4X10G-AOC1M | 40G QSFP+ to 4x 10G SFP+ AOC Breakout Cable, 1m, Beige
SKU:QSFP-4X10G-AOC1M
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a Cisco active optical breakout cable from the 40GBASE QSFP range. It has a single 40G QSFP+ connector at one end that splits into four 10G SFP+ connectors at the other, so one 40G port can feed four 10G SFP+ ports over a short run. It suits data centre, high-performance computing, enterprise core and distribution, and service provider networks.
The cable is 1 m long, and the breakout point sits 0.33 m from the 40G end. It has a beige pull tab and an orange PVC jacket. The QSFP end has a 3.5 mm cable diameter, a 60 mm bend radius and a 100 mm face plate distance. The SFP end has a 3 mm cable diameter, a 30 mm bend radius and an 80 mm face plate distance. The QSFP connector module measures 13.5 x 18.4 x 72.4 mm and weighs 100 g or less. Operating temperature is 0 to 70 C.
The electrical interface follows IEEE 802.3ba and the QSFP MSA with SFF-8436 and a 2-wire I2C interface. The cable is hot-swappable and tested on Cisco QSFP 40G ports. The SFP+ ends connect to 10G SFP+ ports, and the Cisco Optics-to-Device Compatibility Matrix lists the supported Cisco switches and routers.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Certified and tested on Cisco QSFP 40G ports
- High-speed electrical interface compliant with the IEEE 802.3ba standard
- QSFP form factor and 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- Active optical design with a single QSFP+ end splitting into four SFP+ ends
- Link bit error rate better than 1E-15
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: QSFP+ to 4x SFP+ active optical breakout cable
- Speed: 40G to 4x 10G
- Length: 1 m
- Pull tab colour: Beige
- Breakout location (from 40G end): 0.33 m
- QSFP connector module max dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- QSFP connector module weight: 100 g or less
- Cable diameter, QSFP end: 3.5 mm
- Bend radius, QSFP end: 60 mm
- Face plate distance, QSFP end: 100 mm
- Cable diameter, SFP end: 3 mm
- Bend radius, SFP end: 30 mm
- Face plate distance, SFP end: 80 mm
- Jacket material: PVC
- Jacket colour: Orange
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Electrical interface: IEEE 802.3ba, QSFP MSA / SFF-8436, 2-wire I2C
- Link BER: better than 1E-15
FAQs
Q: Does this cable need a licence or software subscription?
A: No. It is a passive-managed hardware cable and needs no licence or subscription.
Q: What ports does each end connect to?
A: The QSFP+ end plugs into a 40 Gigabit Ethernet QSFP port. Each of the four SFP+ ends plugs into a 10G SFP+ port.
Q: Which Cisco devices support this cable?
A: Cisco QSFP modules are supported on Cisco switches and routers, and the Cisco Optics-to-Device Compatibility Matrix lists the exact devices. The Cisco Nexus 3164Q datasheet lists QSFP-4x10G-AOC1M as a supported cable.
Q: How does this 1 m version differ from other lengths?
A: This SKU is the 1 m cable with a beige pull tab. The breakout point sits 0.33 m from the 40G end, leaving a short run to each of the four SFP+ connectors.
Q: Can it be hot-swapped?
A: Yes. It is a hot-swappable device, so it can be connected or removed while the switch is powered on.
