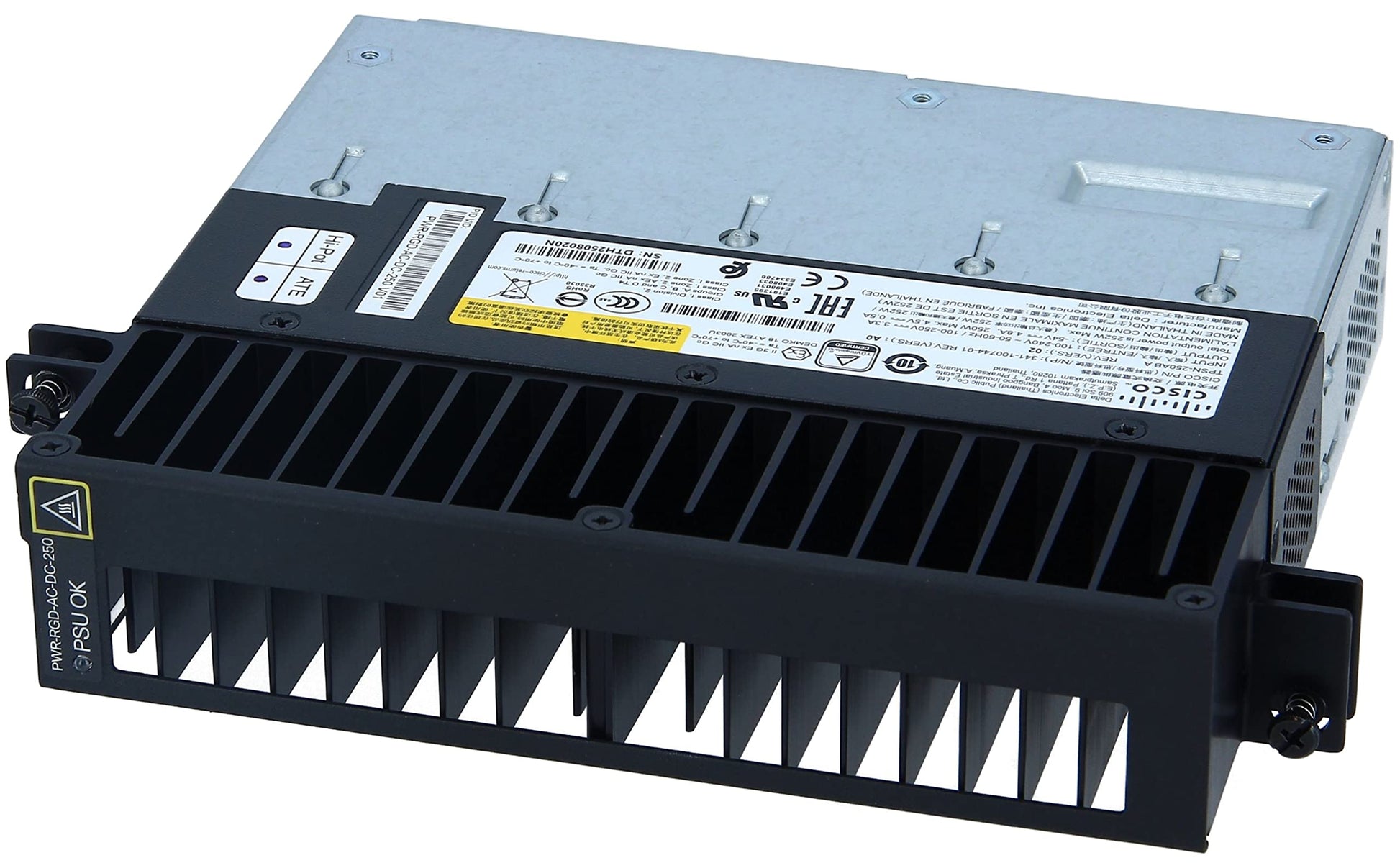

• Cisco PWR-RGD-AC-DC-IA industrial AC/DC PSU with black silver heatsink
  • Cisco PWR-RGD-AC-DC-IA industrial AC/DC PSU with black silver heatsink
1 2

Cisco

Cisco PWR-RGD-AC-DC-IA | IE 3010 AC/DC Power Supply, 150W, 85-264VAC

PWR-RGD-AC-DC-IA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-RGD-AC-DC/IA is a ruggedised 150 W AC/DC power supply module for the Cisco Industrial Ethernet 3010 (IE 3010) Series. It is built for industrial, utility and other harsh-environment installations that need AC or high-voltage DC input and redundant power feeds, and it suits the IE-3010-24TC and IE-3010-16S-8PC switches.

The module delivers a maximum output of 150 W and accepts a wide input range. Nominal input is 100 to 240 VAC at 50 to 60 Hz, or 100 to 250 VDC, with a short-term absolute maximum of 85 to 265 VAC or 88 to 300 VDC. This separates it from the PWR-RGD-LOW-DC/IA module, which is a 24-60 VDC low-voltage option. Input current is 2.2 to 0.7 A on AC and 2.5 to 0.6 A on DC, and it operates from -40 to 60 C.

Two modules can be installed in an IE 3010 switch for power redundancy. On the IE-3010-16S-8PC, PoE is supported on 4 ports with one module and on all 8 ports with two modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wide-range AC or DC input (85-265 VAC or 88-300 VDC) for industrial and utility power environments
- Supports dual power-supply installation for redundancy in IE 3010 switches
- Operates from -40 to 60 C for harsh industrial environments
- Powers PoE-capable IE-3010-16S-8PC models, with PoE on 4 ports using one module and 8 ports using two modules
- Mounting flange option for installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Maximum output power: 150 W
- Nominal input voltage: 100 to 240 VAC, 50 to 60 Hz; 100 to 250 VDC
- Absolute maximum (short term) input voltage: 85 to 265 VAC, 47 to 63 Hz; 88 to 300 VDC
- Input current: AC 2.2 to 0.7 A at 85 to 265 VAC; DC 2.5 to 0.6 A at 88 to 300 VDC
- Total input BTU: AC 638 BTU per hour; DC 750 BTU per hour
- Operating temperature: -40 to 60 C (-40 to 140 F)
- Storage temperature: -45 to 85 C (-49 to 185 F)
- Relative humidity: 5 to 95% (noncondensing)
- Altitude: up to 3049 m (10,000 ft)
- Weight: 1.15 kg (2.55 lb)
- Dimensions (H x W x D) without mounting flanges: 4 x 17.8 x 12.7 cm
- Dimensions (H x W x D) with mounting flanges: 4 x 20.7 x 12.7 cm
- IE-3010-24TC consumption, one module: AC 29.8 W at 115 V; DC 28.6 W at 125 VDC
- IE-3010-24TC consumption, two modules: AC 35.5 W at 115 V; DC 34.4 W at 125 VDC
- IE-3010-16S-8PC consumption, one module: AC 43.2 W; DC 40.3 W
- IE-3010-16S-8PC consumption, one module with PoE on 4 ports: AC 110.1 W; DC 109.8 W
- IE-3010-16S-8PC consumption, two modules with PoE on 8 ports: AC 184.1 W; DC 182.2 W

FAQs

Q: Which switches does this power supply work with?
A: It is for the Cisco IE 3010 Series, including the IE-3010-24TC and IE-3010-16S-8PC switches.

Q: Can I run two modules for redundancy?
A: Yes. Up to two modules can be installed in an IE 3010 switch to provide redundant power.

Q: What input voltage does it accept?
A: Nominal input is 100 to 240 VAC or 100 to 250 VDC, with a short-term absolute maximum of 85 to 265 VAC or 88 to 300 VDC.

Q: How does it differ from PWR-RGD-LOW-DC/IA?
A: This module takes AC or high-voltage DC input and delivers 150 W. PWR-RGD-LOW-DC/IA is the low-voltage alternative with a 24-60 VDC nominal input.

Q: Does it support PoE on the IE-3010-16S-8PC?
A: Yes. One module powers PoE on 4 ports and two modules power PoE on all 8 ports of the IE-3010-16S-8PC.
